P1NK205 Retro-Reflex Sensor for Transparent Objects
Kód EXIM-TECH P1NK205
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
P1NK205 Retro-Reflex Sensor for Transparent Objects
The retro-reflex sensor for clear glass recognition works with red light and a reflector. It has a IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensors (PNP/NPN, NC/NO, switching distance, error output), as well as for reading out switching statuses and signal values. The dynamic readjustment of the switching threshold function automatically adjusts this for contamination, aging or temperature deviations, meaning that these factors have almost no effect on functionality.
Kód produktu od výrobcu: P1NK205Kód EXIM-TECH P1NK205
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 196.90€ (242.19€ ) |
| 10+ | 183.48€ (220.17€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Optical Data | |
| Range | 3,500mm |
| Switching Hysteresis | <5% |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000h |
| Max. Ambient Light | 10,000Lux |
| Light Spot Diameter | see Table1 |
| Smallest Recognizable Part | see Table2 |
| Reference Reflector/Reflector Foil | RQ100BA |
| Clear Glass Recognition | yes |
| Polarization Filter | yes |
| Single-Lens Optic | yes |
| Reflector data | |
| RQ100BA | 0...3.5m |
| RE18040BA | 0...2.5m |
| RQ84BA | 0...3m |
| RR84BA | 0...3.5 |
| RE9538BA | 0...1.4m |
| RE6151BM | 0...2.8m |
| RR50_A | 0...2.5m |
| RE6040BA | 0...2.8m |
| RE8222BA | 0...1.6m |
| RR34_M | 0...1.8m |
| RE3220BM | 0...1.1m |
| RE6210BM | 0...0.8m |
| RR25_M | 0...1m |
| RR25KP | 0...0.5m |
| RR21_M | 0...0.7m |
| ZRAE02B01 | 0...1.5m |
| ZRME01B01 | 0...0.35m |
| ZRME03B01 | 0...1.5m |
| ZRMR02K01 | 0...1.5m |
| ZRMS02_01 | 0...0.7m |
| RF508 | 0...0.7m |
| RF258 | 0...0.7m |
| ZRDF__K01 | 0...2.2m |
| ZRDF10K01 | 0...2.4m |
| Z90R004 | 0...1.3m |
| Z90R005 | 0...1.5m |
| Z91R001 | 0...1.5m |
| Electrical Data | |
| Supply Voltage | 15...30V DC |
| Current Consumption (Ub = 24 V) | <20mA |
| Switching Frequency | 1,000Hz |
| Response Time | 0.5ms |
| Temperature Drift | <3% |
| Temperature Range | -40...60°C |
| Switching Output Voltage Drop | <2V |
| Residual Current Switching Output | <50µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Supply Voltage With IO-Link | 18...30V DC |
| Switching Output/Switching Current | 100mA |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Teach Mode | NT, MT |
| Switching Frequency (speed Mode) | 2,000Hz |
| Response Time (speed Mode) | 0.25ms |
| Data Storage | yes |

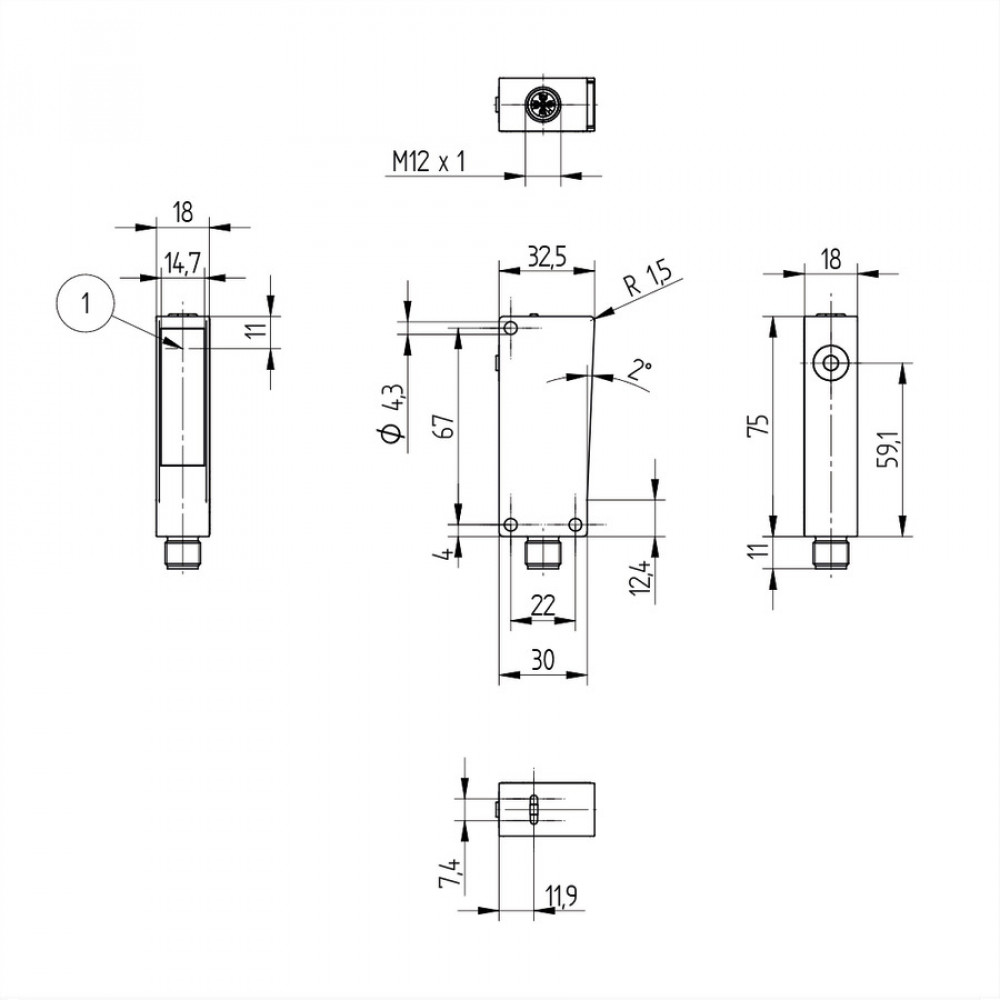

| Mechanical Data | |
| Setting Method | Teach-in/NFC |
| Housing Material | Plastic |
| Degree Of Protection | IP67/IP68 |
| Connection | M12 × 1; 4-pin |
| Optic Cover | PMMA |
| Safety-relevant Data | |
| MTTFd (EN ISO 13849-1) | 1,764.37a |
| Output | |
| IO-Link | yes |
| PNP NO | yes |
| NFC Interface | yes |
| Adjustable parameters | |
| Circuit | NC NO NC/NO |
| Output | Push-pull PNP Contamination Output |
| Other Parameters | Off-delay On-delay Mode of operation Hysteresis Switching point Emitted light |
