OKI403C0203 Retro-Reflex Sensor for Transparent Objects
Kód EXIM-TECH OKI403C0203
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF

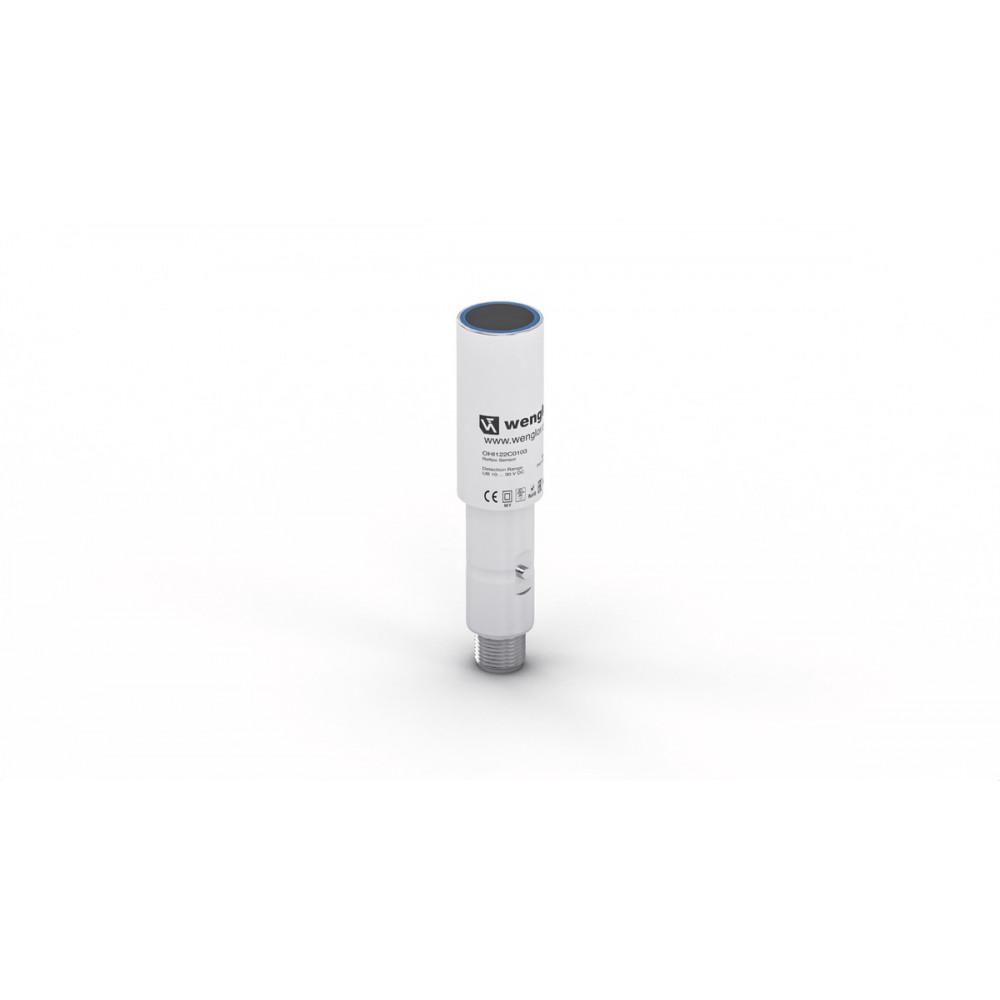

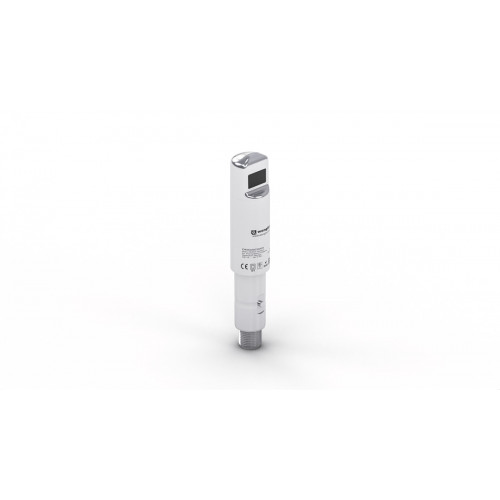

OKI403C0203 Retro-Reflex Sensor for Transparent Objects
InoxSens is the hygiene series from wenglor. The innovative design of InoxSens sensors allows contamination and cleaning agents to flow off by themselves. A variety of components form a complete system which integrates seamlessly into the machine. The laser welded stainless steel housing made of V4A (1.4404/316L) is corrosion-free and resistant to cleaning agents. Gap-free mounting with InoxLock and the captive optics further contribute to these sensors' optimal suitability for cleaning-heavy environments.The configuration of the InoxSens sensors are made through external teach-in.
Kód produktu od výrobcu: OKI403C0203Kód EXIM-TECH OKI403C0203
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 188.10€ (231.36€ ) |
| 10+ | 175.28€ (210.33€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Optical Data | |
| Opening Angle | 3° |
| Range | 4,000mm |
| Switching Hysteresis | <5% |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000h |
| Max. Ambient Light | 10,000Lux |
| Reference Reflector/Reflector Foil | RQ100BA |
| Clear Glass Recognition | yes |
| Polarization Filter | yes |
| Single-Lens Optic | yes |
| Reflector data | |
| RQ100BA | 0...4m |
| RE18040BA | 0...2.5m |
| RQ84BA | 0...3.5m |
| RR84BA | 0...4m |
| RE9538BA | 0...1.5m |
| RE6151BM | 0...3.4m |
| RR50_A | 0...2.6m |
| RE6040BA | 0...3.2m |
| RE8222BA | 0...1.9m |
| RR34_M | 0...1.6m |
| RE3220BM | 0...0.8m |
| RE6210BM | 0...0.7m |
| RR25_M | 0...1m |
| RR25KP | 0...0.55m |
| RR21_M | 0...0.9m |
| ZRAE02B01 | 0...1.6m |
| ZRME01B01 | 0...0.4m |
| ZRME03B01 | 0...1.6m |
| ZRMR02K01 | 0...0.5m |
| ZRMS02_01 | 0...0.7m |
| ZRDS01R01 | 0...0.7m |
| Z90R001 | 0...0.7m |
| Electrical Data | |
| Supply Voltage | 10...30V DC |
| Current Consumption (Ub = 24 V) | <40mA |
| Switching Frequency | 1,600Hz |
| Response Time | 313µs |
| Temperature Drift | <5% |
| Temperature Range | -10...60°C |
| Switching Output Voltage Drop | <2.5V |
| PNP Switching Output/Switching Current | 200mA |
| Residual Current Switching Output | <50µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Lockable | yes |
| Teach Mode | NT, MT, XT |
| On-/Off-Delay (RS-232) | 0...5s |
| Mechanical Data | |
| Setting Method | Teach-In |
| Housing Material | Stainless steel 316L |
| Degree Of Protection | IP68/IP69K |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Glass |
| Output | |
| PNP NC | yes |
| RS-232 With Adapterbox | yes |
| Adjustable parameters | |
| Circuit | NC NC/NO NO |
