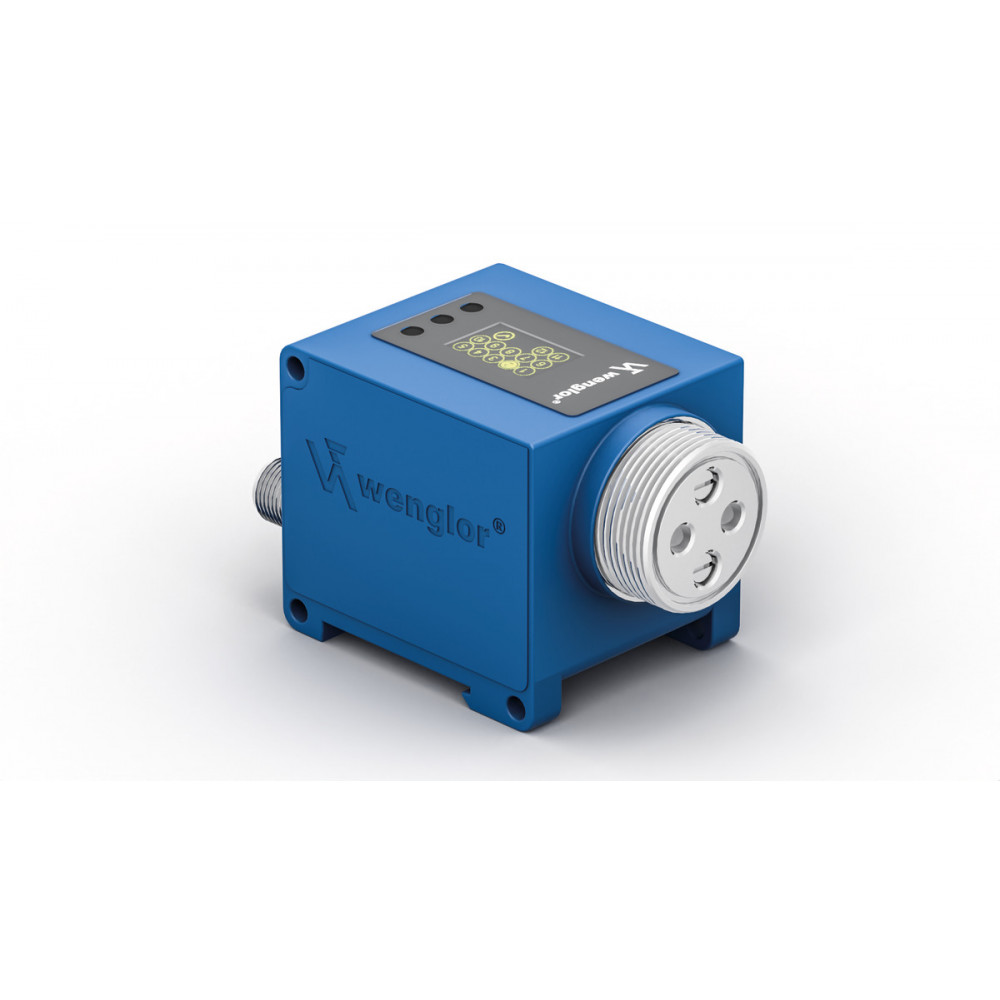

P1XF001 Color Sensor
Kód EXIM-TECH P1XF001
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
P1XF001 Color Sensor
The spectral composition of the colors of objects can be measured and metamerism effects can be compensated for with the 6-channel Multispectral Sensor. Innovative color chip technology divides the selected color spectrum into six spectral ranges (ROYGBV color space) with separately adjustable tolerance ranges. In combination with fiber-optic cables, the sensor adapts itself to the specific requirements of any given application and can be operated in the scanning as well as the through-beam mode. The P1XF001 is equipped with twelve switching outputs and integrated LED technology, which automatically ensures ideal adjustment of light intensity. Sensor settings can be selected directly at the graphical display (OLED), via the RS-232 port or via the IO-Link interface. This product has been discontinued. Click here to display similar products.
Kód produktu od výrobcu: P1XF001Kód EXIM-TECH P1XF001
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 773.30€ (951.16€ ) |
| 10+ | 720.58€ (864.69€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Optical Data | |
| Light Source | White Light |
| Service Life (T = +25 °C) | 50,000h |
| Max. Ambient Light | 10,000Lux |
| Spectral Sensitivity | 450...700nm |
| Electrical Data | |
| Supply Voltage | 10...30V DC |
| Current Consumption (Ub = 24 V) | ~260mA |
| Switching Frequency | 2kHz |
| Response Time | ~500 |
| Temperature Range | -25...60°C |
| Switching Output Voltage Drop | 1.5V |
| PNP Switching Output/Switching Current | 100mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Supply Voltage With IO-Link | 18...30V DC |
| Interface | IO-Link V1.1/RS-232 |
| On-/Off-Delay | 0...10,000ms |
| Number Of Switching Outputs | 12 |
| Teach Mode | FT |
| Number Of Digital Inputs | 3 |
| Mechanical Data | |
| Setting Method | Menu (OLED) |
| Housing Material | Plastic |
| Degree Of Protection | IP67 |
| Connection | M12 × 1; 4+8-pin |
| DIN-Rail Mounting | 35mm |
| Safety-relevant Data | |
| MTTFd (EN ISO 13849-1) | 345.43a |
| Function | |
| Selectable Menu Language | yes |
| Output | |
| IO-Link | yes |
| RS-232 Interface | yes |
| Error Output | yes |
| Contamination Output | yes |
| Push-Pull | yes |
| NO | yes |
| Adjustable parameters | |
| Circuit | NC NC/NO NO |
| Output | Push-pull NPN PNP Error Output Contamination Output |
| Other Parameters | Off-delay On-delay Teach mode |
