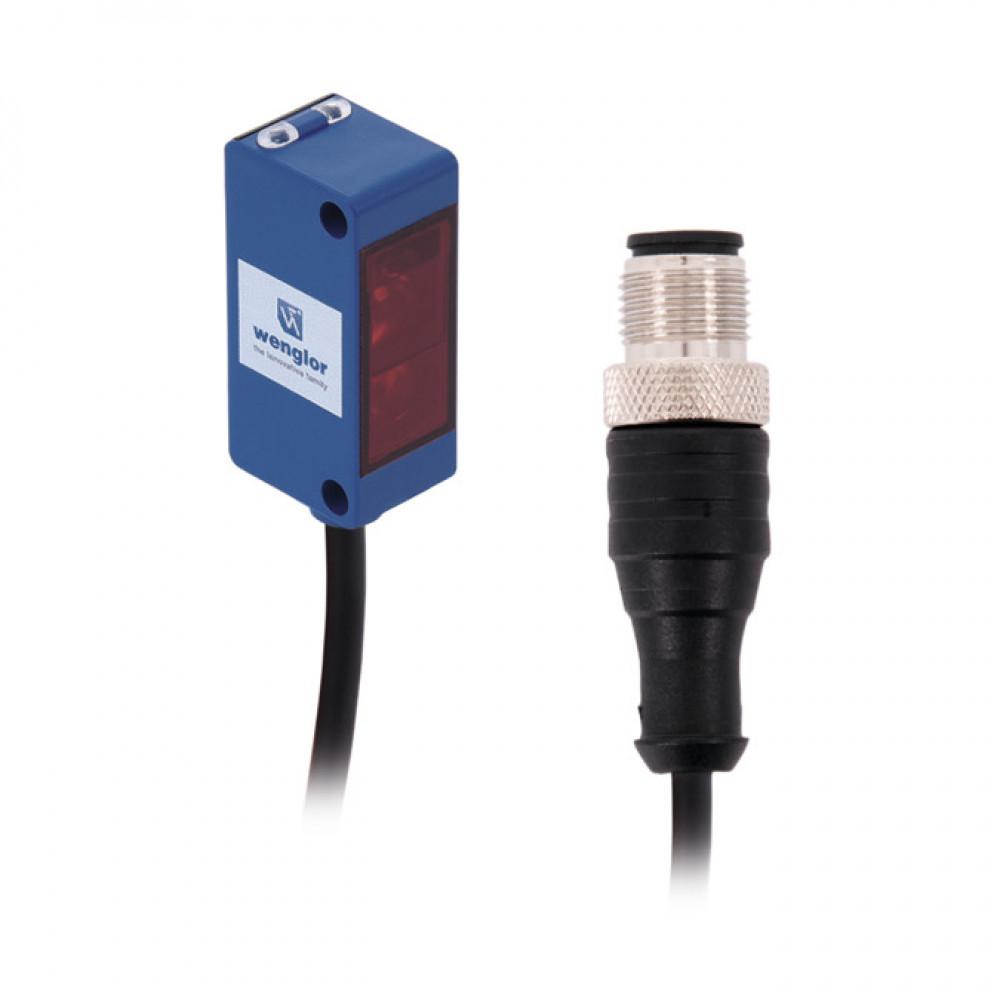

P1KL020 Retro-Reflex Sensor Universal
Kód EXIM-TECH P1KL020
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
P1KL020 Retro-Reflex Sensor Universal
The retro-reflex sensor works with red light and a reflector. It also reliably detects objects with reflective or glossy surfaces at high speeds. Thanks to its great range, the sensor can, for example, be used to manage feed and presence controls as well as to detect objects on wide feed belts. The IO-Link interface can be used to configure retro-reflective barriers (PNP/NPN, NC/NO, switching distance), as well as for reading out switching statuses and signal values.
Kód produktu od výrobcu: P1KL020Kód EXIM-TECH P1KL020
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
| 1+ | 140.80€ (168.96€ ) |
| 10+ | 128€ (153.60€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Optical Data | |
| Range | 5,000mm |
| Switching Hysteresis | <10% |
| Light Source | Red Light |
| Service Life (T = +25 °C) | 100,000h |
| Max. Ambient Light | 10,000Lux |
| Light Spot Diameter | see Table1 |
| Smallest Recognizable Part | see Table2 |
| Reference Reflector/Reflector Foil | RQ100BA |
| Polarization Filter | yes |
| Two-Lens Optic | yes |
| Reflector data | |
| RQ100BA | 0.01...5m |
| RE18040BA | 0.01...4.5m |
| RQ84BA | 0.01...4.5m |
| RR84BA | 0.01...4.5m |
| RE9538BA | 0.01...2m |
| RE6151BM | 0.01...3.5m |
| RR50_A | 0.01...3m |
| RE6040BA | 0.01...3.5m |
| RE8222BA | 0.01...2.5m |
| RR34_M | 0.01...0.6m |
| RE3220BM | 0.01...1.5m |
| RE6210BM | 0.01...1.5m |
| RR25_M | 0.01...1.3m |
| RR25KP | 0.01...0.8m |
| RR21_M | 0.01...1.1m |
| ZRAE02B01 | 0.01...2m |
| ZRME01B01 | 0.01...0.9m |
| ZRME03B01 | 0.01...1.6m |
| ZRMR02K01 | 0.01...1m |
| ZRMS02_01 | 0.01...1m |
| RF505 | 0.02...1.9m |
| RF508 | 0.02...1.7m |
| RF258 | 0.02...1.4m |
| ZRDF03K01 | 0.03...3m |
| ZRDF10K01 | 0.03...3.5m |
| Z90R004 | 0.15...1.65m |
| Z90R005 | 0.15...2.3m |
| Electrical Data | |
| Supply Voltage | 10...30V DC |
| Current Consumption (Ub = 24 V) | <20mA |
| Switching Frequency | 2,000Hz |
| Response Time | 0.25ms |
| Temperature Drift | <10% |
| Temperature Range | -40...60°C |
| Switching Output Voltage Drop | <2V |
| Residual Current Switching Output | <50µA |
| Reverse Polarity Protection | yes |
| Protection Class | III |
| Supply Voltage With IO-Link | 18...30V DC |
| Switching Output/Switching Current | 100mA |
| Short Circuit And Overload Protection | yes |
| Lockable | yes |
| Interface | IO-Link V1.1 |
| Switching Frequency (speed Mode) | 3,500Hz |
| Response Time (speed Mode) | 0.14ms |

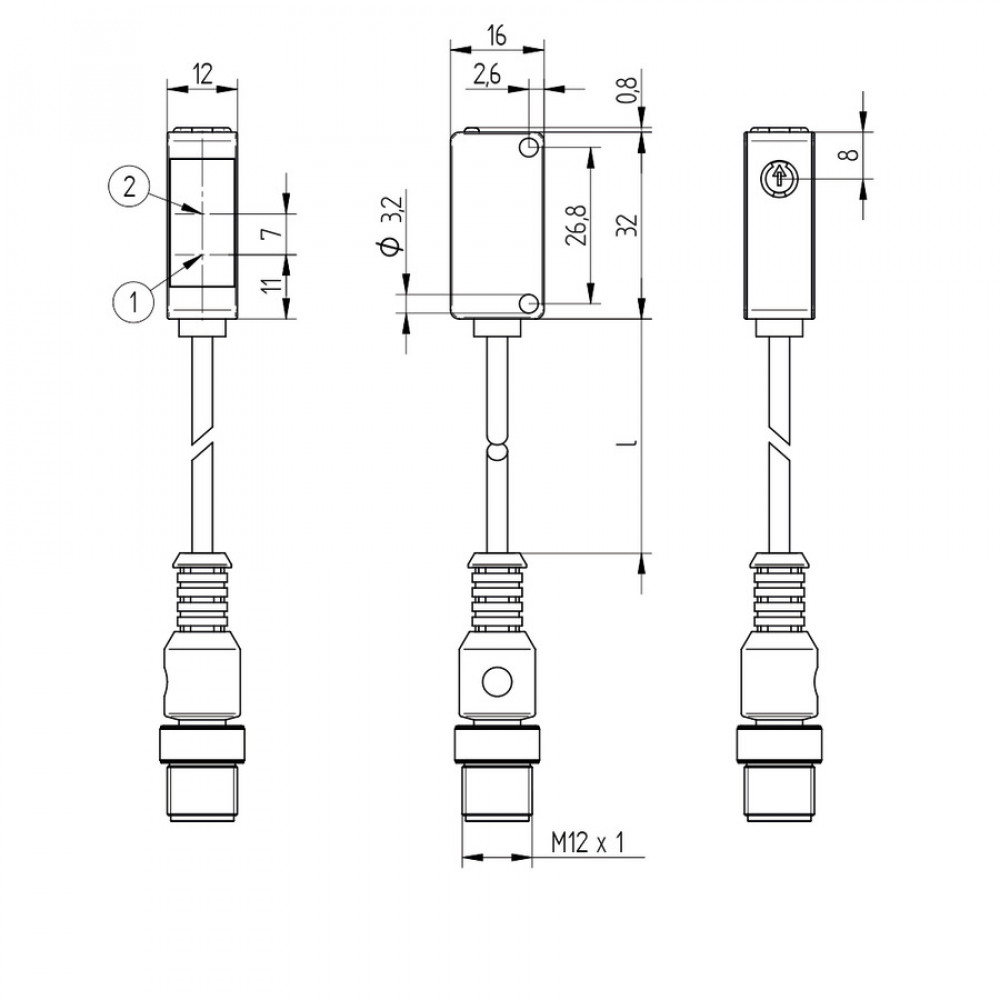

| Mechanical Data | |
| Setting Method | Potentiometer |
| Housing Material | Plastic |
| Degree Of Protection | IP67/IP68 |

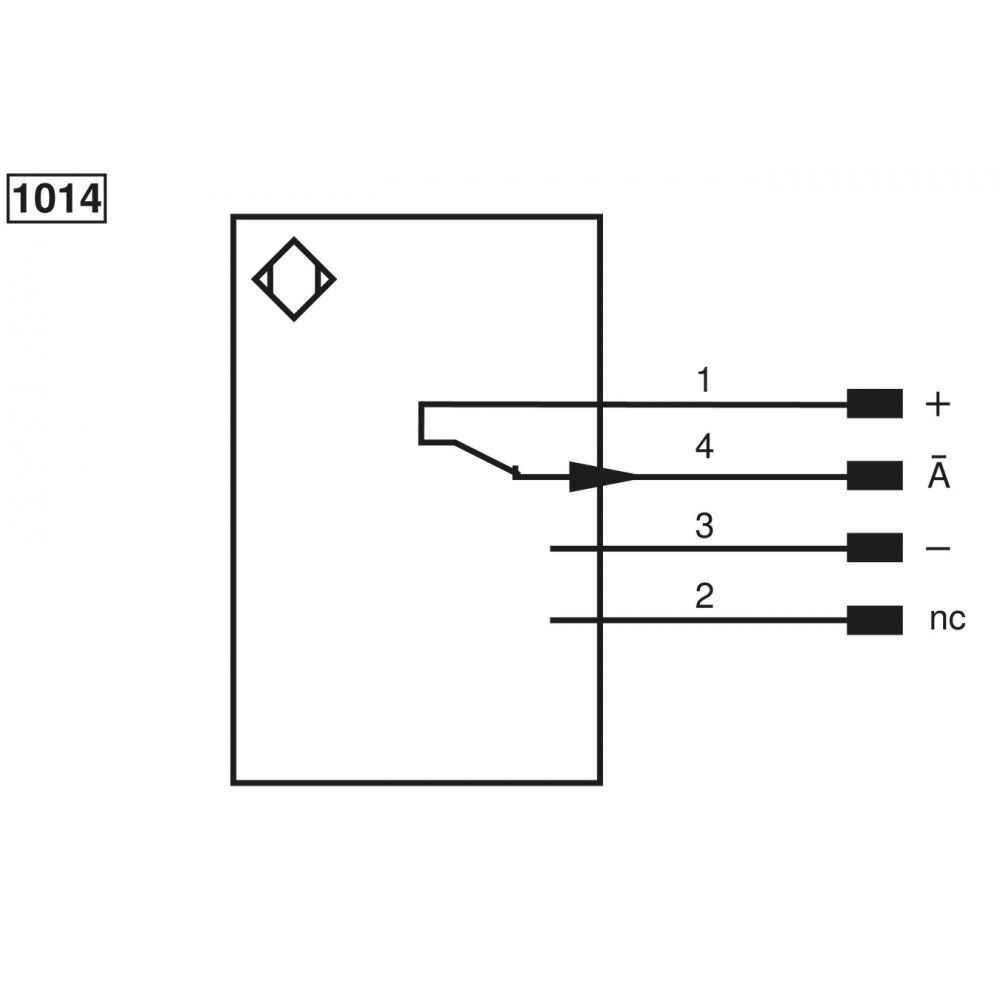

| Connection | M12 × 1; 4-pin |
| Cable Length | 100cm |
| Optic Cover | PMMA |
| Safety-relevant Data | |
| MTTFd (EN ISO 13849-1) | 2,808.97a |
| Output | |
| PNP NO/NC Antivalent | yes |
| IO-Link | yes |
| Adjustable parameters | |
| Circuit | NC NO Inactive Error output NC+NO |
| Output | Push-pull NPN PNP |
| Other Parameters | Off-delay On-delay Mode of operation Hysteresis Emitted light Switching point |
