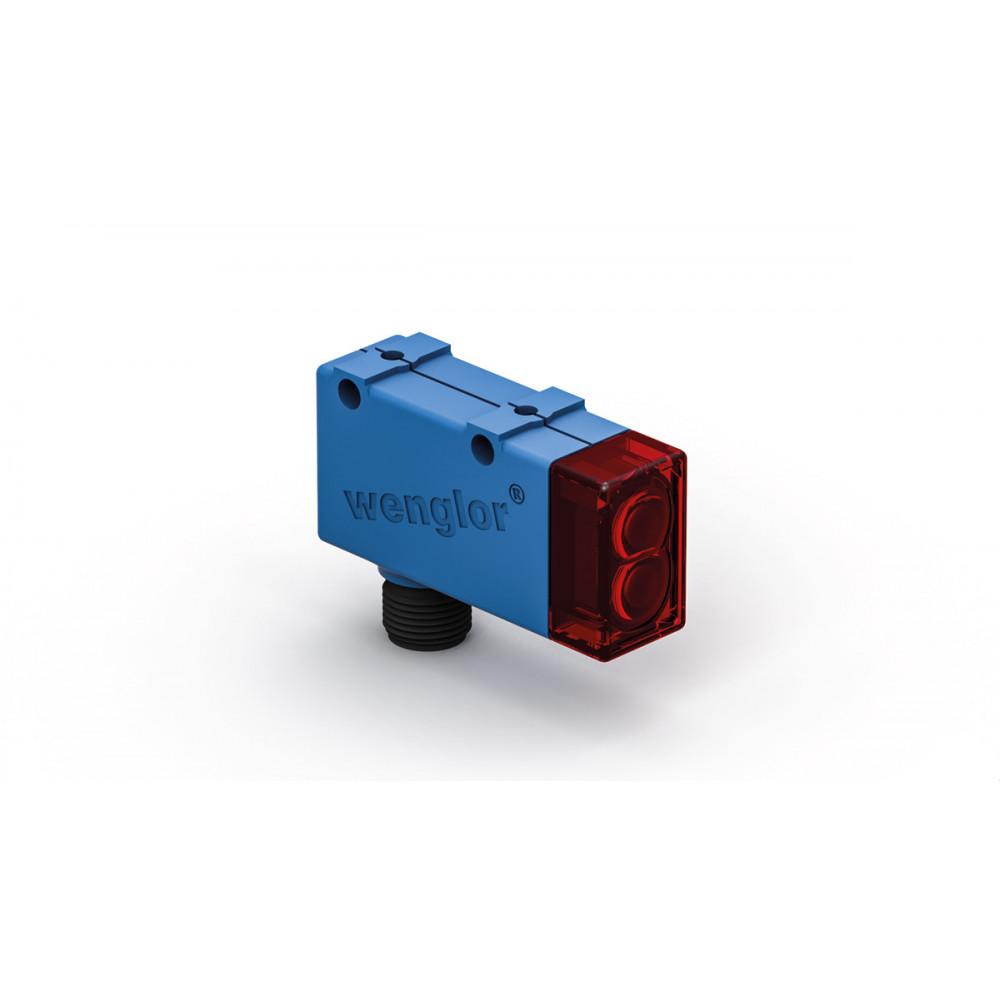

P1MM001 Reflex Light Barrier
Kód EXIM-TECH P1MM001
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
1+ | 190.30€ (228.36€ ) |
10+ | 173€ (207.60€ ) |
20+ | Na dopyt |
Pridaj k objednávke
Optical Data | |
Opening Angle | 3° |
Range | 500mm |
Switching Hysteresis | <5% |
Light Source | Red Light |
Service Life (T = +25 °C) | 100,000h |
Max. Ambient Light | 10,000Lux |
Light Spot Diameter | see Table1 |
Reference Background | Stainless Steel |
Reflector data | |
White (90 %) | 30...200mm |
Grey (18 %) | 30...150mm |
Black (6 %) | 30...100mm |
Stainless Steel | 30...500mm |
Electrical Data | |
Supply Voltage | 10...30V DC |
Current Consumption (Ub = 24 V) | <40mA |
Switching Frequency | 500Hz |
Response Time | 1ms |
Temperature Drift | <5% |
Temperature Range | -40...60°C |
Switching Output Voltage Drop | <2.5V |
PNP Switching Output/Switching Current | 200mA |
Residual Current Switching Output | <50µA |
Short Circuit Protection | yes |
Reverse Polarity Protection | yes |
Overload Protection | yes |
Protection Class | III |
Lockable | yes |
Teach Mode | HT |
Mechanical Data | |
Setting Method | Teach-In |
Housing Material | Plastic |
Full Encapsulation | yes |
Degree Of Protection | IP67 |
Connection | M12 × 1; 4-pin |
Output | |
PNP NC | yes |
Adjustable parameters | |
Circuit | NC NC/NO NO |
