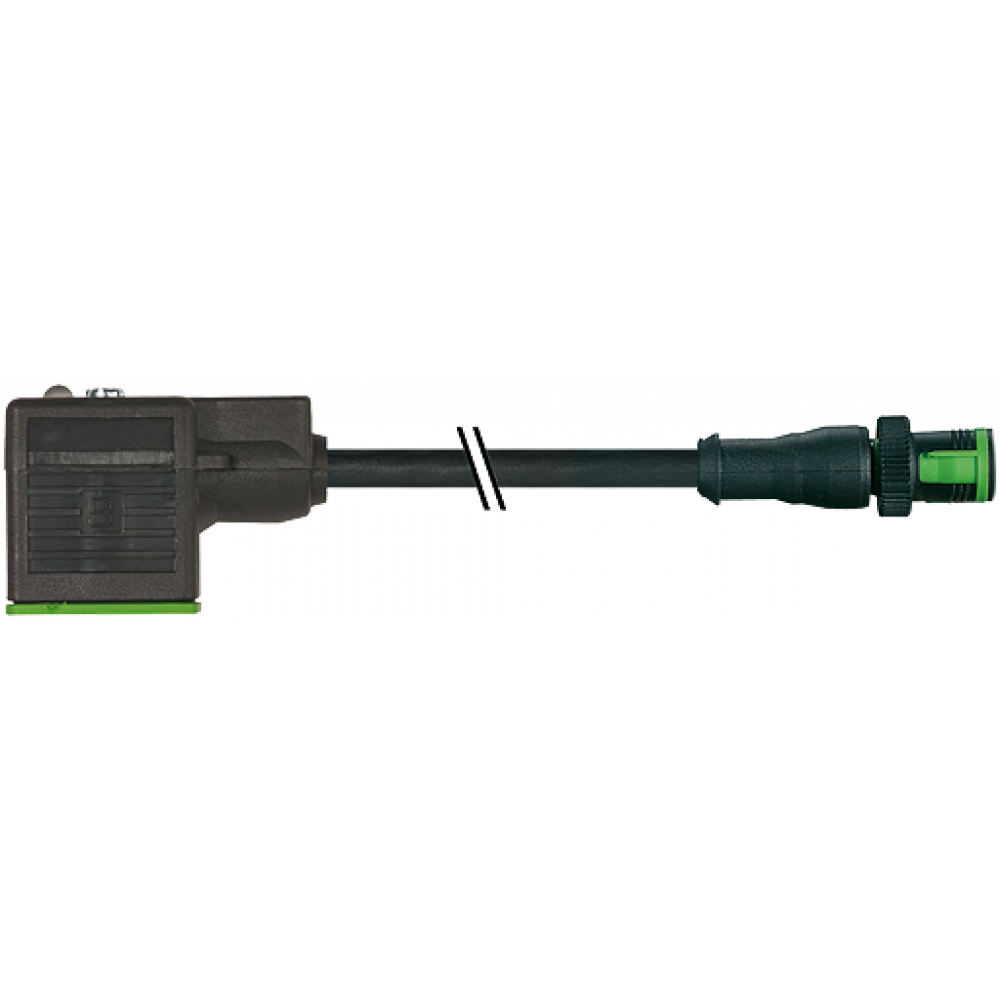

7050-40881-6160070 MQ12 male 0° / MSUD valve plug A-18mm
Kód EXIM-TECH 7050-40881-6160070
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7050-40881-6160070 MQ12 male 0° / MSUD valve plug A-18mm
PVC 3x0.75 bk 0.7m
Kód produktu od výrobcu: 7050-40881-6160070Kód EXIM-TECH 7050-40881-6160070
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 15.28€ (18.80€ ) |
| 10+ | 15.53€ (18.63€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
MSUD
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form A (18 mm)
Male straight
MQ12
24 V AC ±20% / DC ±25%
LED and suppression
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form A (18 mm)
Male straight
MQ12
24 V AC ±20% / DC ±25%
LED and suppression
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
| Technical Data | |
| Operating Voltage | 24 V AC ±20% / DC ±25% |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | MSUD - M3 (recommended torque 0.4 Nm); MQ12 - quick connection, 1/4 turn |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Housing | Black plastic (gray on request) |
| LED Display | yellow |
| Material Group | IEC 60664-1, category II |
| Rated Surge Voltage | 0.8 kV |
| Coding | M12, A-coded |
| Additional Suppressor | Z-Diode |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879460729 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 3× 0.75 mm² |
| Wire Isolation | PVC (bk num, gnye) |
| Outer Ø | 5.9 mm ±5% |
| Cable Identification | 616 |
| Cable Type | 1 (PVC) |
| Approval (cable) | CE conform |
| Cable Weight [g/m] | 61,60 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 3× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 43 ±5 D |
| Wire-Ø Incl. Isolation | 1.8 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Material (jacket) | PVC |
| Shore Hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 5.9 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | 300/500 V AC |
| Test Voltage | 3000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+70 °C |
| Temperature Range (mobile) | -5...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Stranding Combination | 3 wires twisted |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Form | |
| Form | 40881 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
