7072-77001-7540500 Valve plug MDC06-2s / MDC04-2p
Kód EXIM-TECH 7072-77001-7540500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Xtreme - Outdoor
Further cable lengths on request.

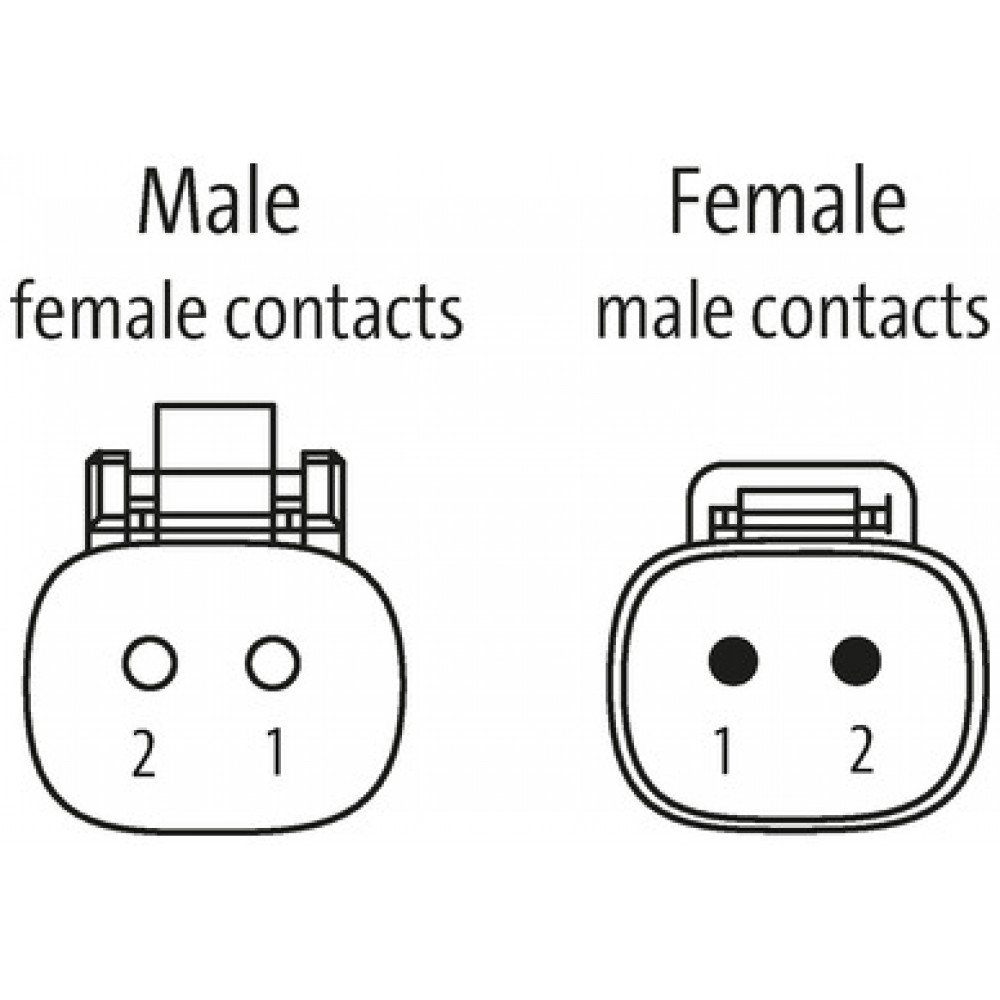

Male straight – female straight
6...230 V AC/DC
2-pole
without components
Compatible with:
Deutsch DT06-2S
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.

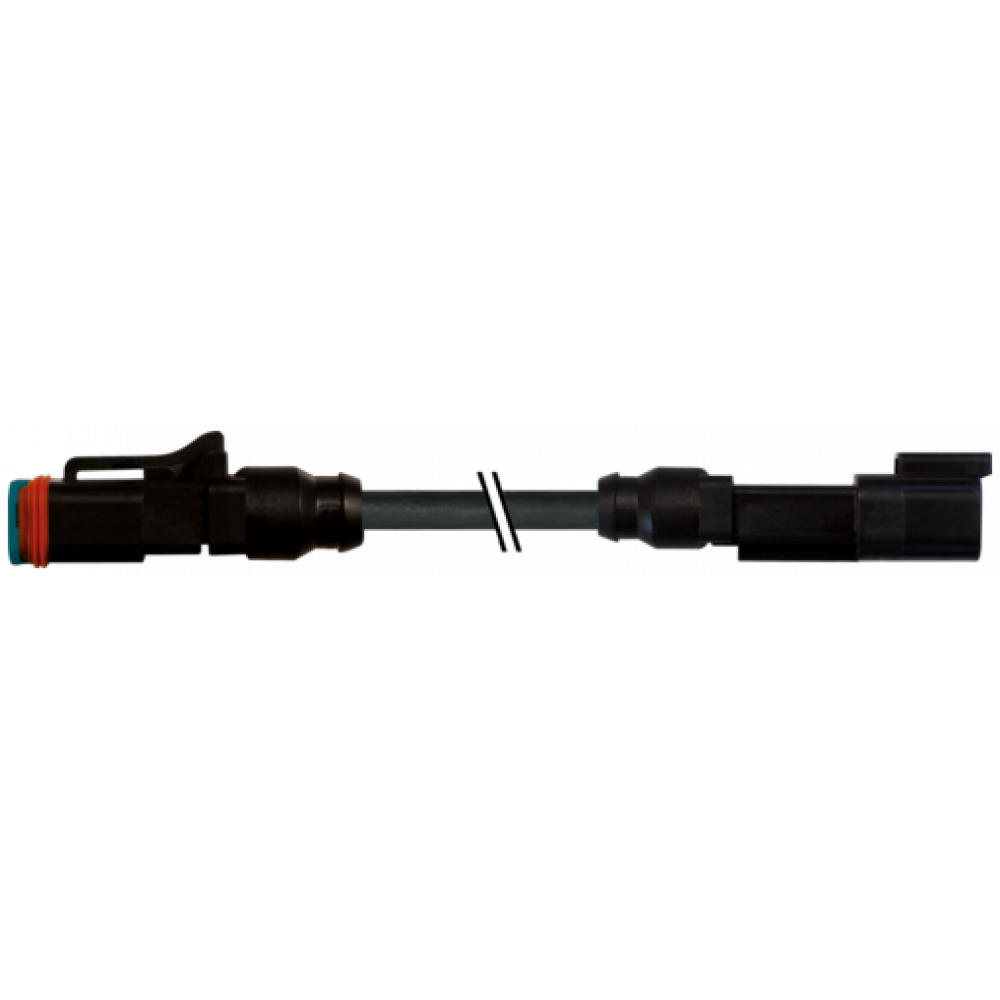

7072-77001-7540500 Valve plug MDC06-2s / MDC04-2p
PUR 2x0.75 bk UL/CSA+drag ch. 5.0m
Kód produktu od výrobcu: 7072-77001-7540500Kód EXIM-TECH 7072-77001-7540500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 34.07€ (41.91€ ) |
| 10+ | 34.28€ (41.14€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Xtreme - Outdoor
Further cable lengths on request.
Male straight – female straight
6...230 V AC/DC
2-pole
without components
Compatible with:
Deutsch DT06-2S
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| No. Of Poles | 2-pole |
| Operating Voltage | 6...230 V AC/DC |
| Material | PA |
| Operating Current Per Contact | max. 8 A |
| Locking Of Ports | Snap-in connector |
| Protection | IP68 inserted and tightened |

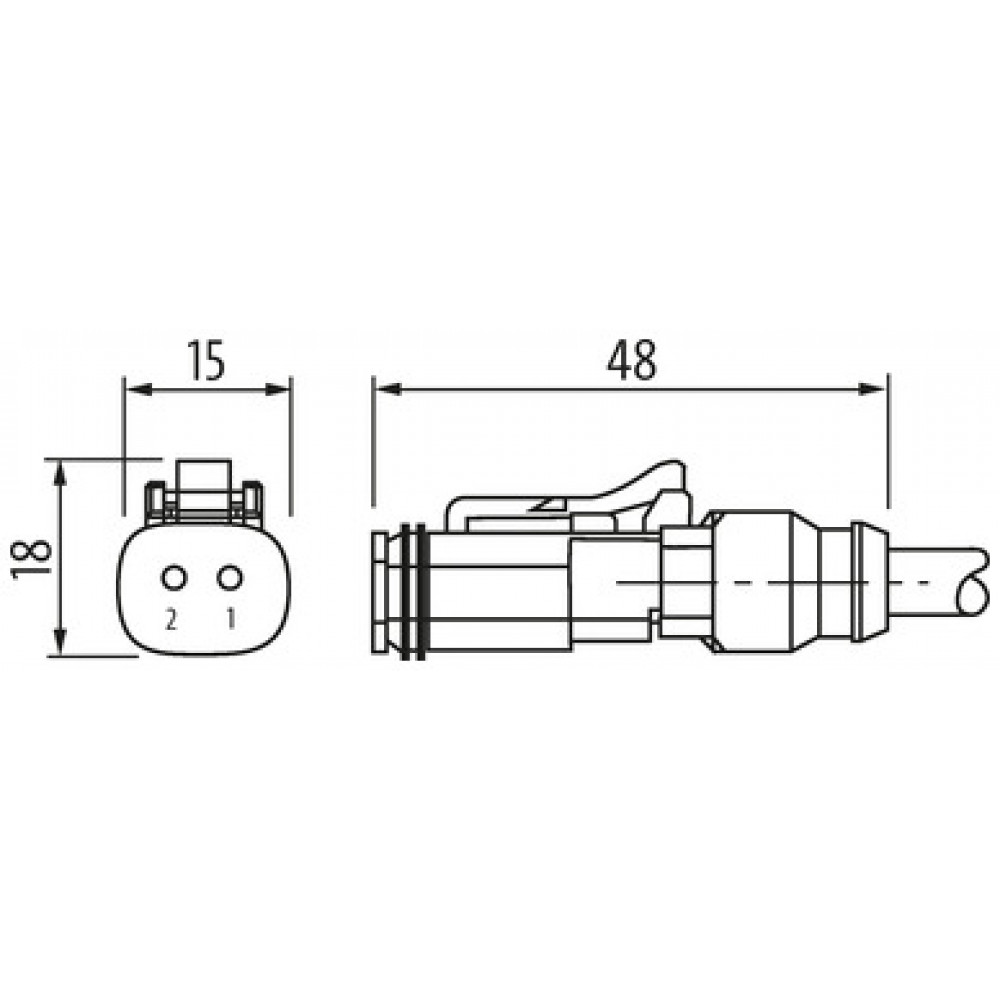

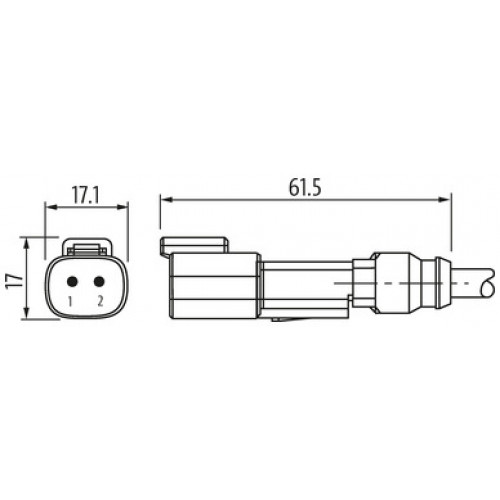

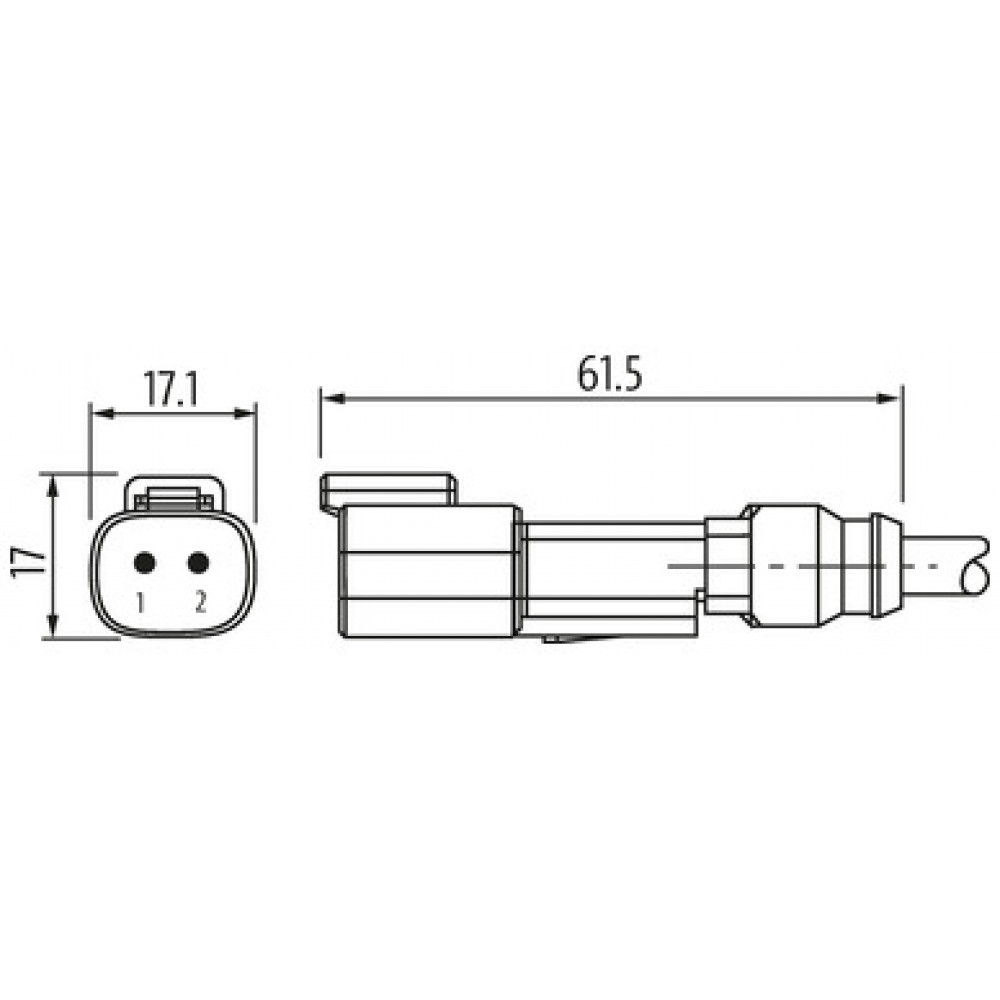

| Housing | Amphenol AT06-2S or Deutsch DT06-2S; Amphenol AT04-2P or Deutsch DT04-2P |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Rated Surge Voltage | 2.5 kV |
| Suitable For Corrugated Tube (internal Ø) | 11 mm |
| Additional Suppressor | without components |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4065909012154 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 754 |
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 40,7 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 1.7 mm ±5% |

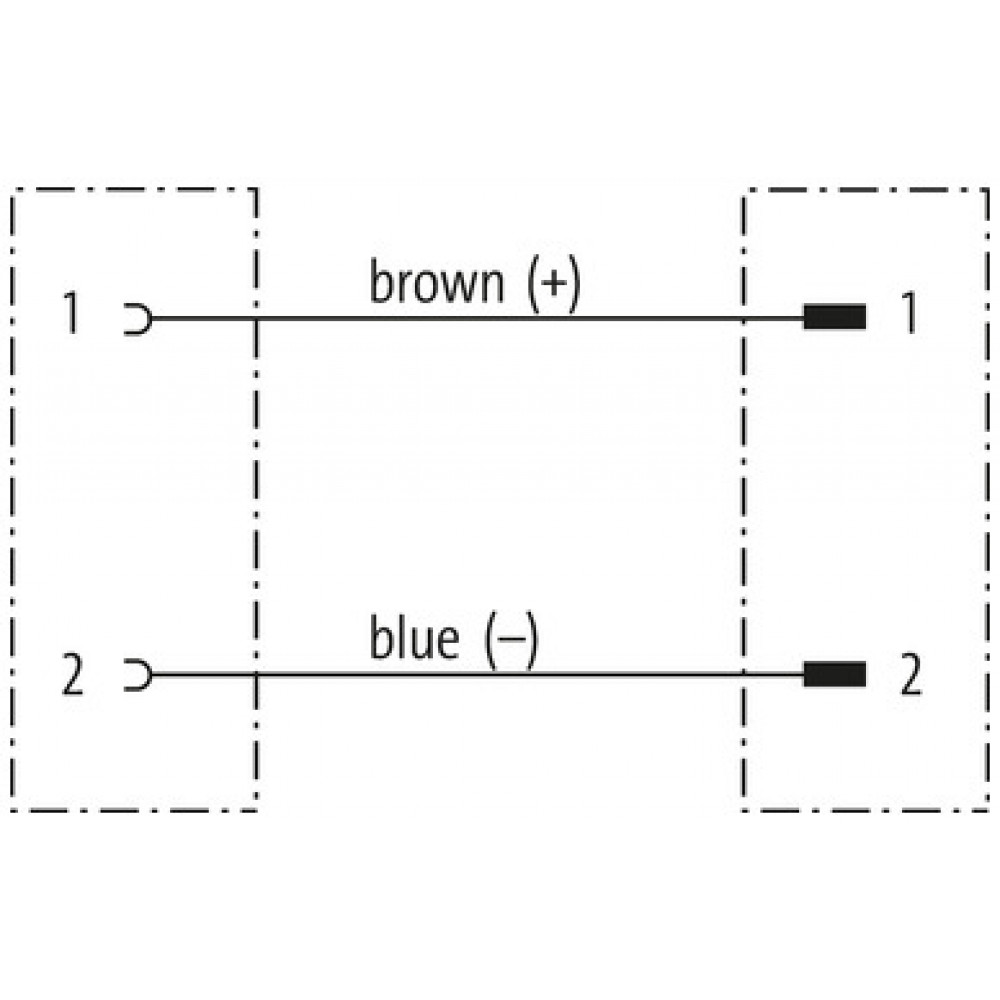

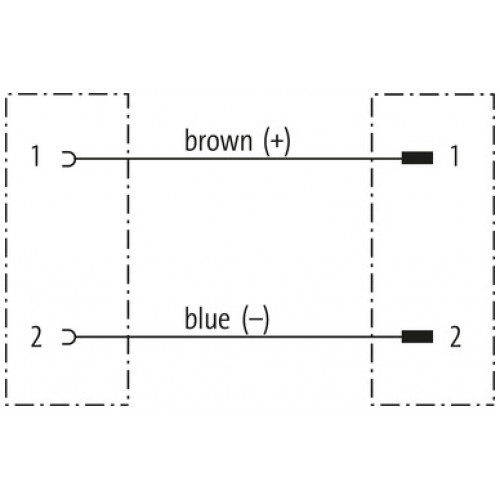

| Color/numbering Of Wires | br, bl |
| Shield | no |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Color (jacket) | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 2 wires twisted |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±180°/m |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 77001 |
| General data | |
| Mounting Method | inserted |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Material (contact Surface) | Ni |
| Material (gasket) | Silicon |
