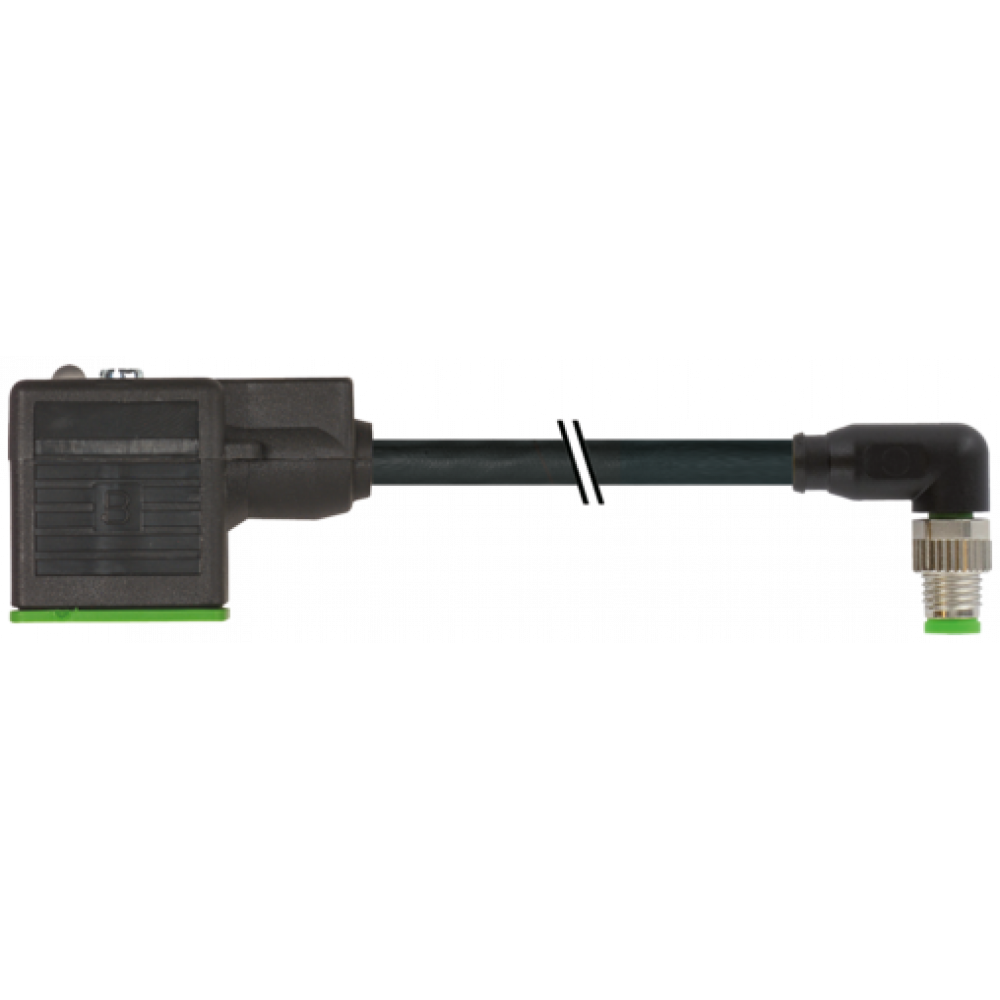

7000-88811-6330150 M8 male 90° A-cod. / MSUD valve plug BI-11mm
Kód EXIM-TECH 7000-88811-6330150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-88811-6330150 M8 male 90° A-cod. / MSUD valve plug BI-11mm
PUR 3x0.34 bk UL/CSA+drag ch. 1.5m
Kód produktu od výrobcu: 7000-88811-6330150Kód EXIM-TECH 7000-88811-6330150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 19.89€ (24.46€ ) |
| 10+ | 20.24€ (24.29€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
MSUD
Further cable lengths on request.

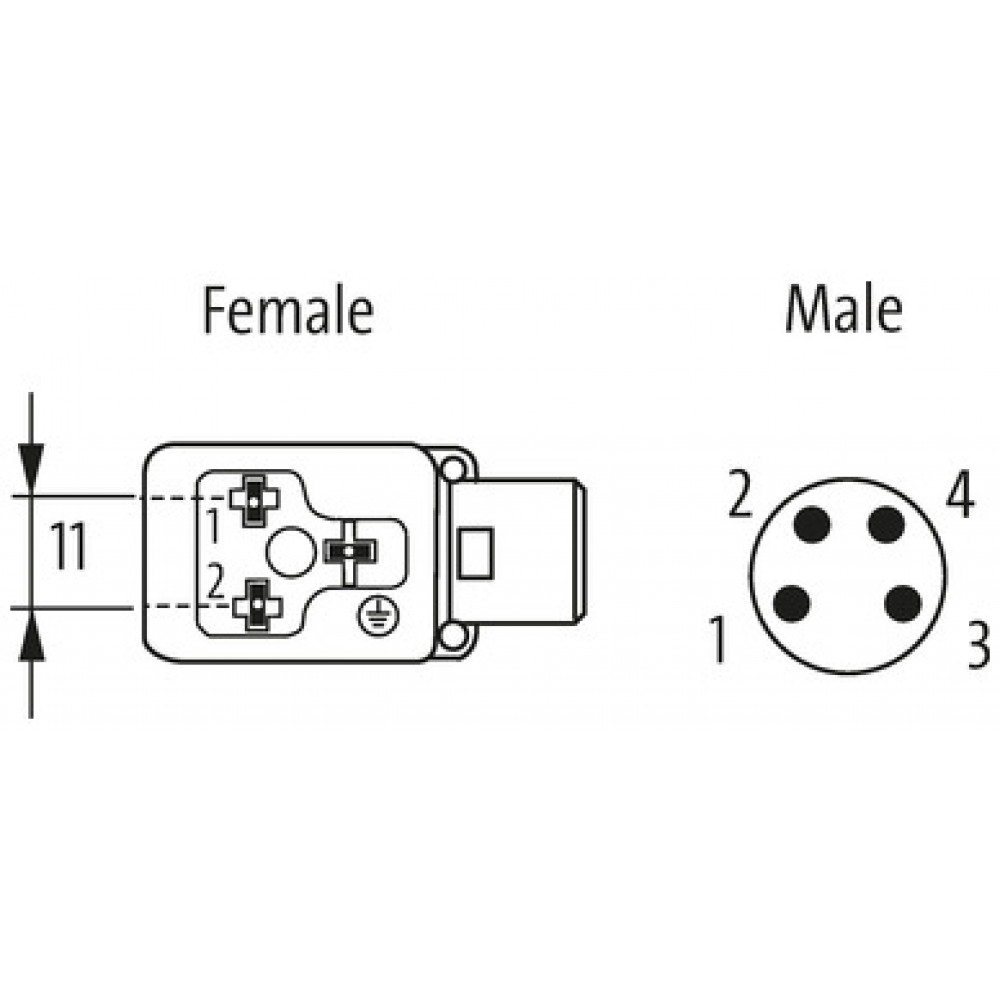

Form BI (11 mm)
3-pole
Male M8
90°
4-pole
24 V AC ±20% / DC ±25%

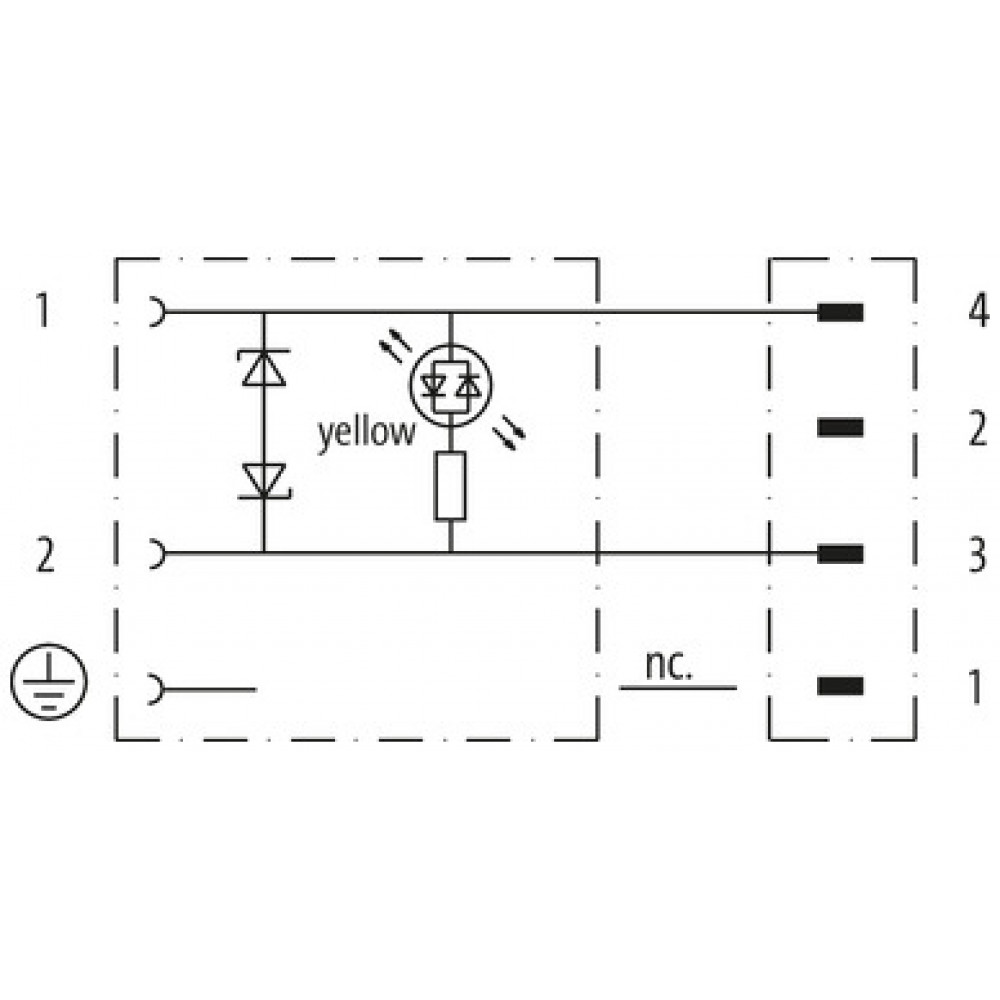

Z-Diode + LED
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
Further cable lengths on request.
Form BI (11 mm)
3-pole
Male M8
90°
4-pole
24 V AC ±20% / DC ±25%
Z-Diode + LED
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
| Technical Data | |
| No. Of Poles | MSUD (3); M8 (4) |
| Operating Voltage | 24 V AC ±20% / DC ±25% |
| Material | MSUD (PBT); M8 (PUR) |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | M3/M8 (recommended torque 0.4 Nm) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Housing | Black plastic (gray on request) |
| Current Consumption | 15 mA |
| LED Display | yellow |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M8 (SW9) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Suitable For Corrugated Tube (internal Ø) | 6.5 mm |
| Additional Suppressor | Diode/Z-Diode |
| Switch Off Peak | max. 55 V |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879116053 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 633 |
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 29,7 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 3× 0.34 mm² |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl |
| Shield | no |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 4.1 mm ±5% |
| Color (jacket) | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 3 wires twisted |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±180°/m |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 88811 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-104 (M8) |
| Material (contact Surface) | MSUD (Ag); M8 (Au) |
| Material (gasket) | PUR |
