7000-PS105-8651000 M23 servo cable
Kód EXIM-TECH 7000-PS105-8651000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

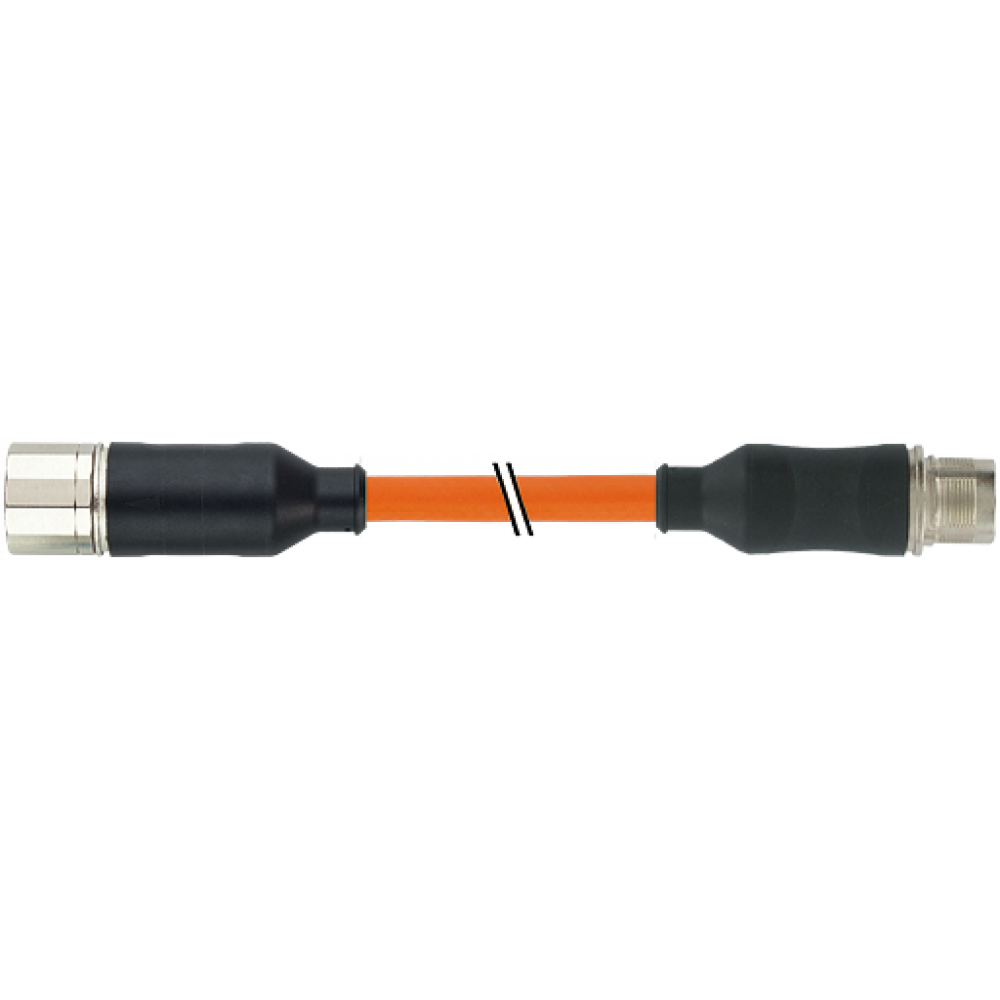

7000-PS105-8651000 M23 servo cable
specification: 6FX5002-5CA05-1BA0
Kód produktu od výrobcu: 7000-PS105-8651000Kód EXIM-TECH 7000-PS105-8651000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 215.61€ (265.20€ ) |
| 10+ | 214.94€ (257.93€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Power cable for SINAMICS S120 and Motors with M23 connection
The resistance to aggressive media should be individually tested for your application. Further details on request.

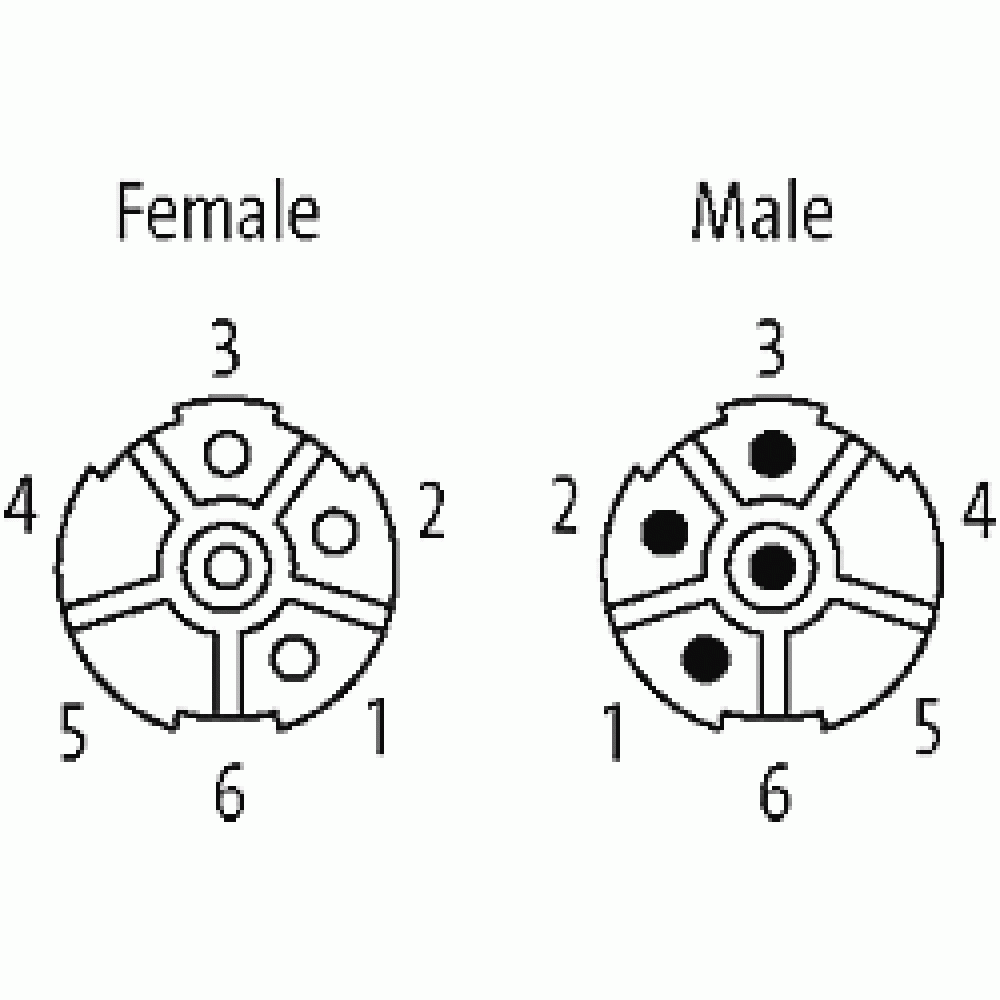

Female straight – male straight
M23 – M23, 6-pole
4-pole used
shielded
without brake wires
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Female straight – male straight
M23 – M23, 6-pole
4-pole used
shielded
without brake wires
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
| Technical Data | |
| Operating Voltage | max. 630 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | Power cores |
| Locking Of Ports | Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M23 (SW27) |
| Rated Surge Voltage | 6.0 kV |
| Locking Material | Brass, nickel plated |
| Suitable For Corrugated Tube (internal Ø) | 16 mm; 23 mm |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879507424 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | (4G1.5+C) |
| Wire Isolation | TPM (bk num, gnye) |
| C-track Properties | 0.1 Mio. |
| Outer Ø | 8.0 mm ±5% |
| Cable Number | 865 |
| Approval (cable) | UL (AWM-Style 2570/10492), CSA |
| Diameter (core) | 4× 2.5 mm² |
| Shield | yes |
| Material (jacket) | PVC (UL/CSA) (=MC500) |
| Jacket Color | orange |
| Temperature Range (fixed) | -25...+80 °C |
| Temperature Range (mobile) | -5...+60 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 18× outer Ø |
| Torsion Stress | ±30°/m |
| Specification | 6FX5008-1BB11 |
| Form | |
| Form | PS105 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
