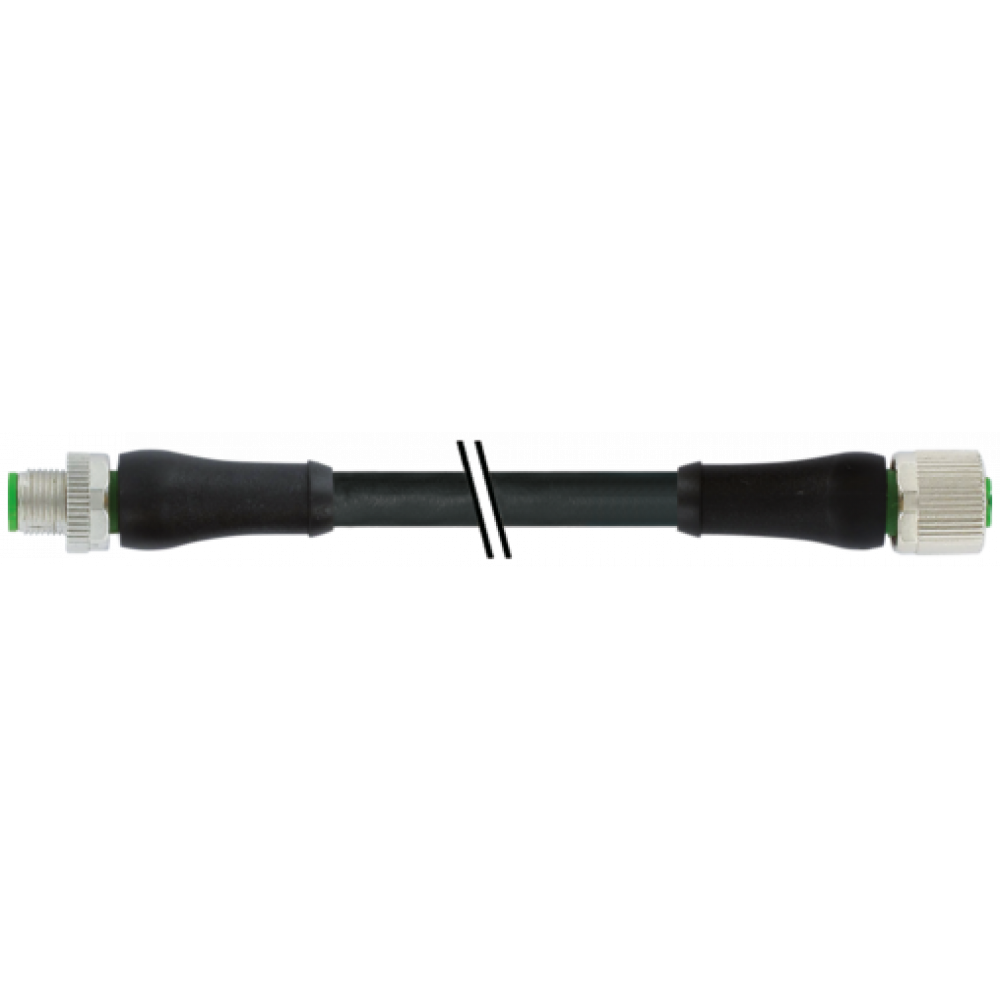

7000-P6241-7730300 M12 Power male 0° / female 0° S-cod.
Kód EXIM-TECH 7000-P6241-7730300
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Power

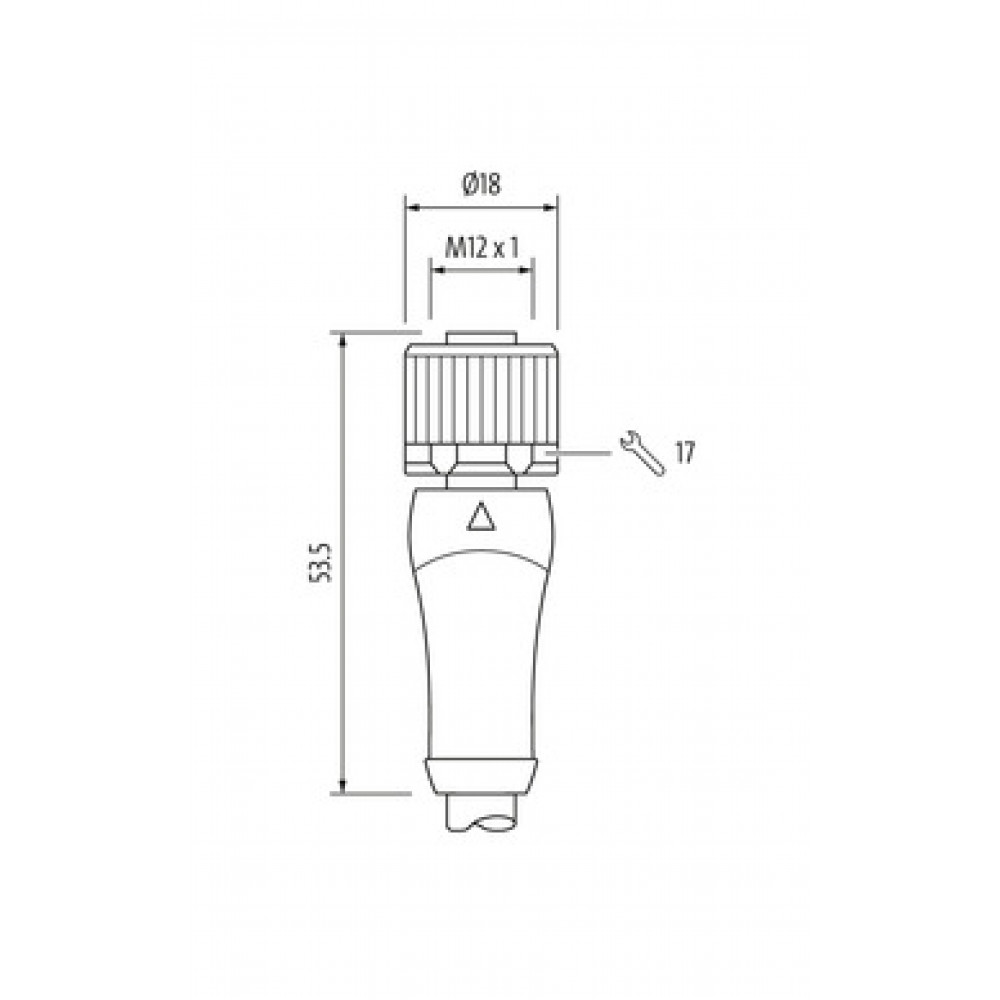

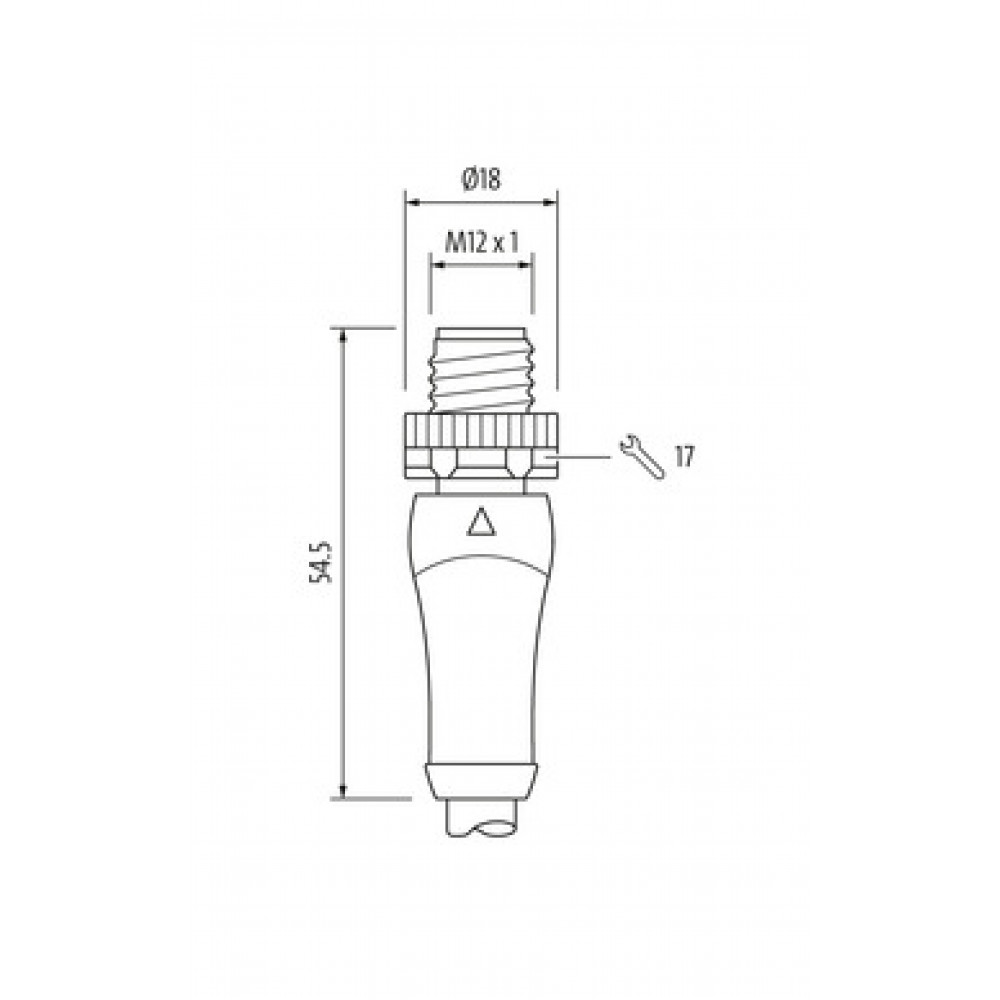

Male straight – female straight

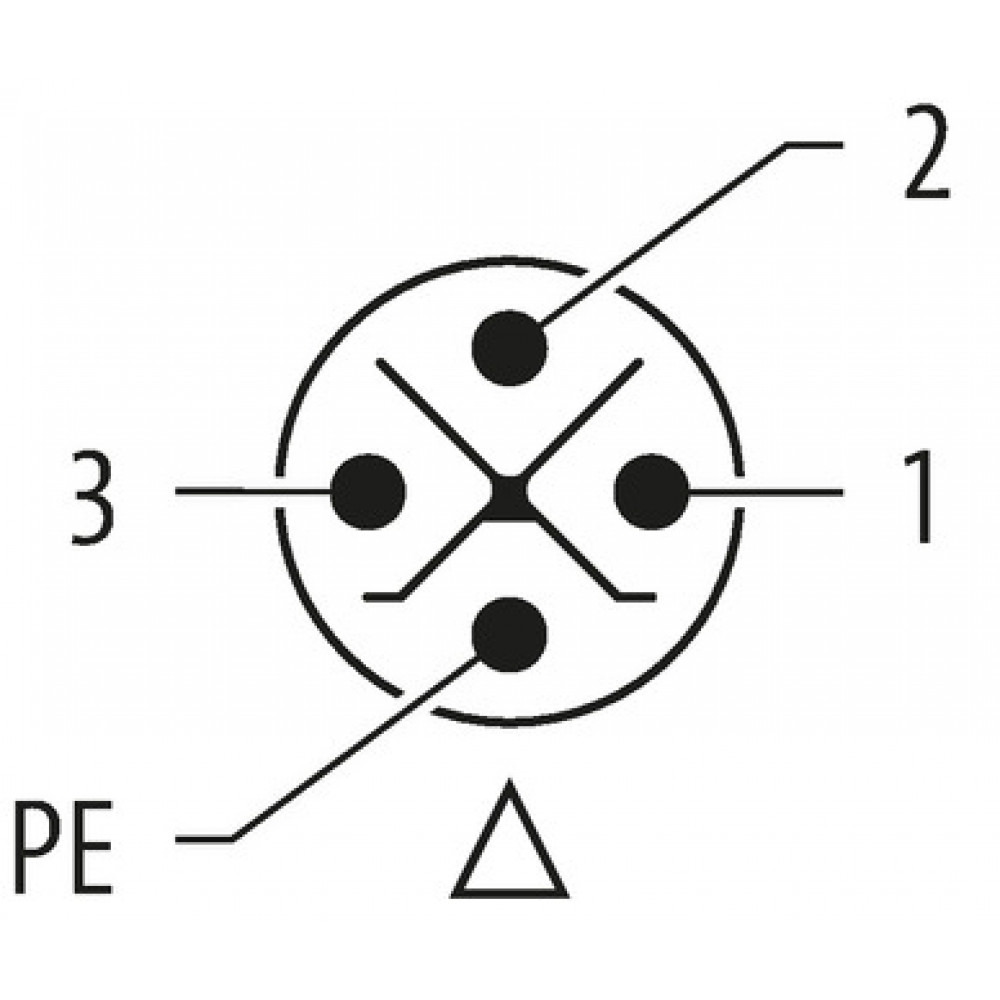

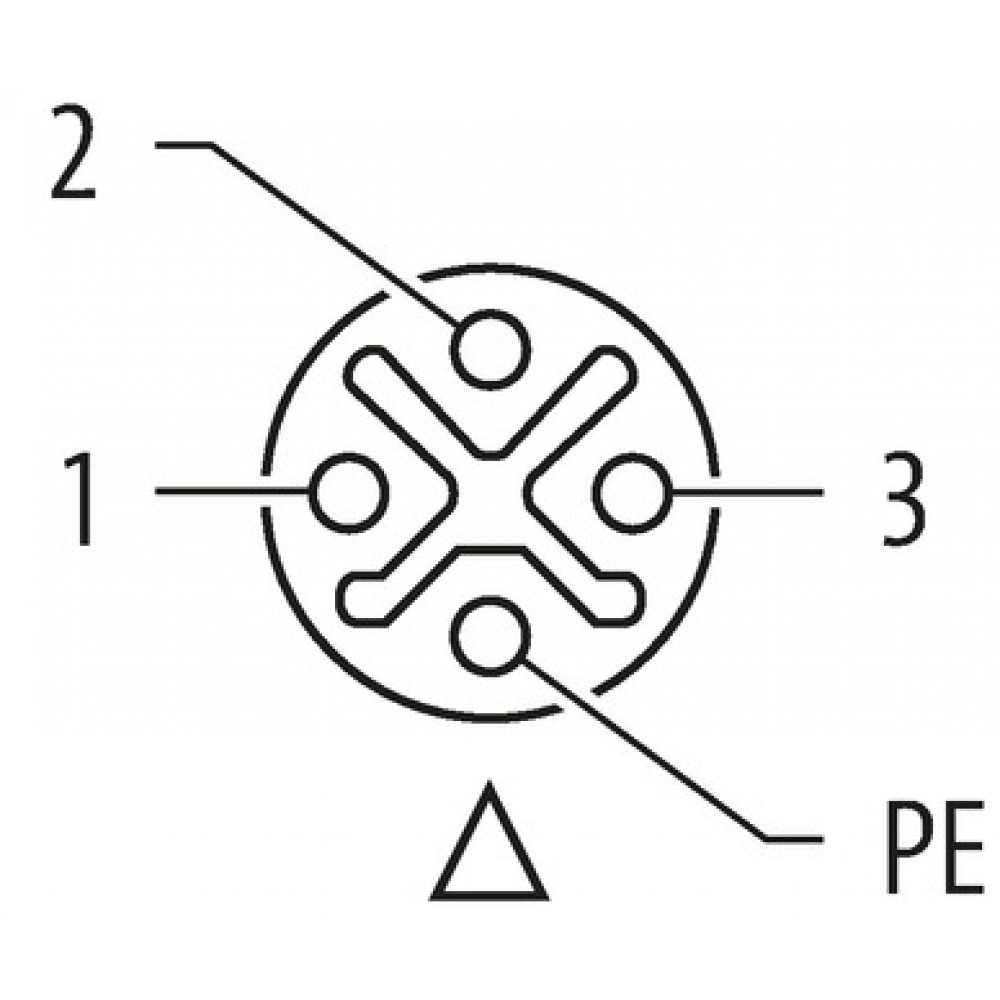

M12 – M12, 4-pole
S-coded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
7000-P6241-7730300 M12 Power male 0° / female 0° S-cod.
PUR 4x1.5 bk 3m
Kód produktu od výrobcu: 7000-P6241-7730300Kód EXIM-TECH 7000-P6241-7730300
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 61.77€ (75.98€ ) |
| 10+ | 61.91€ (74.29€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Power
Male straight – female straight
M12 – M12, 4-pole
S-coded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 4 |
| Operating Voltage | max. 600 V AC |
| Material | PUR |
| Operating Current Per Contact | max. 12 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW17) |
| Rated Surge Voltage | 6.0 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | S-coded |
| Suitable For Corrugated Tube (internal Ø) | 12 mm |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879642439 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |

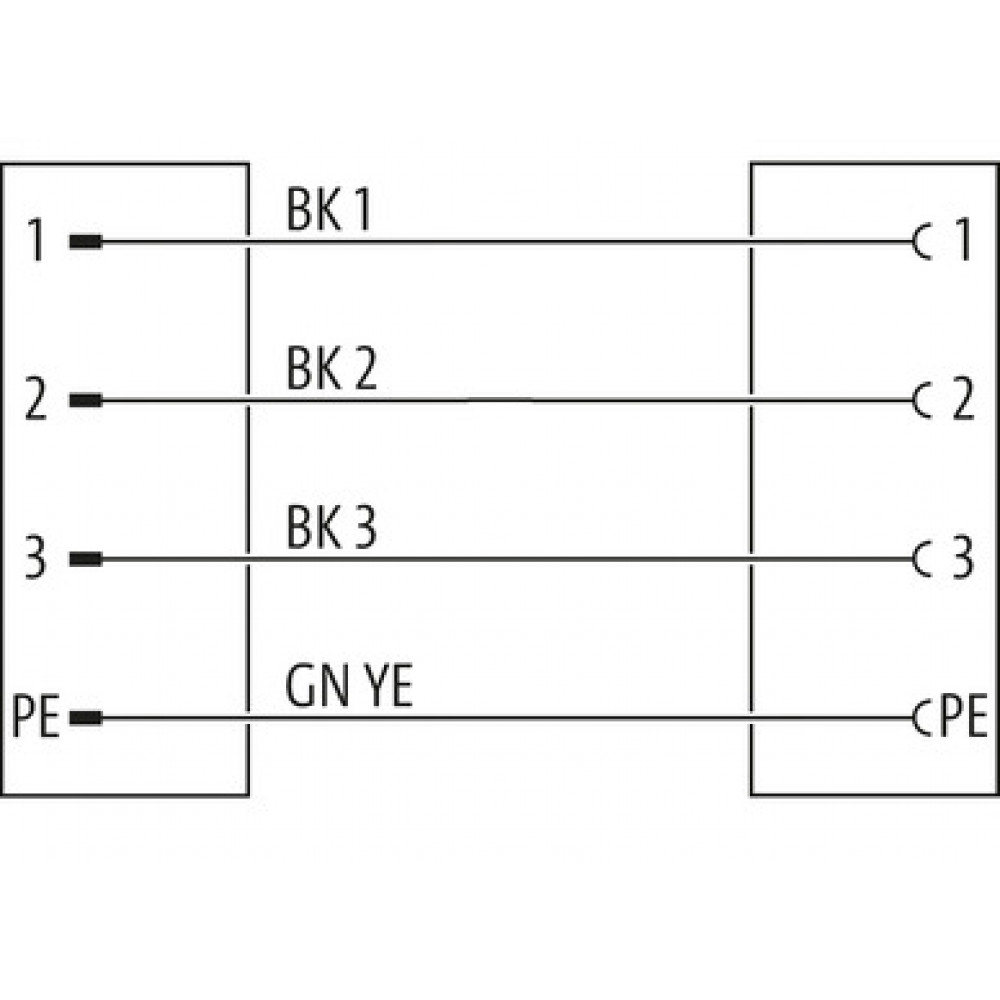

| No./diameter Of Wires | 4× 1.5 mm² |
| Wire Isolation | PP (bk num, gnye) |
| Outer Ø | 7.2 mm ±5% |
| Cable Number | 773 |
| Approval (cable) | CE |
| Diameter (core) | 4× 1.5 mm² |
| Material (jacket) | PUR |
| Jacket Color | black |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 12× outer Ø |
| Form | |
| Form | P6241 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | IEC 61076-2-111 |
| Material (contact Surface) | Au |
| Material (gasket) | FKM |
