7000-18112-6172000 MSUD valve plug A-18mm with cable
Kód EXIM-TECH 7000-18112-6172000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

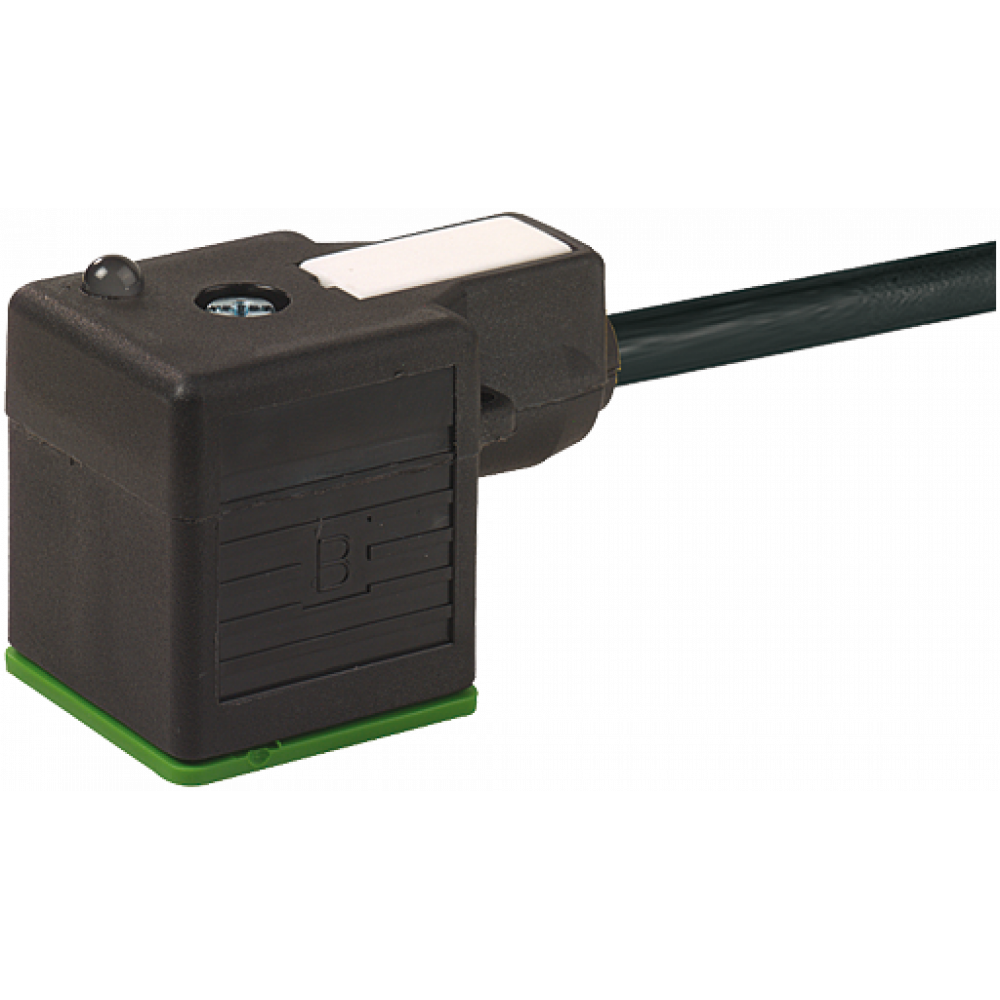

7000-18112-6172000 MSUD valve plug A-18mm with cable
PVC 4x0.75 bk 20m
Kód produktu od výrobcu: 7000-18112-6172000Kód EXIM-TECH 7000-18112-6172000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 35.54€ (43.71€ ) |
| 10+ | 31.37€ (37.64€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
MSUD

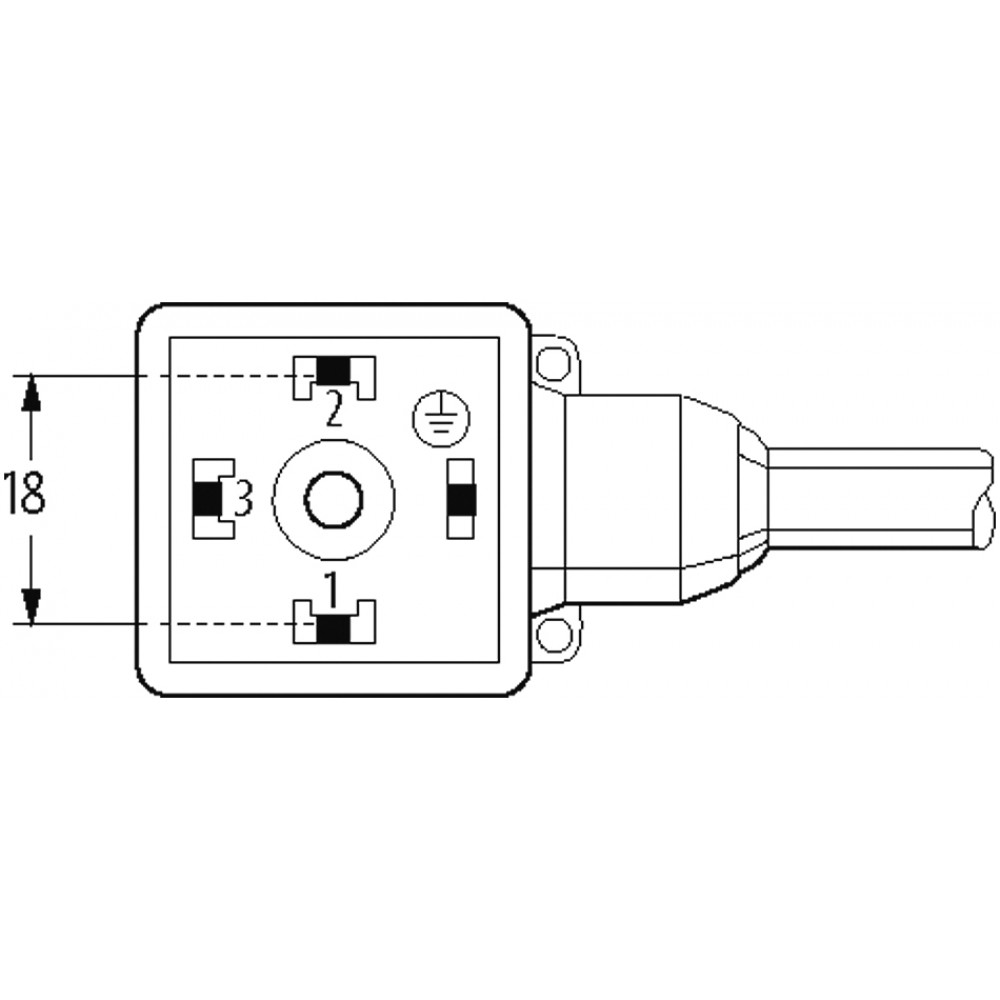

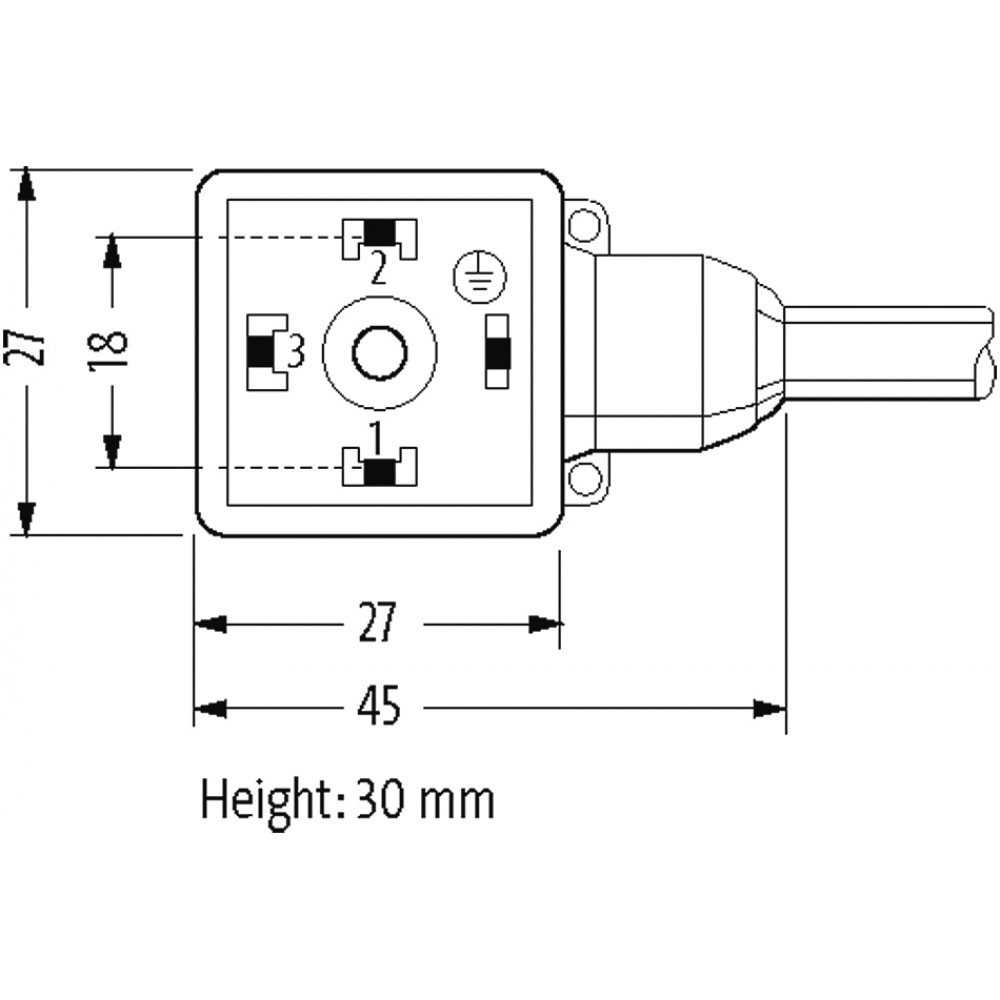

Form A (18 mm)
0...230 V AC/DC
without components

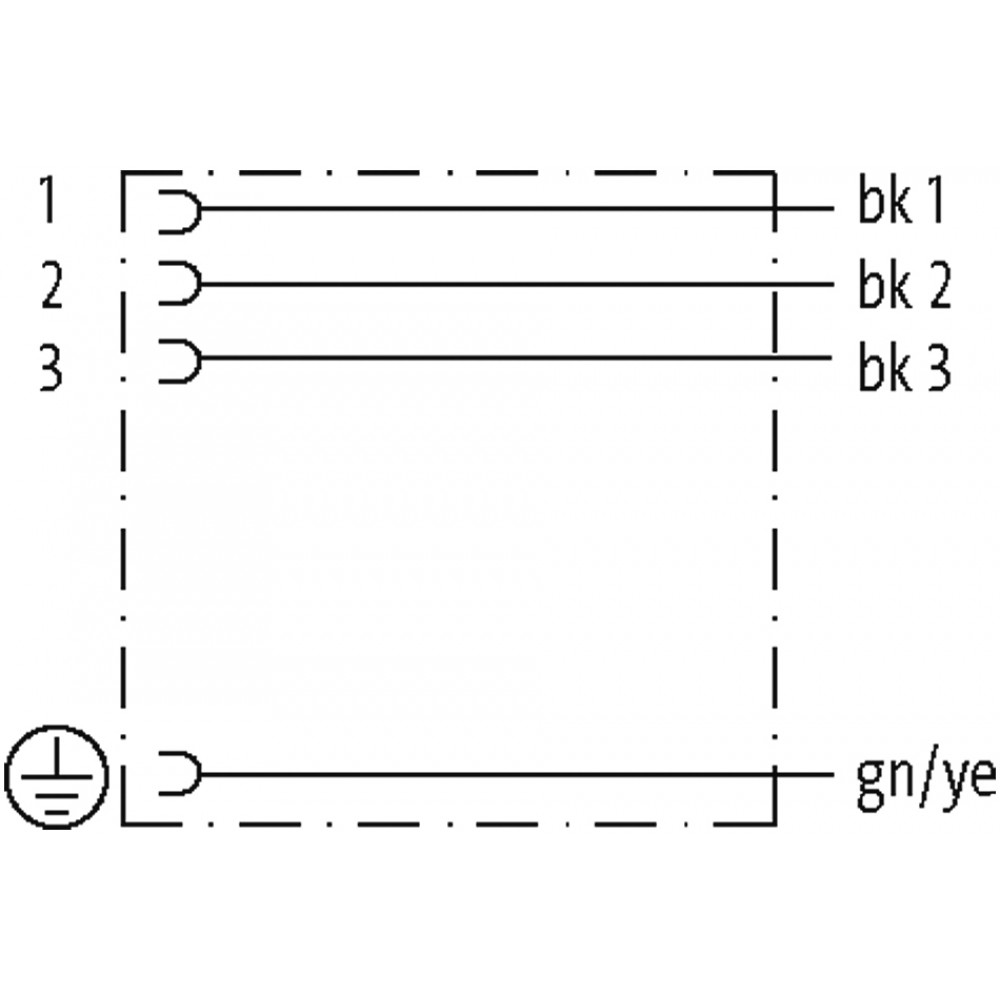

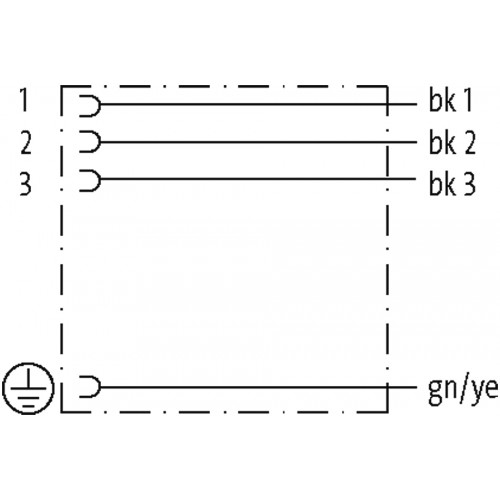

4-pole
PE opposite cable entry (180°)
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form A (18 mm)
0...230 V AC/DC
without components
4-pole
PE opposite cable entry (180°)
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| Operating Voltage | max. 230 V AC/DC |
| Material | PBT |
| Operating Current Per Contact | max. 10 A |
| Locking Of Ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP67 |
| Housing | Black plastic (gray on request) |
| Material Group | IEC 60664-1, category I |
| Rated Surge Voltage | 4.0 kV |
| Locking Material | Steel (galvanized) |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879867597 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 4× 0.75 mm² |
| Wire Isolation | PVC (bk num, gnye) |
| Outer Ø | 6.5 mm ±5% |
| Cable Identification | 617 |
| Cable Type | 1 (P'VC) |
| Approval (cable) | CE conform |
| Cable Weight [g/m] | 77,66 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.2 mm |
| Construction (core) | 24× 0.2 mm (multi-strand wire class 5) |
| Diameter (core) | 4× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 43 ±5 D |
| Wire-Ø Incl. Isolation | 1.8 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Material (jacket) | PVC |
| Shore Hardness (jacket) | 80 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | 300/500 V AC |
| Test Voltage | 3000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+70 °C |
| Temperature Range (mobile) | -5...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Stranding Combination | 4 wires twisted |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Form | |
| Form | 18112 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Material (gasket) | PUR |
