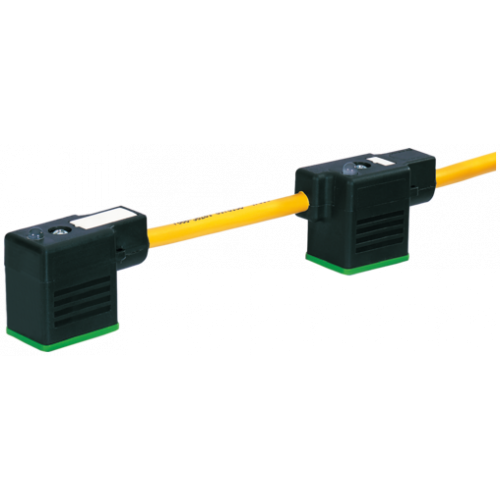

7000-58121-0270500 MSUD double valve BI-11mm with cable
Kód EXIM-TECH 7000-58121-0270500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

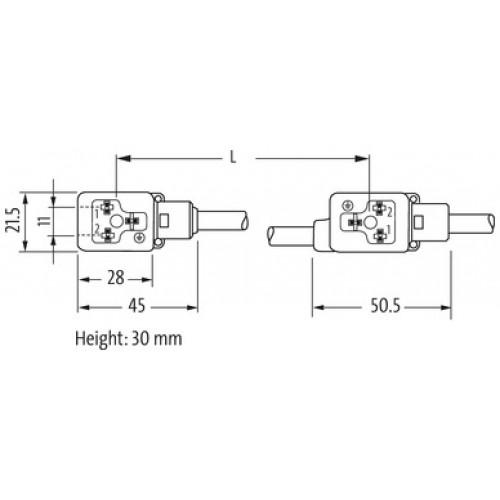

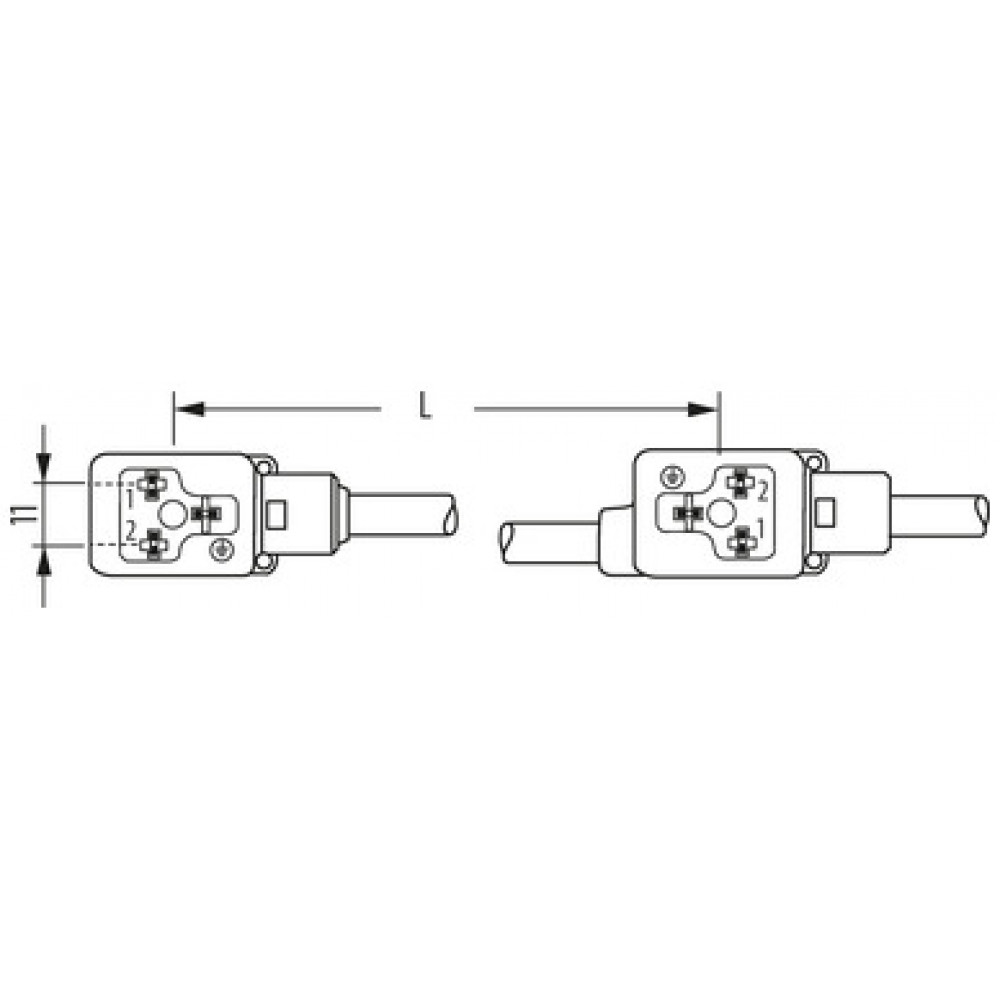

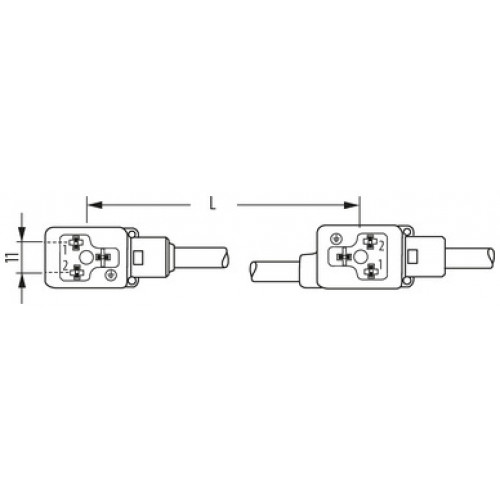

Form BI (11 mm)
24 V AC ±20% / DC ±25%

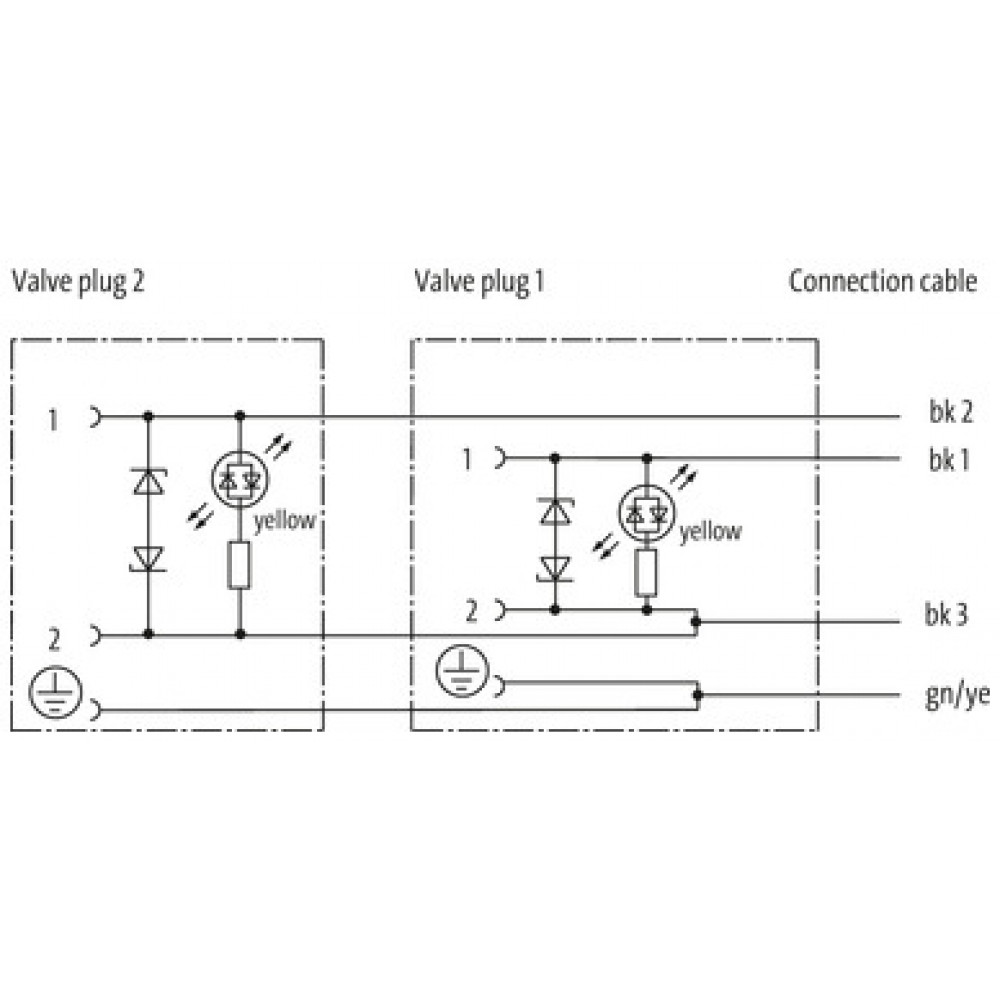

LED and suppression
Connection cable L = 150 mm
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7000-58121-0270500 MSUD double valve BI-11mm with cable
PUR 4x0.75 ye 5m
Kód produktu od výrobcu: 7000-58121-0270500Kód EXIM-TECH 7000-58121-0270500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 37.68€ (46.34€ ) |
| 10+ | 37.42€ (44.90€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Form BI (11 mm)
24 V AC ±20% / DC ±25%
LED and suppression
Connection cable L = 150 mm
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | 24 V AC ±20% / DC ±25% |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP67 inserted and tightened (EN 60529) |
| Housing | Black plastic (gray on request) |
| Current Consumption | approx. 12 mA |
| LED Display | (yellow) |
| Rated Surge Voltage | 0.8 kV |
| Switch Off Peak | max. 55 V |
| Switch Off Delay Time | max. 20 ms |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879136471 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| No./diameter Of Wires | 4× 0.75 mm² |
| Wire Isolation | PVC (bk num, gnye) |
| C-track Properties | 2 Mio. |
| Outer Ø | 6.5 mm ±5% |
| Cable Identification | 027 |
| Cable Type | 2 (PUR/PVC) |
| Approval (cable) | UL (AWM-Style 20549/1731), CSA; CE conform |
| Cable Weight [g/m] | 74,8 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 43 ±5 D |
| Wire-Ø Incl. Isolation | 1.8 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Shore Hardness (jacket) | 80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket) |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | yellow |
| Jacket Color | yellow |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | UL 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 10× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Stranding Combination | 4 wires twisted |
| Material (jacket) | PUR/PVC |
| Material (jacket) | PUR/PVC (UL/CSA) |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Form | |
| Form | 58121 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
