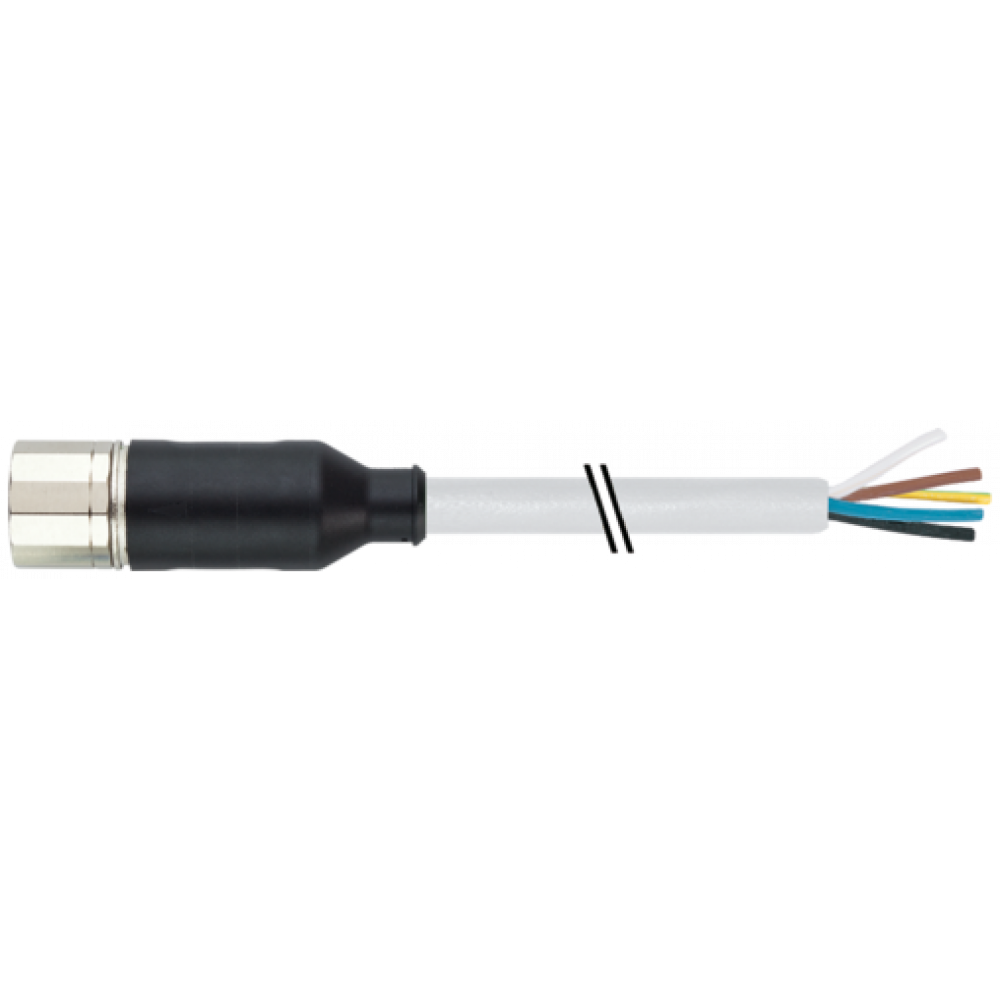

7000-23251-4521500 M23 female 0° with cable
Kód EXIM-TECH 7000-23251-4521500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-23251-4521500 M23 female 0° with cable
PUR 16x0.5+3x1.0 gy UL/CSA+drag ch. 15m
Kód produktu od výrobcu: 7000-23251-4521500Kód EXIM-TECH 7000-23251-4521500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 358.95€ (441.51€ ) |
| 10+ | 354.08€ (424.90€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Female straight

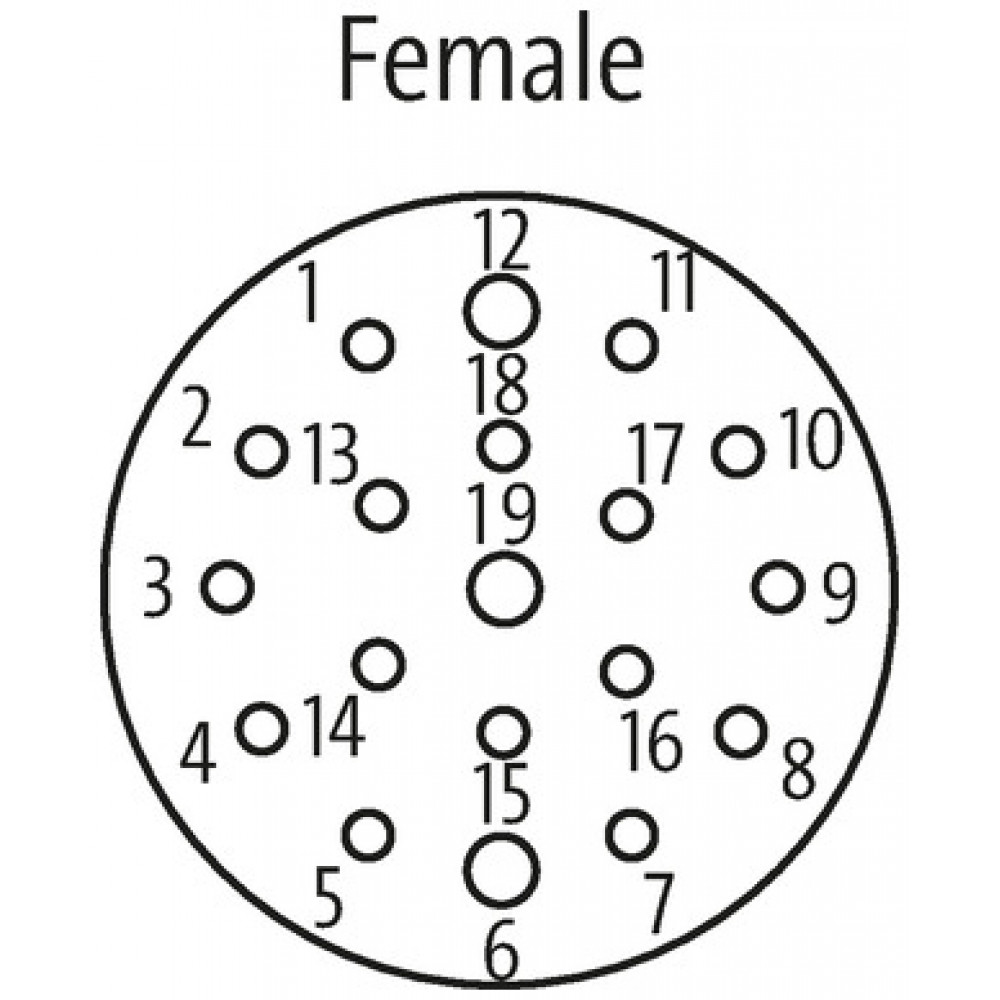

M23, 19-pole
19-pole used
for 8-way distribution boxes, 5-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M23, 19-pole
19-pole used
for 8-way distribution boxes, 5-pole
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 19 |
| Operating Voltage | max. 125 V AC/DC |
| Operating Current Per Contact | 7.5 A (1.0 mm²); 3.5 A (0.5 mm²) |

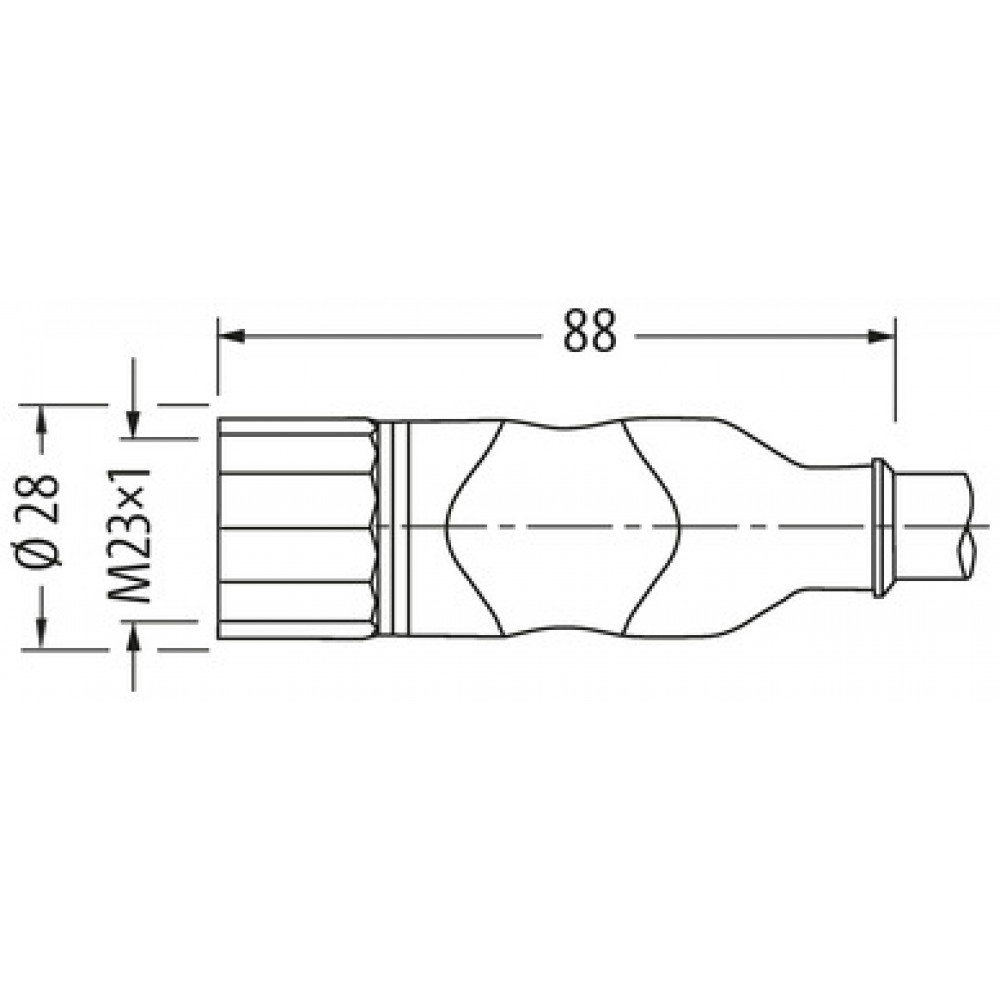

| Locking Of Ports | Screw thread (M23×1 mm) |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M23 (SW27) |
| Rated Surge Voltage | 2.0 kV |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879188005 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 452 |
| Approval (cable) | cRUus (AWM style 20549/10042); CE compliant |
| Cable Weight [g/m] | 231 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 39 Ω/km (0.5 mm²); max. 20 Ω/km (1.0 mm²); (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 64× 0.1 mm (0.5 mm²), 128× 0.1 mm (1.0 mm²); (multi-strand wire class 6) |

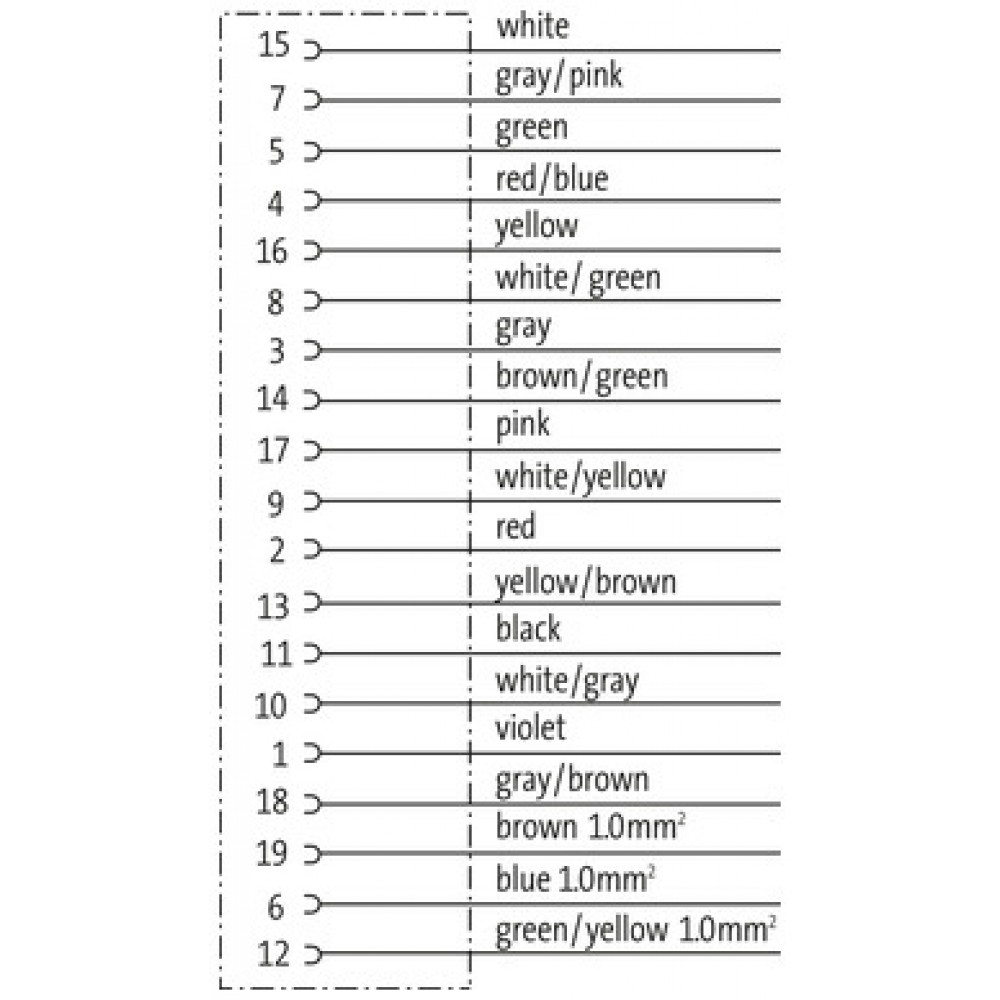

| Diameter (core) | 16× 0.5 + 3× 1.0 mm² |
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 17 (1.0 mm²) |
| Material (wire Isolation) | TPE-E |
| Shore Hardness (wire Isolation) | 55 ±3 D |
| Wire-Ø Incl. Isolation | 1.6 mm ±5% (0.5 mm²); 2.1 mm ±5% (1.0 mm²) |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 94 ±5 A |
| Outer-Ø (jacket) | 11.5 mm ±5% |
| Color (jacket) | gray |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | 300/300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (mobile) | -20...+90 °C |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. |
| Travel Speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Traversing Distance (C-track) | max. 5 m (horizontal) |
| Form | |
| Form | 23251 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
