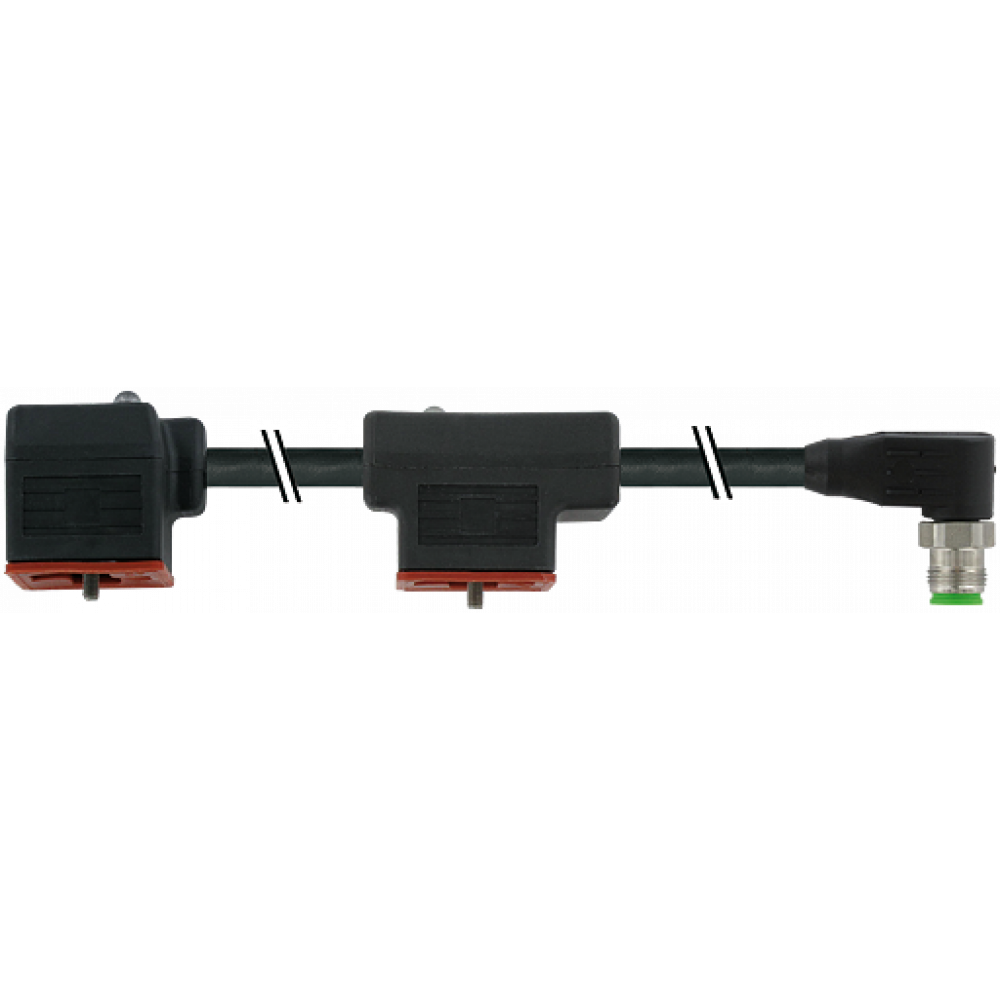

7074-41551-6370060 M12 X-treme male 90° / MSUD dbl. valve plug form A
Kód EXIM-TECH 7074-41551-6370060
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7074-41551-6370060 M12 X-treme male 90° / MSUD dbl. valve plug form A
PUR 4x0.75 bk UL/CSA+drag chain 0,6m
Kód produktu od výrobcu: 7074-41551-6370060Kód EXIM-TECH 7074-41551-6370060
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 51.70€ (63.60€ ) |
| 10+ | 52.84€ (63.41€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke

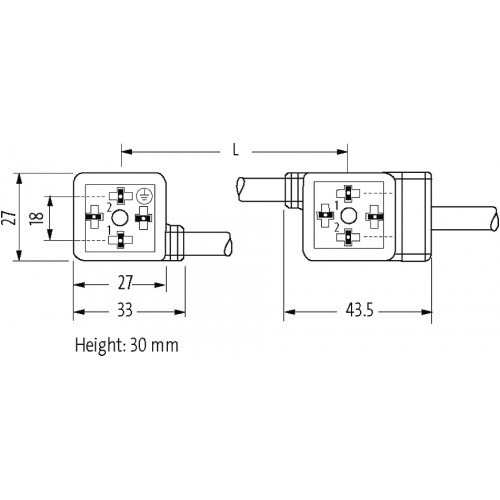

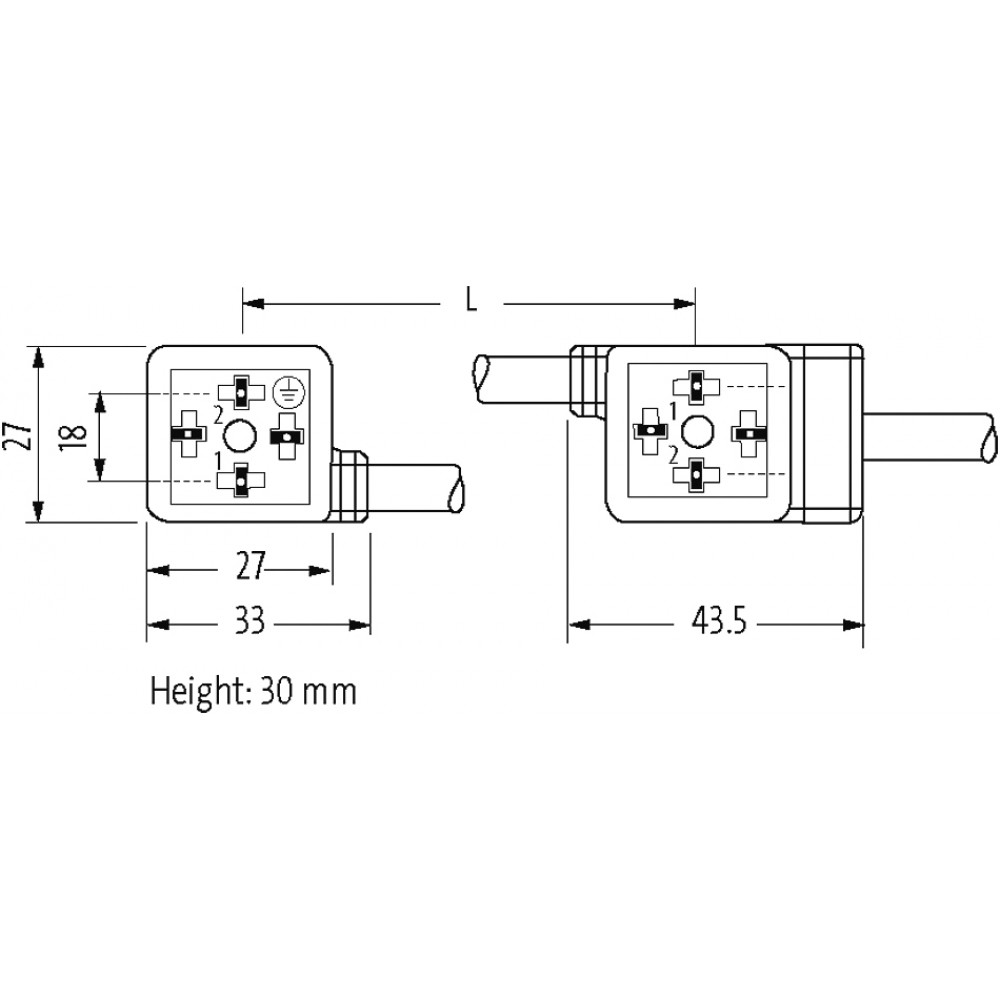

Form A (18 mm)
24 V AC ±20% / DC ±25%

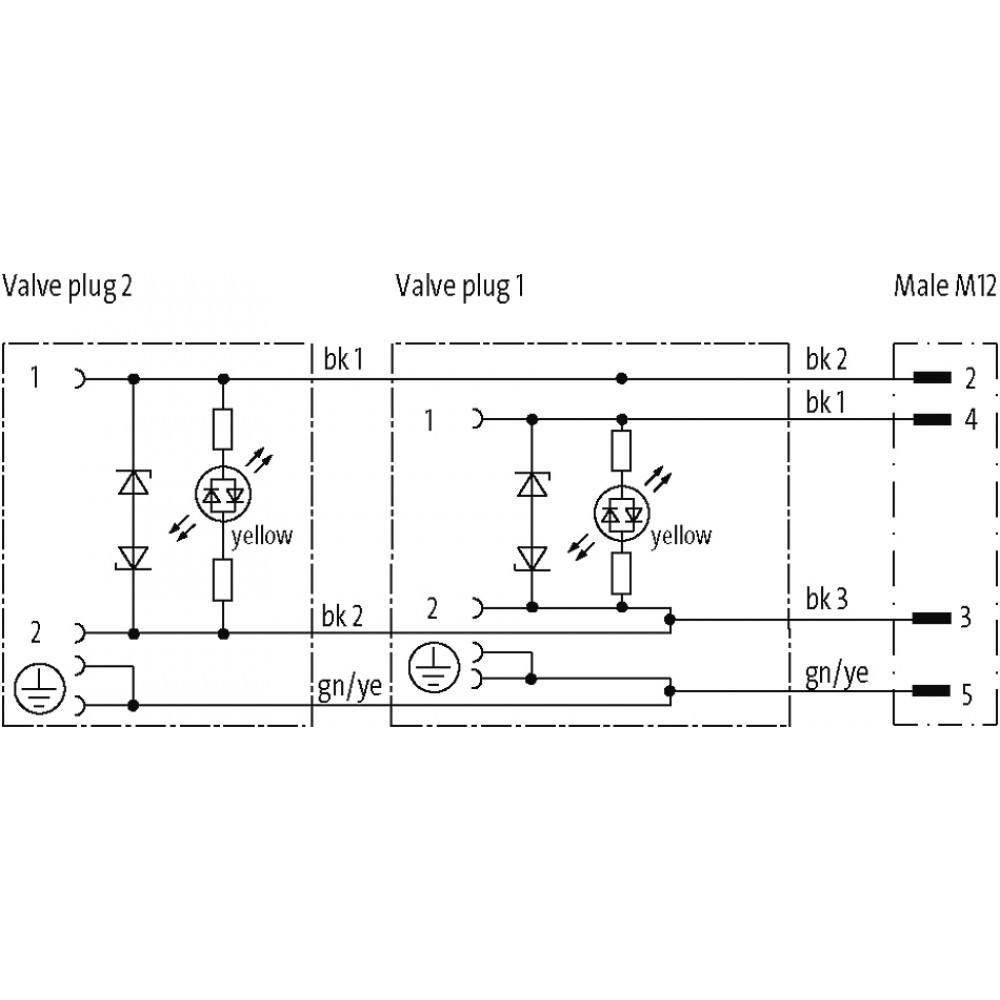

LED and suppression
Connection cable L = 200 mm
M12 (4-pole)
Stainless steel
Bridged PE
Plastic housings with good resistance against chemicals and oils.
Further cable lengths on request.
24 V AC ±20% / DC ±25%
LED and suppression
Connection cable L = 200 mm
M12 (4-pole)
Stainless steel
Bridged PE
Plastic housings with good resistance against chemicals and oils.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | 24 V AC ±20% / DC ±25% |
| Material | MSUD (PBT); M12 (PUR) |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | M3/M12×1 mm (recommended torque 0.4/0.6 Nm) |
| Protection | IP67 |
| Housing | Black plastic (gray on request) |
| Current Consumption | max. 15 mA |
| LED Display | yellow |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Stainless steel |
| Coding | A-coded |
| Additional Suppressor | Diode/Z-Diode |
| Switch Off Peak | max. 55 V |
| Switch Off Delay Time | max. 20 ms |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879636216 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 4× 0.75 mm² |
| Wire Isolation | PP (bk num, gnye) |
| C-track Properties | 10 Mio. |
| Outer Ø | 6.5 mm ±5% |
| Cable Identification | 637 |
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 69,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 1.85 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 4 wires twisted |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±180°/m |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 41551 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Material (gasket) | Silicon |
