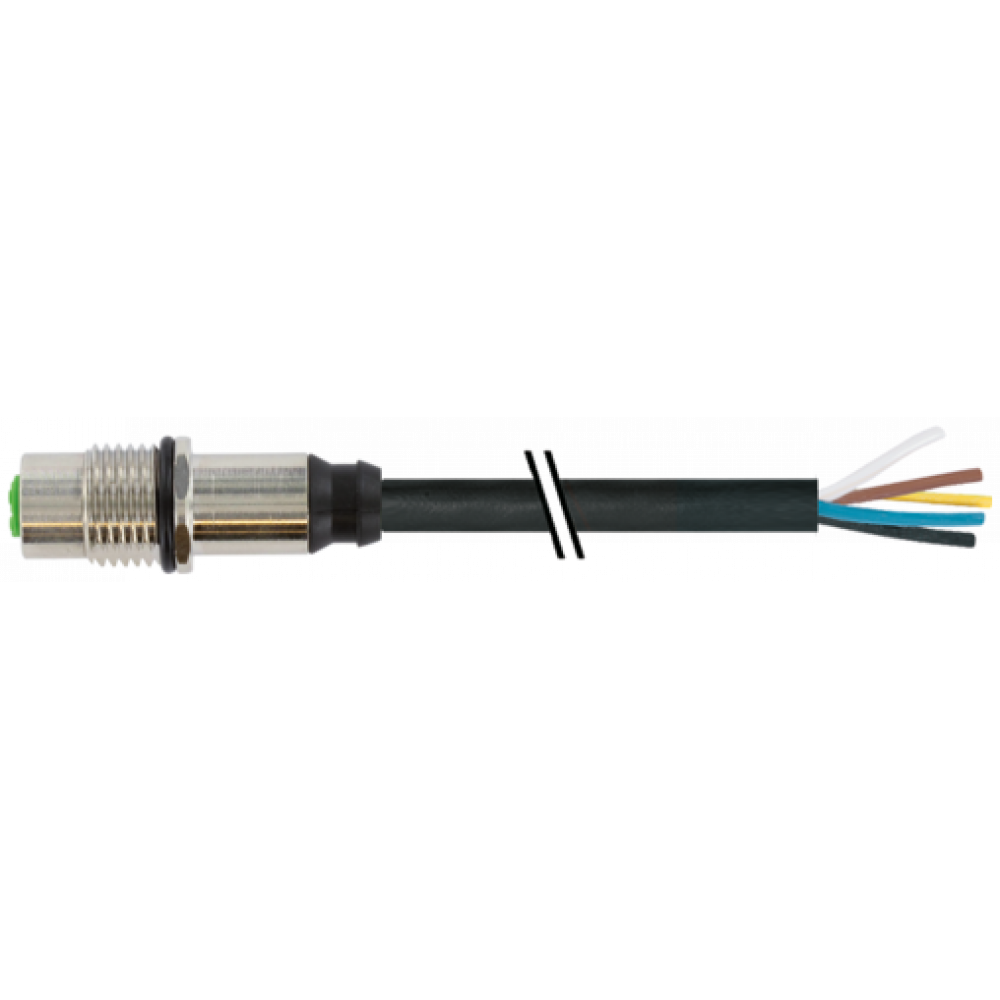

7000-13627-7320500 M12 female receptacle A-cod. with cable rear mount
Kód EXIM-TECH 7000-13627-7320500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-13627-7320500 M12 female receptacle A-cod. with cable rear mount
PUR 5x0.34 bk UL/CSA+drag chain 5.0m
Kód produktu od výrobcu: 7000-13627-7320500Kód EXIM-TECH 7000-13627-7320500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 30.27€ (37.23€ ) |
| 10+ | 30.34€ (36.41€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
7000-13627-7320500 M12 female receptacle A-cod. with cable rear mount
| Technical Data | |
| No. Of Poles | 5 |
| Operating Voltage | max. 125 V AC/DC |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW14) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Brass, nickel plated |
| Coding | A-coded |
| Protection NEMA | 3, 4, 6P (UL 50E) |
| Cables | |
| No./diameter Of Wires | 5× 0.34 mm² |
| Wire Isolation | PP (br, wh, bl, bk, gr) |
| C-track Properties | 10 Mio. |
| Outer Ø | 4.8 mm ±5% |
| Cable Identification | 732 |
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 41,8 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 5× 0.34 mm² |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |

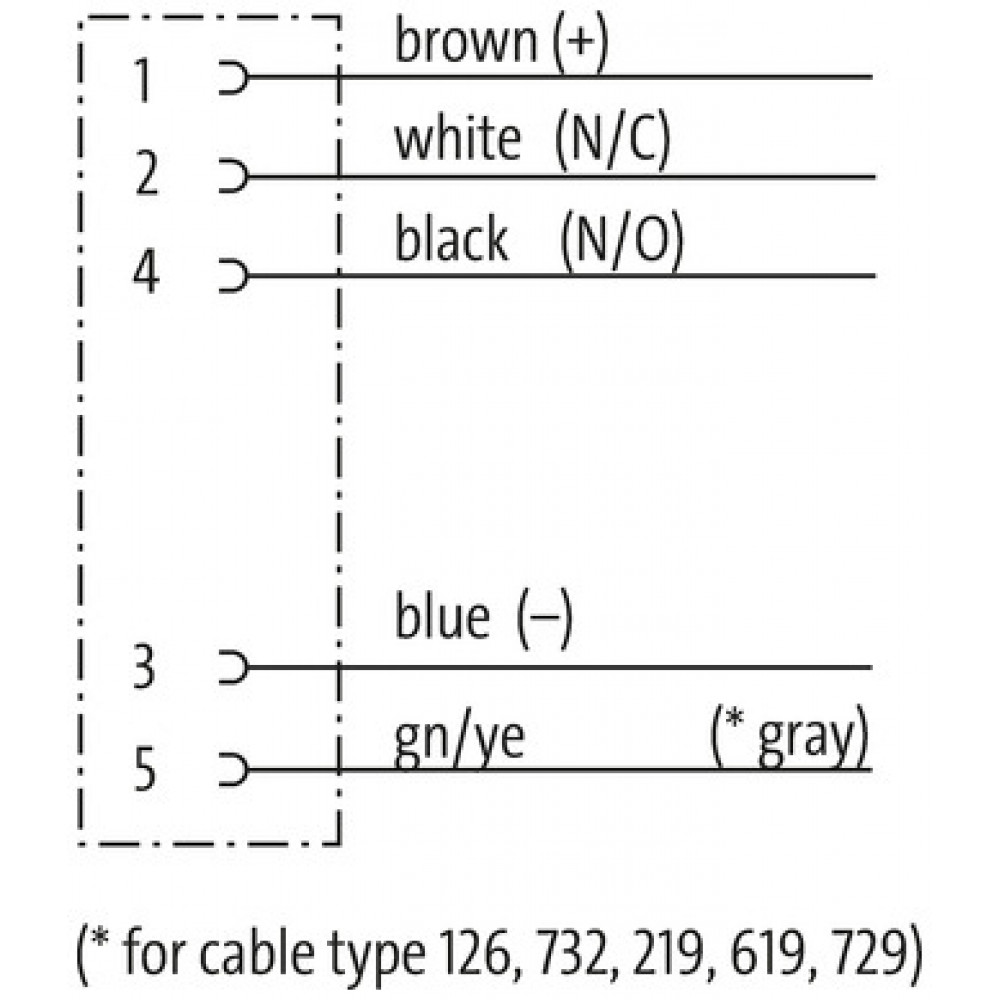

| Color/numbering Of Wires | br, bk, bl, wh, gr |
| Shield | no |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 4.8 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Cable Labeling | see frame delivery specifications 7000-00000-001 |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 5 wires twisted around central filler |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material (jacket) | PUR |
| Material (jacket) | PUR (UL/CSA) |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±180°/m |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 13627 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Material (contact Surface) | Au |
| Stripping Length (jacket) | 20 mm |
| Material (gasket) | FKM |
