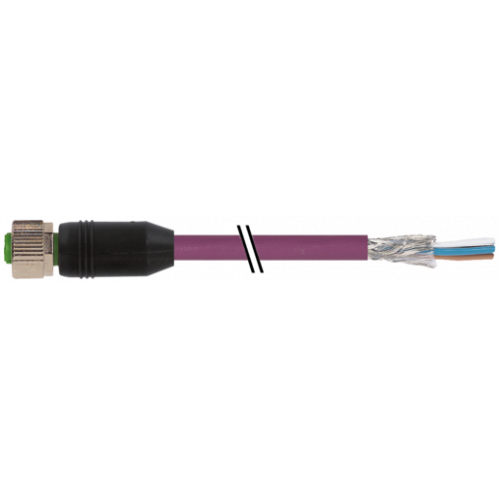

7000-13225-8031000 M12 female 0° A-cod. with cable
Kód EXIM-TECH 7000-13225-8031000
Výrobca: Murrelektronik
Dostupnosť: V sklade
Dokumentácia: PDF
DeviceNet, CANopen
Female straight
M12, 5-pole
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
7000-13225-8031000 M12 female 0° A-cod. with cable
PUR AWG24+22 shielded vt UL/CSA+drag ch. 10m
Kód produktu od výrobcu: 7000-13225-8031000Kód EXIM-TECH 7000-13225-8031000
Výrobca: Murrelektronik
Dostupnosť: V sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
| 1+ | 111.22€ (133.46€ ) |
| 10+ | 109.15€ (130.98€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
DeviceNet, CANopen
Female straight
M12, 5-pole
A-coded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 60 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Operating Voltage (only UL Listed) | max. 30 V AC/DC |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879199575 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 803 |
| Approval (cable) | cURus (AWM style 20549/10578); CE compliant |
| Cable Weight [g/m] | 63,12 g |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 78 Ω/km (data pair, max. 54 Ω/km (power pair); (20 °C) |
| AWG | similar to AWG 24 (0.25 mm²); similar to AWG 22 (0.34 mm²) |
| Wire-Ø Incl. Isolation | 2.1 mm ±5% (0.25 mm²); 1.5 mm ±5% (0.34 mm²) |

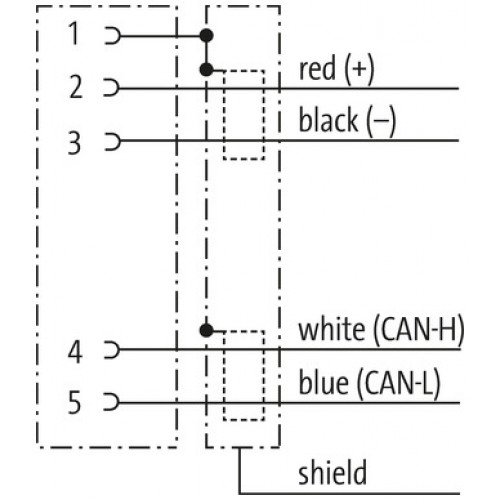

| Color/numbering Of Wires | wh, bl (data pair); bk, rd (power pair) |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.9 mm ±5% |
| Color (jacket) | violet |
| Nominal Voltage | 300 V |
| Test Voltage | 2000 V AC (test duration 1 min) |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 6× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 1 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Optical Shield Cover | min. 65% |
| Thermal Resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Form | |
| Form | 13225 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Stripping Length (jacket) | 20 mm |
| Material (gasket) | FKM |
