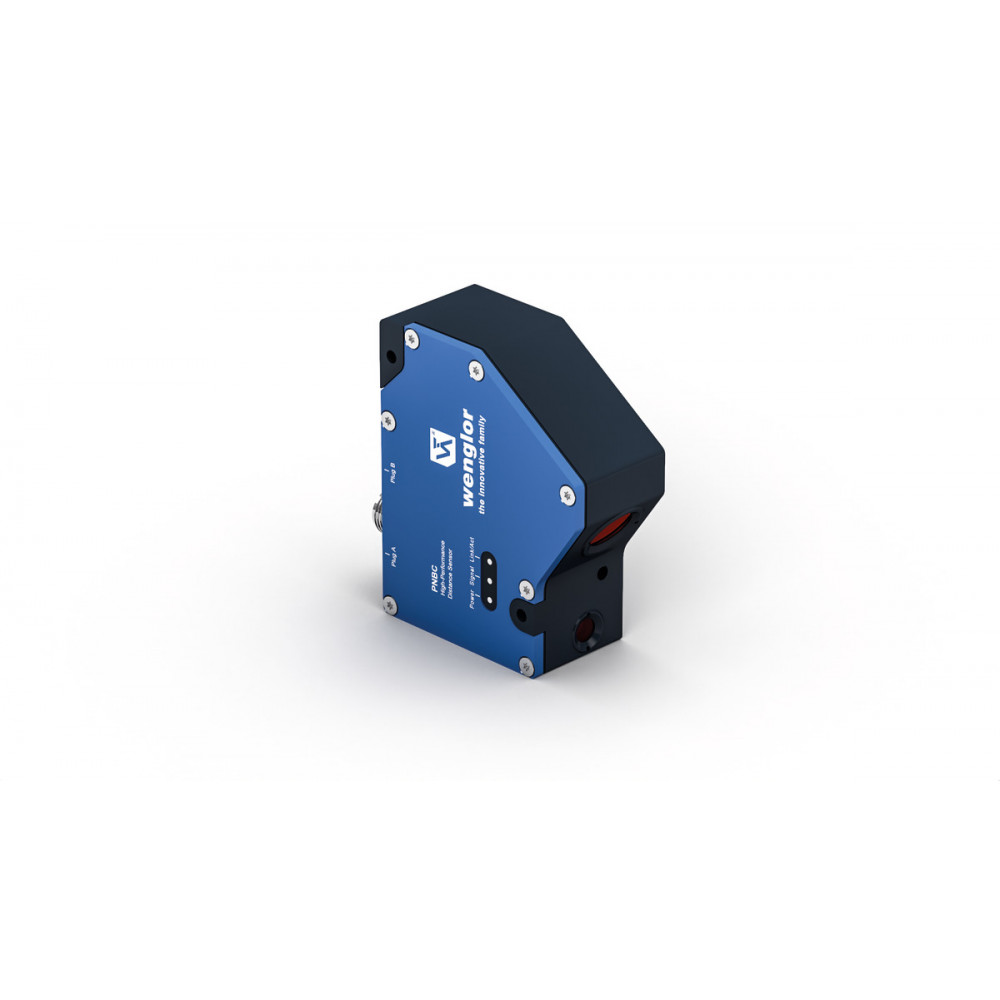

PNBC003 Laser Distance Sensor High-Precision
Kód EXIM-TECH PNBC003
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
PNBC003 Laser Distance Sensor High-Precision
Sensors from the PNBC range work with a high resolution CMOS line array and determine distance to the object by means of angular measurement. Top quality optics permit measured values with 16-bit resolution. Thanks to proven algorithms, stable measured values are obtained even for complex surfaces, for example sheet metal with speckle effect. They demonstrate outstanding accuracy with maximum linearity deviation of just 0.05%, and required only a short warm-up phase thanks to minimized temperature drift. Values are read out simultaneously via the analog output and the interface. Up to 4 switching outputs can be taught in externally. An incremental encoder input rounds the product out.
Kód produktu od výrobcu: PNBC003Kód EXIM-TECH PNBC003
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 3951.60€ (4860.47€ ) |
| 10+ | 3375.33€ (4050.39€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Optical Data | |
| Light Source | Laser (red) |
| Service Life (T = +25 °C) | 100,000h |
| Max. Ambient Light | 10,000Lux |
| Light Spot Diameter | <0.25mm |
| Working Range | 40...60mm |
| Wave length | 658nm |
| Laser Class (EN 60825-1) | 2 |
| Measuring Range | 20mm |
| Resolution | 0.3µm |
| Linearity Deviation | 10µm |
| Electrical Data | |
| Supply Voltage | 15...30V DC |
| Current Consumption (Ub = 24 V) | 280mA |
| Switching Frequency | 15kHz |
| Response Time | <33µs |
| Temperature Drift | 0.005%/K |
| Temperature Range | -10...40°C |
| Switching Output Voltage Drop | <1.5V |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Protection Class | III |
| Switching Output/Switching Current | 100mA |
| Interface | Ethernet TCP/IP |
| Number Of Switching Outputs | 4 |
| Teach Mode | VT, FT |
| Baud Rate | 100Mbit/s |
| FDA Accession Number | 1620645-000 |
| Analog Output | 4...20 mA |
| Output Rate | 10...30,000/s |

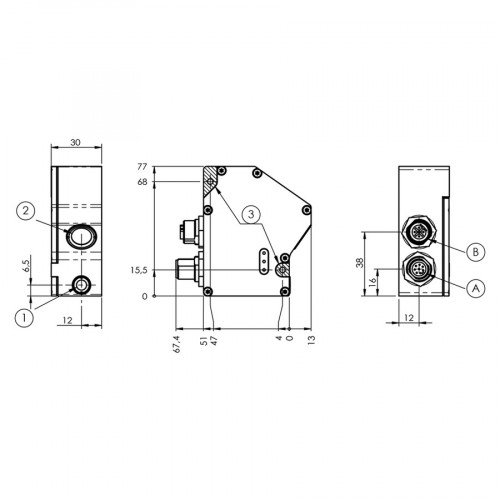

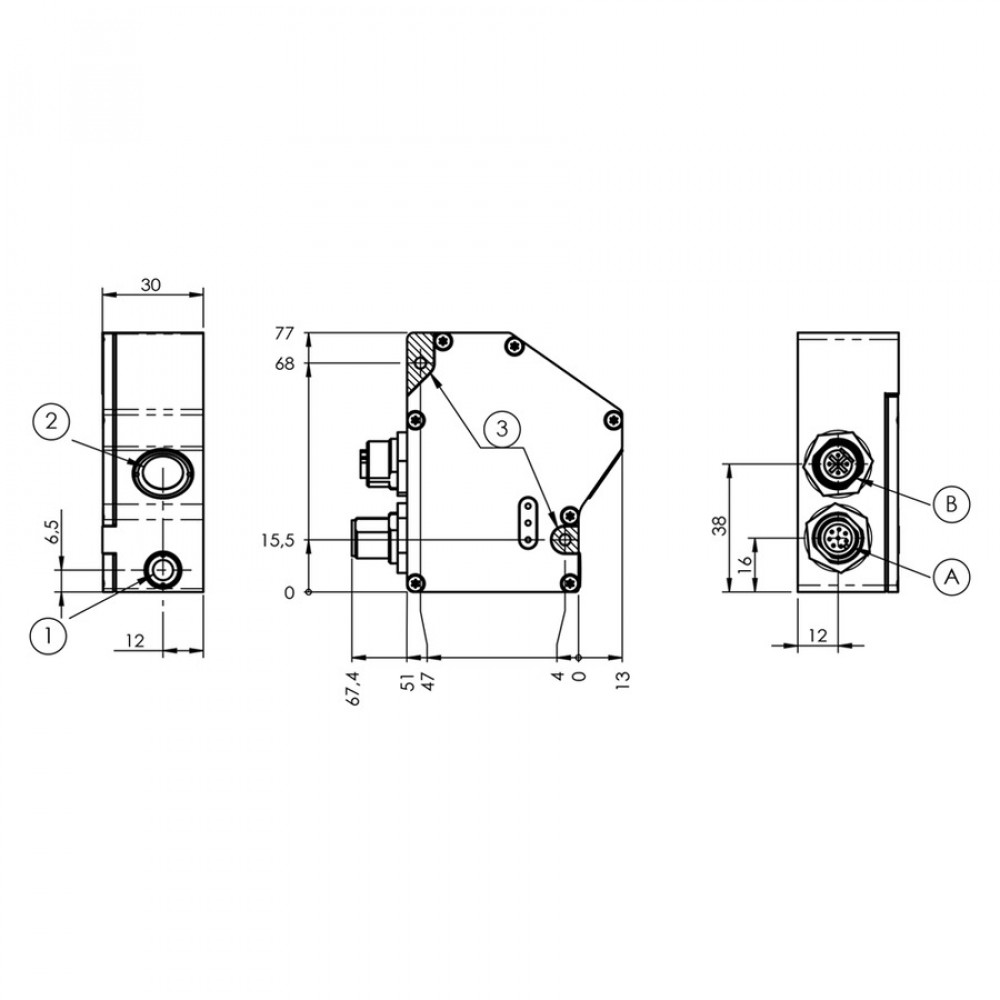

| Mechanical Data | |
| Setting Method | Teach-In |
| Housing Material | Aluminum |
| Degree Of Protection | IP67 |

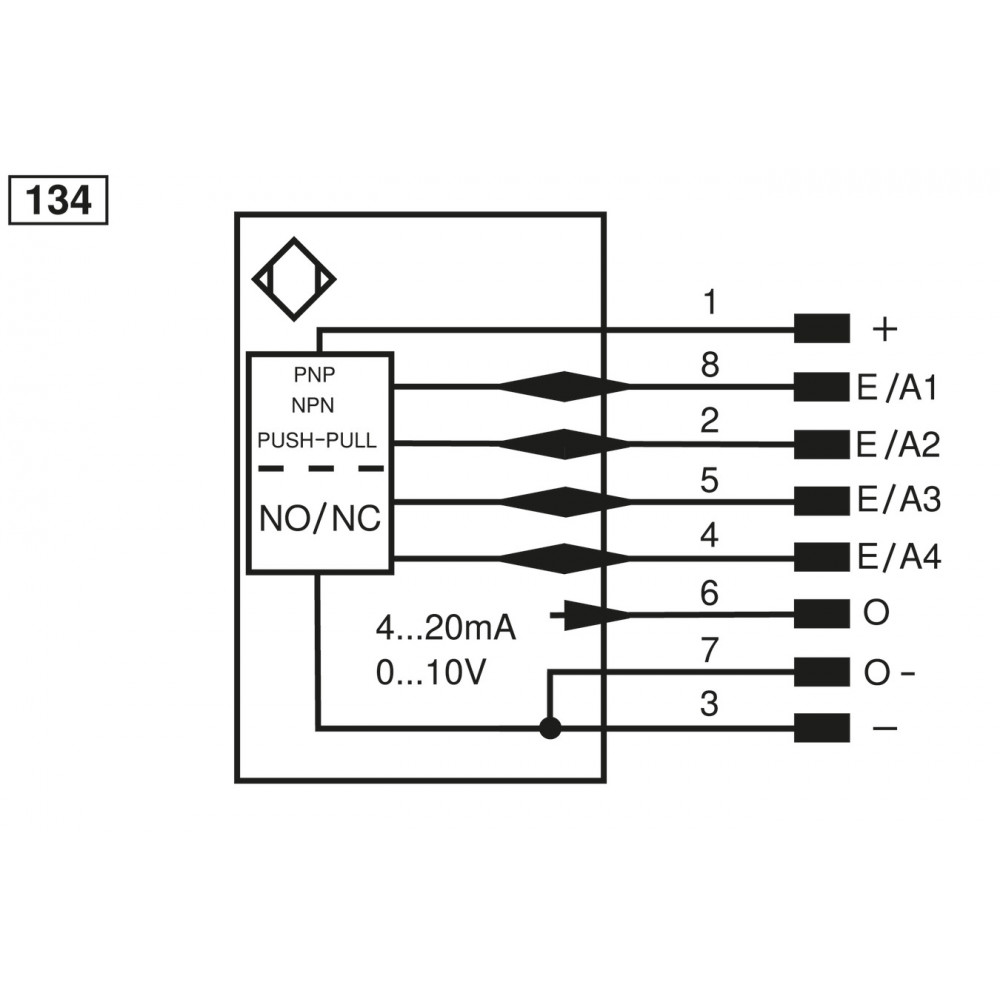

| Connection | M12 × 1; 8-pin |
| Optic Cover | Glass |
| Type Of Connection Ethernet | M12 × 1; 4-pin, D-cod. |
| Weight | 220g |
| General data | |
| Web Server | yes |
| Scope Of Delivery | Calibration report |
| Output | |
| Push-Pull | yes |
| Adjustable parameters | |
| Circuit | NC NC/NO NO |
| Output | Analog Output Push-pull NPN PNP |
| Analog Output | 0...10 V 4...20 mA |
