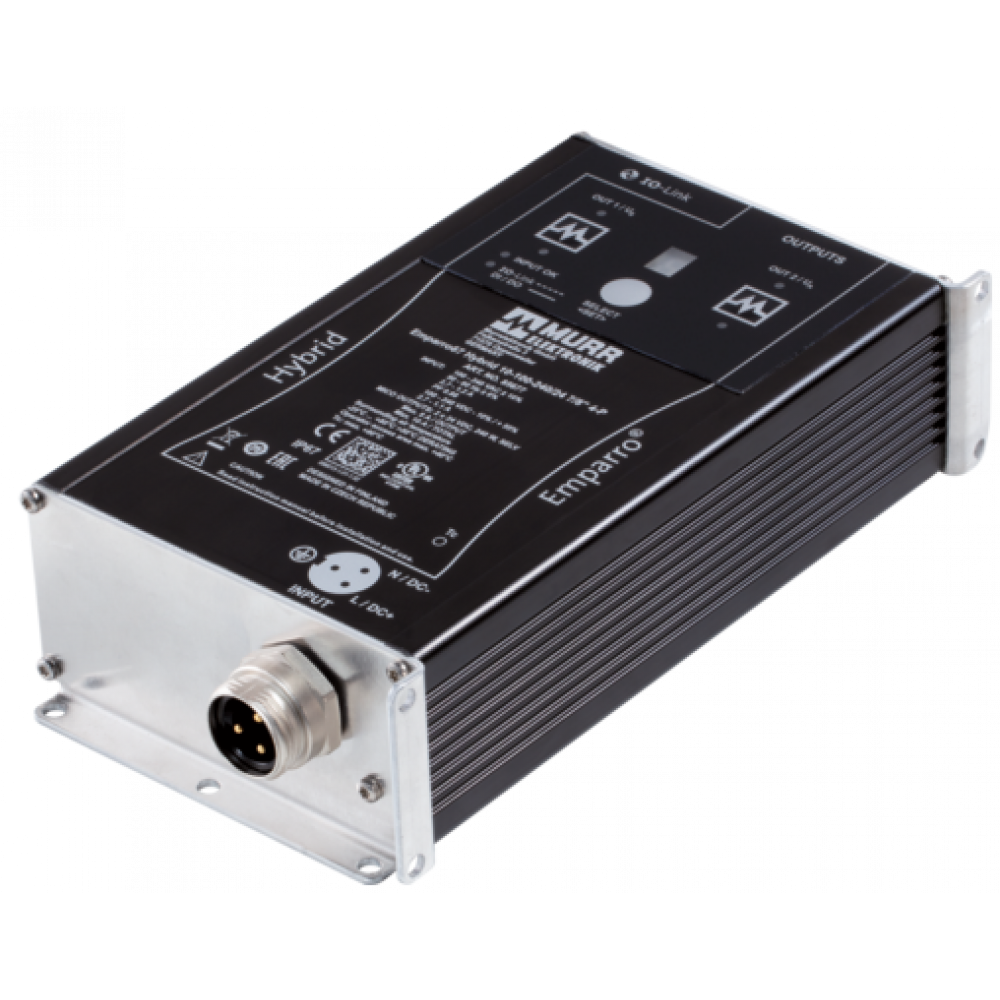

85687 EMPARRO67 HYBRID POWER SUPPLY 1-PHASE, 2-CHANNELS
Kód EXIM-TECH 85687
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
1+ | 544.25€ (653.10€ ) |
10+ | 544.25€ (653.10€ ) |
20+ | Na dopyt |
Pridaj k objednávke
2× MICO 7/8" IOL
4-pole
Current: 10 A
INPUT: 90...265 V AC/90...265 V DC
OUTPUT: 24...28 V DC
Preventive Diagnostic
Over current protection device
controllable via IO-Link
Commercial data | |
Country Of Origin | CZ |
Customs Tariff Number | 85044090 |
EAN | 4048879844406 |
EClass | 27049002 |
Packaging Unit | 1.000 |
Input | |
Input Current | 1.2 A (240 V AC) |
Input Voltage | 90...265 V AC/90...265 V DC |
Connection | 7/8" (male), 3-pole |
Inrush Current After 1 Ms | max. 5.9 A (230 V AC) |
Frequency | 50...60 Hz |
Input Fuse (internal) | 6.3 A (T) |
Power Factor | 0.88 (230 V AC) |
General data | |
Mounting Method | 6 hole screw mounting |

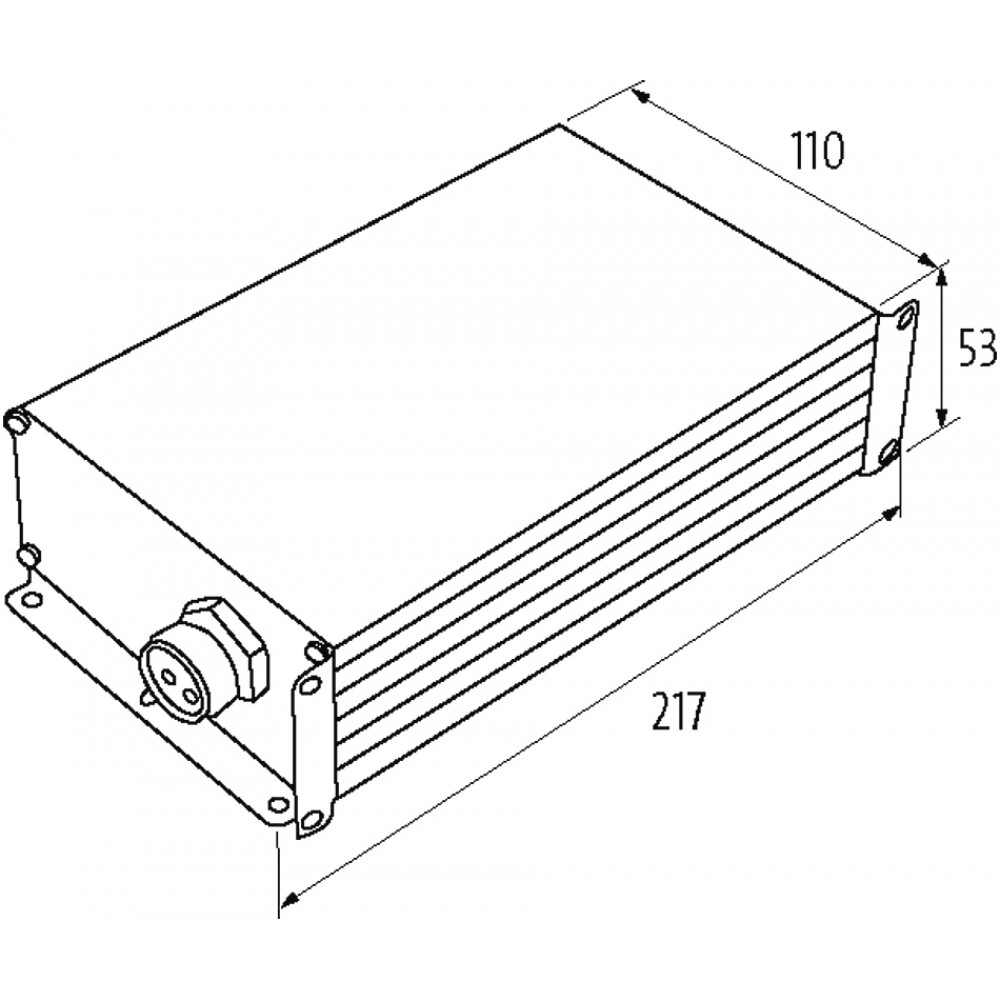

Dimensions H×W×D | 216×110×53 mm |
Temperature Range | -25...+50 °C, ...+80 °C derating (storage temperature -25...+85 °C) |
Protection | IP67 |
Relative Humidity | 4...100% |
Standards | IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2 |
Efficiency | 91.6% (115 V AC); 92.8% (230 V AC) |
MTBF | 430 000 h |
Output | |
Output Current | max. 8 A (per channel), max. 10 A (total) |
Output Voltage | 24 V DC (PELV), ±1%; 24...28 V adjustable |
LED Display | LED (green) |
Connection | 7/8" (female), 4-pole |
Mains Failure Bridging Time | min. 20 ms (230 V AC) |
Ripple | max. 10 mV eff/rms |
Spikes | max. 150 mV ss/pp |
Unit Protection | Short-circuit, overload and temperature |
Parallel Usage/serial Usage | no |
No. Of Channels | 2× MICO (Over current protection device) |
