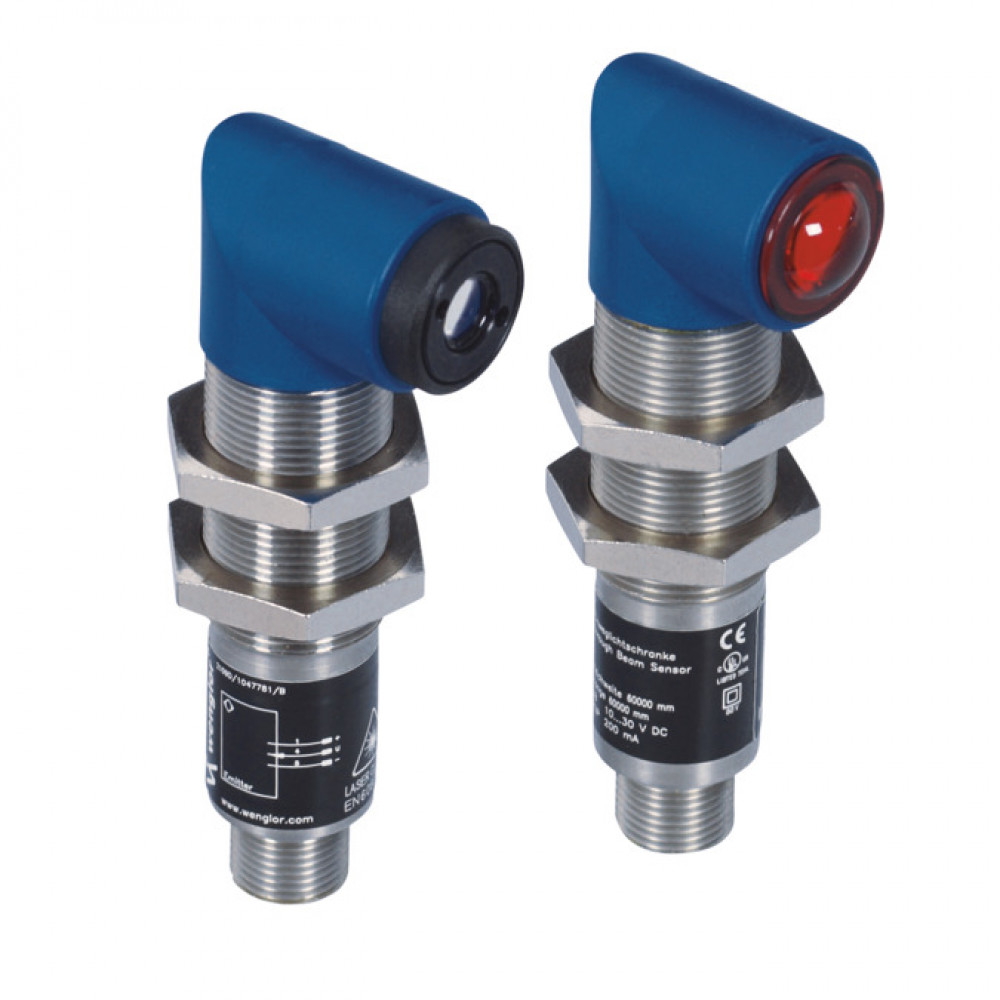

ZW600PCT3 Through-Beam Sensor
Kód EXIM-TECH ZW600PCT3
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
1+ | 163.90€ (196.68€ ) |
10+ | 149€ (178.80€ ) |
20+ | Na dopyt |
Pridaj k objednávke
Optical Data | |
Opening Angle | 12° |
Range | 60,000mm |
Switching Hysteresis | <15% |
Light Source | Laser (red) |
Service Life (T = +25 °C) | 100,000h |
Max. Ambient Light | 10,000Lux |
Laser Class (EN 60825-1) | 2 |
Smallest Recognizable Part | 50µm |
Electrical Data | |
Supply Voltage | 10...30V DC |
Current Consumption (Ub = 24 V) | <15mA |
Switching Frequency | 5kHz |
Response Time | 100µs |
Temperature Drift | <10% |
Temperature Range | -25...60°C |
Switching Output Voltage Drop | <2.5V |
Reverse Polarity Protection | yes |
Protection Class | III |
Switching Output/Switching Current | 200mA |
Short Circuit And Overload Protection | yes |
Lockable | yes |
Teach Mode | NT, MT |
On-/Off-Delay (RS-232) | 0...5s |
Sensor Type | Receiver |
Mechanical Data | |
Setting Method | Teach-In |
Housing Material | Stainless Steel |
Full Encapsulation | yes |
Degree Of Protection | IP67 |
Connection | M12 × 1; 4-pin |
Safety-relevant Data | |
MTTFd (EN ISO 13849-1) | 2,388.98a |
Output | |
PNP NC | yes |
RS-232 With Adapterbox | yes |
Adjustable parameters | |
Circuit | NC NC/NO NO |
