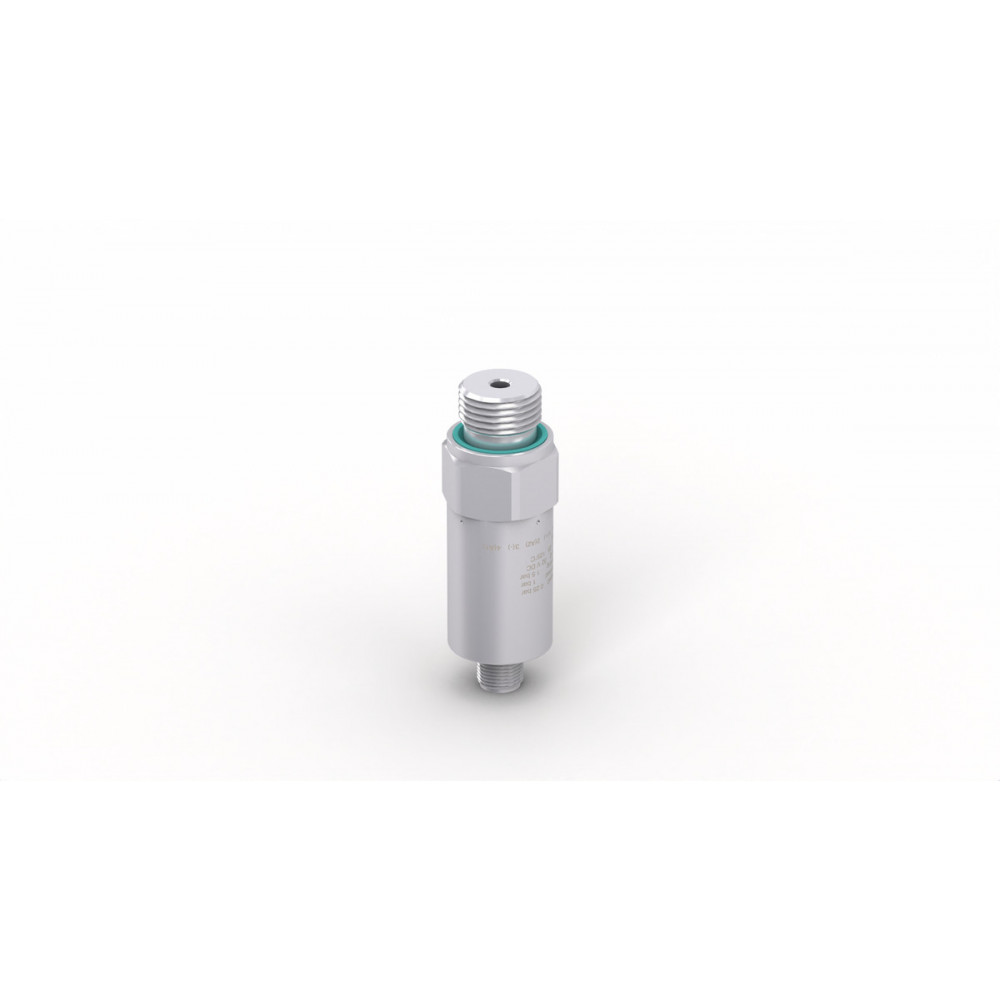

FX5P002 Pressure Sensor with IO-Link
Kód EXIM-TECH FX5P002
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
FX5P002 Pressure Sensor with IO-Link
weFlux² pressure sensors precisely measure the relative pressure of any desired media. Depending on application requirements, either two switching outputs or one switching output and one analog output can be selected to output measured values. Furthermore, weFlux² pressure sensors offer new dimensions in individual parameter configurability. Sensor parameters, filter and output functions as well as the unit of measurement of the measured values (bar, PSI or Pascal) can be adjusted as needed.
Kód produktu od výrobcu: FX5P002Kód EXIM-TECH FX5P002
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 215.60€ (265.19€ ) |
| 10+ | 200.9€ (241.08€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Sensor-specific data | |
| Measuring Range | -1...10bar |
| Medium | Liquids, gases |
| Measuring Error (total) | ±0.5% |
| Measurement Type | relative |
| Maximum Overload Pressure | 20bar |
| Bursting Pressure | 30bar |
| Pressure Response Time (t90) | <10ms |
| Hysteresis | < ±0.1% |
| Linearity Deviation | < ±0.5% |
| Zero-point Error | < ±0.1% |
| Repeat Accuracy | < ±0.1% |
| Temperature Coefficient Zero-point | <± 0,15% /10K |
| Temperature Coefficient Range | <± 0,2% /10K |
| Environmental conditions | |
| Temperature Of Medium | -10...125°C** |
| Ambient Temperature | -10...80°C |
| EMC | DIN EN 61326-2-3 |
| Shock Resistance Per DIN IEC 68-2-27 | 50 g / 11 ms |
| Vibration Resistance Per DIN IEC 60068-2-6 | 10 g (10...2000 Hz) |
| Storage Temperature | -10...80°C |
| Electrical Data | |
| Supply Voltage | 12...32V DC |
| Current Consumption (Ub = 24 V) | <15mA |
| Switching Output Voltage Drop | <1.5V |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Protection Class | III |
| Switching Output/Switching Current | 100mA |
| Interface | IO-Link V1.1 |
| Number Of Switching Outputs | 2 |
| Analog Output | 4...20 mA/0...10 V |
| Current Output Load Resistance | <500Ohm |
| Signal Source | Pressure |
| Resolution | >11bit |
| Analog Outputs | 1 |
| Voltage Output Load Resistance | >1kOhm |
| Mechanical Data | |
| Setting Method | IO-Link |
| Housing Material | 1.4404 |
| Degree Of Protection | IP65 * |
| Connection | M12 × 1; 4-pin |
| Material In Contact With Media | 1.4404; FKM; ceramic |
| Sensor Element | Ceramic membrane |
| Seal Material | FKM |
| Safety-relevant Data | |
| MTTFd (EN ISO 13849-1) | 1,157.11a |
| Output | |
| IO-Link | yes |
| PNP NO | yes |
| Analog Output | yes |
| Adjustable parameters | |
| Circuit | NC NC/NO NO |
| Output | Analog Output Push-pull NPN PNP |
| Other Parameters | 2 switching points |
| Analog Output | 0...10 V 4...20 mA |
