FXPL002 Fill-level Sensor with IO-Link
Kód EXIM-TECH FXPL002
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF

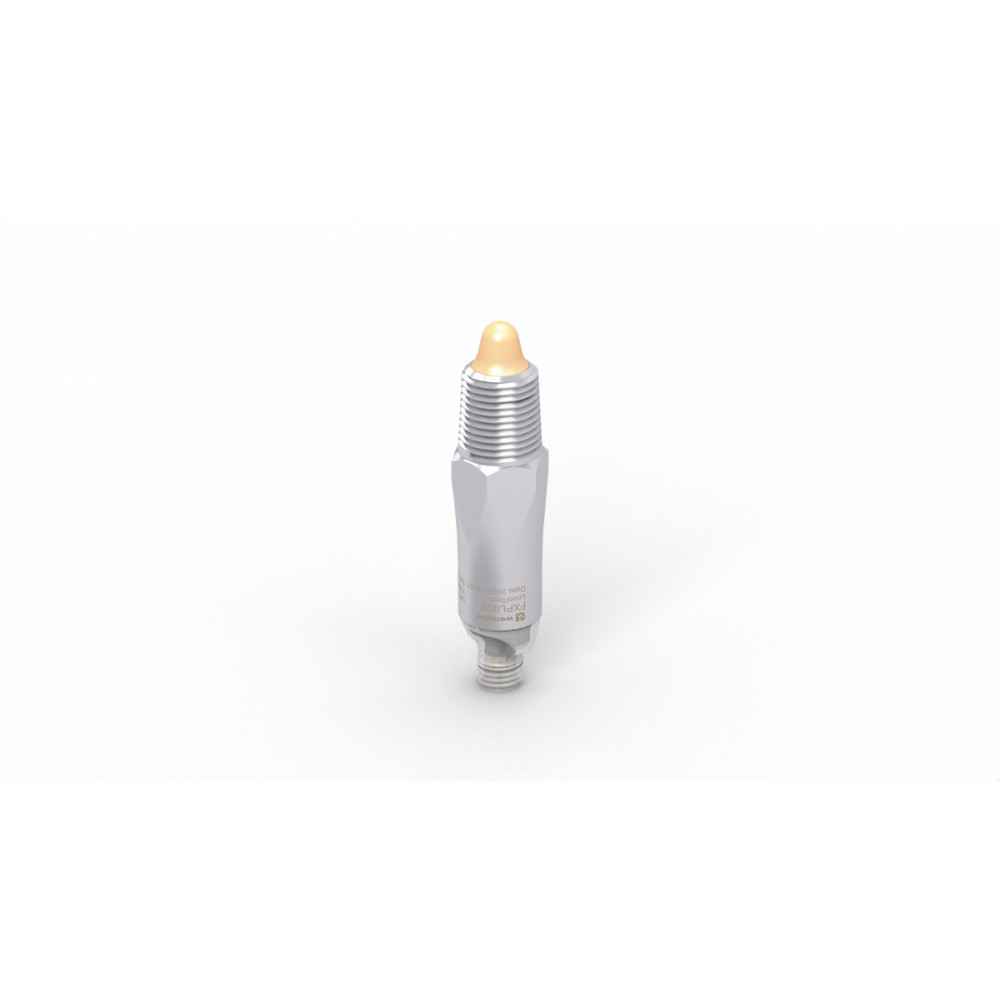

FXPL002 Fill-level Sensor with IO-Link
LevelTech fill-level sensors work in accordance with the innovative frequency sweep principle. With the help of this functional principle, the sensors detect any desired medium on the basis of the measured resonant frequency. With their two adjustable switching outputs, the sensors are capable of differentiating between foam and liquid or two different media. Sensor parameters, as well as filter and output functions, can be individually configured via IO-Link. The stainless steel housing is FDA compliant and can be installed in the tightest of spaces thanks to its compact design.
Kód produktu od výrobcu: FXPL002Kód EXIM-TECH FXPL002
Výrobca: wenglor sensoric
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 179.30€ (220.54€ ) |
| 10+ | 167.08€ (200.49€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
| Sensor-specific data | |
| Measuring Range | 1.5 |
| Medium | Liquids, granulate, powder |
| Response Time | 0.04s |
| Measuring Principle | Frequency sweep |
| Measuring Range > DK | 1.5 |
| Environmental conditions | |
| Ambient Temperature | -40...85°C |
| Pressure Resistance | 100bar |
| EMC | DIN EN 61326 * |
| Vibration Resistance Per DIN IEC 60068-2-6 | 1,6 mm p-p (2...25 Hz), 4 g (25...100 Hz) |
| Storage Temperature | -40...85°C |
| Media Temperature TM (TU < 50 °C) | -40...115°C |
| Media Temperature TM Brief (TU < 50 °C, T < 1 H) | -40...130°C |
| Electrical Data | |
| Supply Voltage | 8...36V DC |
| Current Consumption (Ub = 24 V) | <35mA |
| Switching Output Voltage Drop | <0.7V |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Switching Output/Switching Current | 100mA |
| Interface | IO-Link V1.1 |
| Number Of Switching Outputs | 2 |
| Signal Source | Change of medium |
| Power-up Time | <3s |
| Leakage Current | <100µA |
| Mechanical Data | |
| Setting Method | Teach-in/IO-Link |
| Housing Material | 1.4404 |
| Degree Of Protection | IP67/IP69K |
| Connection | M12 × 1; 4-pin |
| Material In Contact With Media | PEEK Natura 1.4404 |
| Process Connection | 1/2” NPT |
| Connector Plug Material | Polycarbonate |
| Safety-relevant Data | |
| MTTFd (EN ISO 13849-1) | 686a |
| Function | |
| Attenuation (adjustable) | 0...10s |
| Selective Fill-level Measurement | yes |
| Output | |
| IO-Link | yes |
| Push-Pull | yes |
| Adjustable parameters | |
| Circuit | NC NC/NO NO |
| Output | Push-pull NPN PNP |
| Other Parameters | 2 switching points |
