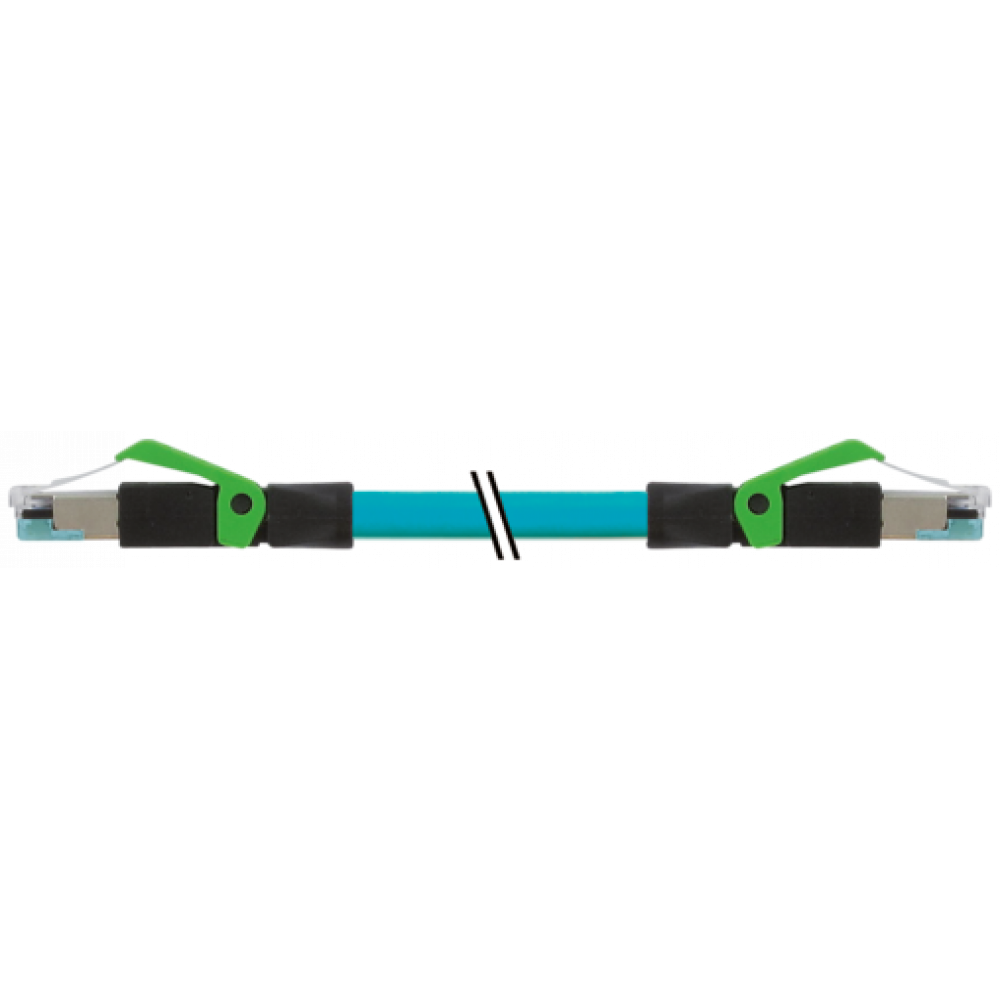

7700-74301-S4U2500 RJ45 male 0° / RJ45 male 0° shielded
Kód EXIM-TECH 7700-74301-S4U2500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Ethernet CAT5
Male straight – male straight
RJ45 – RJ45, 4-pole
shielded
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7700-74301-S4U2500 RJ45 male 0° / RJ45 male 0° shielded
TPE 2x2x24AWG SF/UTP CAT5e bu UL/CSA. CM 25m
Kód produktu od výrobcu: 7700-74301-S4U2500Kód EXIM-TECH 7700-74301-S4U2500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 155.48€ (191.24€ ) |
| 10+ | 152.83€ (183.39€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT5
Male straight – male straight
RJ45 – RJ45, 4-pole
shielded
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 4 |
| Operating Voltage | max. 60 V DC |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | up to 100 Mbit/s full duplex |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Rated Surge Voltage | 1.0 kV |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444210 |
| EAN | 4048879684323 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | S4U |
| Cable Weight [g/m] | 55,66 g |
| Material (wire) | Cu wire, tin plated |
| Construction (core) | 7× 0.203 mm |
| Diameter (core) | 2× 2× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | HDPE |
| Wire-Ø Incl. Isolation | 1.22 mm ±5% |

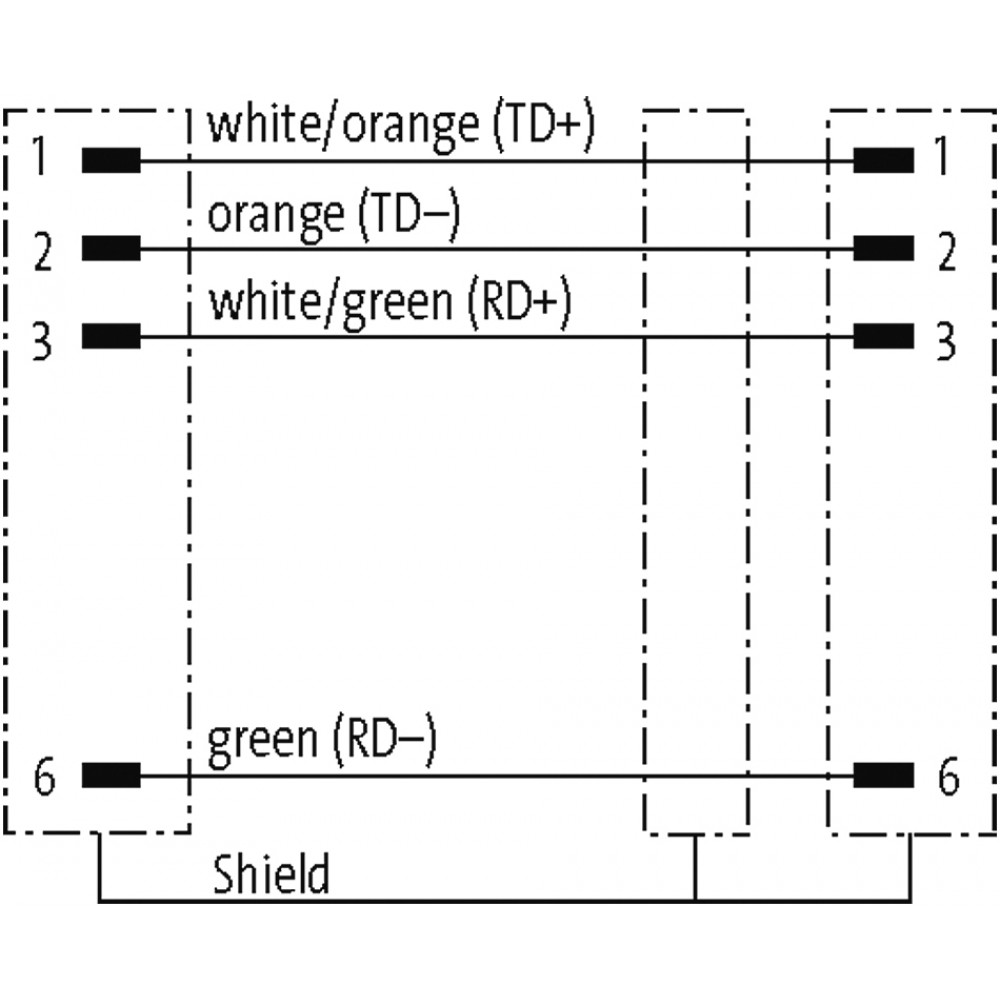

| Color/numbering Of Wires | (wh-or, or) + (wh-gn, gn) |
| Shield | yes |
| Material (jacket) | TPE |
| Outer-Ø (jacket) | 6.6 mm ±5% |
| Color (jacket) | blue |
| Nominal Voltage | 1500 V AC |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -40...+80 °C |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 1 Mio. (25 °C) |
| Travel Speed (C-track) | max. 1.2 m/s |
| Acceleration (C-track) | max. 2.4 m/s² |
| Optical Shield Cover | min. 75% |
| Torsion Stress | max. 3 Mio. (25 °C) |
| No. Of Torsion Cycles | max. 3 Mio. (25 °C) |
| Torsion Speed | 60 cycles/min |
| Form | |
| Form | 74301 |
| General data | |
| Mounting Method | inserted |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
