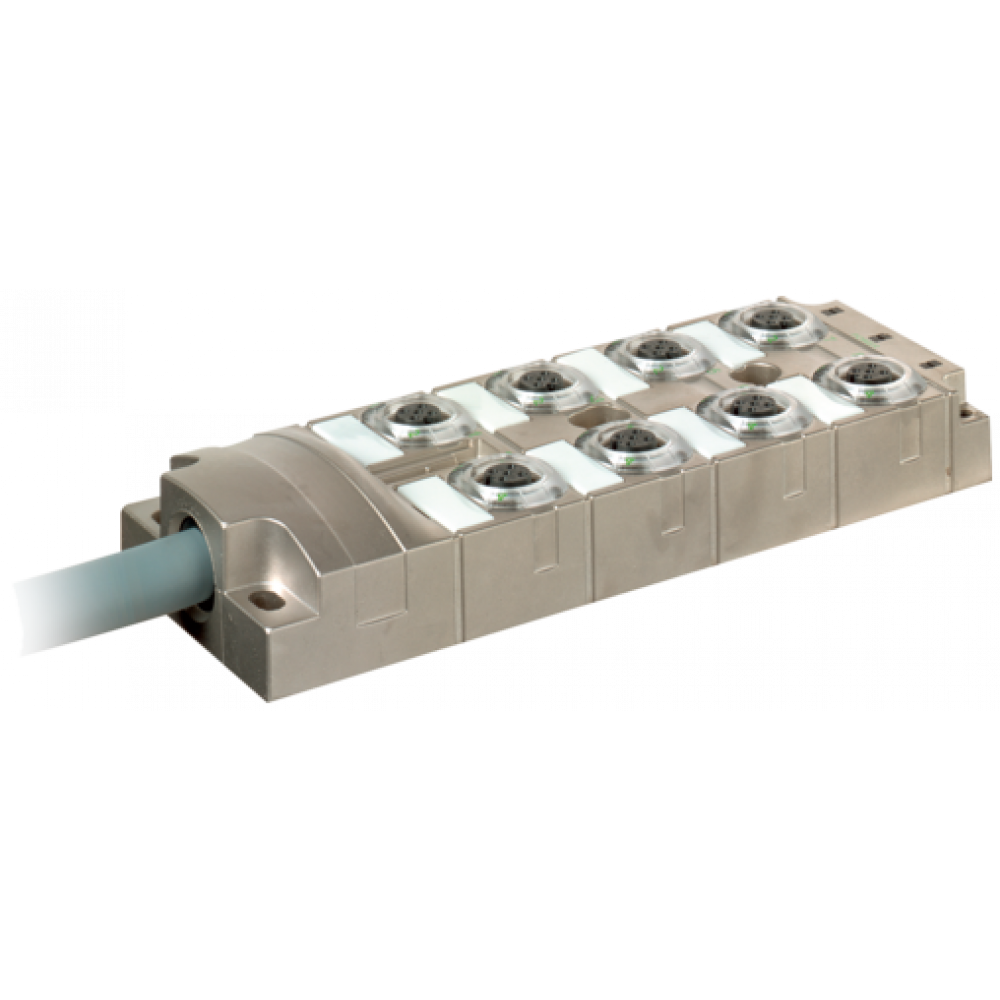

27500 MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE
Kód EXIM-TECH 27500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
27500 MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE
5.0m PUR 16x0,34+5x0,75, UL/CSA
Kód produktu od výrobcu: 27500Kód EXIM-TECH 27500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 252.38€ (310.42€ ) |
| 10+ | 255.43€ (306.52€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
27500 MVP-METALL, 8XM12, 5POLE, PRE-WIRED CABLE
| Technical Data | |
| Operating Voltage | 24 V DC (EN 61131-2), potential separation 0 V for left/right side |
| Locking Of Ports | Screw thread (M12×1 mm) |
| Protection | IP65, IP67, IP68 inserted and tightened (EN 60529) |
| Housing | Zinc die casting, matte nickel plated |
| Total Current | max. 10 A |
| Operating Current (contact 3) | max. 0.5 A (shutoff 0.7...0.9 A) |
| Current Consumption | max. 35 mA |
| LED Display | LED (green) |
| Diagnostic Output | active high, max. load 25 mA, wire (brown 2) |
| Required Power Supply With Max. Ports | min. 10 A |
| LED Display Per Port | LED (yellow) |
| Unit Protection | pulse switching |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879063746 |
| EClass | 27279219 |
| Packaging Unit | 1.000 |
| Description | |
| Functional Description | All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-reseting). Supply voltage of other ports remains the same. In case of a fault the DIAGNOSTIC signal “active high” |
| Cables | |
| No./diameter Of Wires | 16× 0.34 + 5× 0.75 mm² |
| Wire Isolation | TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye) |
| C-track Properties | 5 Mio. |
| Outer Ø | 11.5 mm ±5% |
| Cable Number | 403 |
| Approval (cable) | UL (AWM-Style 20233/10042), CSA; CE conform |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Diameter (core) | 16× 0.34 + 5× 0.75 mm² |
| AWG | similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²) |
| Material (wire Isolation) | TPE-E |
| Shore Hardness (wire Isolation) | 55 ±5 D |
| Shield | yes |
| Material (jacket) | PUR (UL/CSA) |
| Shore Hardness (jacket) | 85 ±5 A |
| Jacket Color | gray |
| Nominal Voltage | 300/500 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -40...+90 °C |
| Temperature Range (mobile) | -25...+80 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel Speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 5 m/s² |

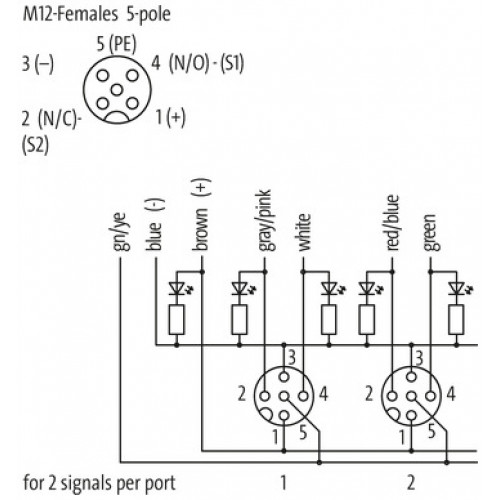

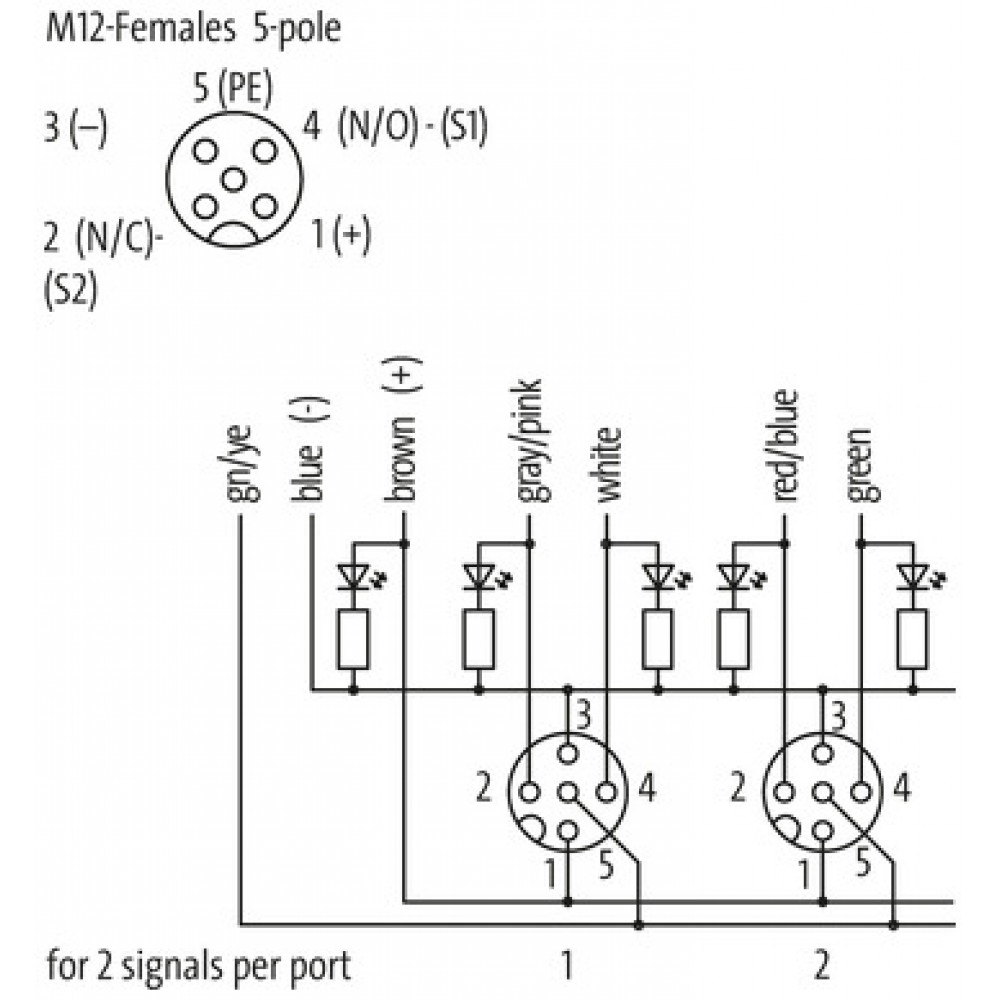

| Contact Layout | |
| PIN 1 | (+) |
| PIN 3 | (-) |
| PIN 4 | (NO)/(S1) |
| PIN 5 | (Earth) |
| LED (green) | |
| PIN 2 | (NC)/(S2) |
| General data | |

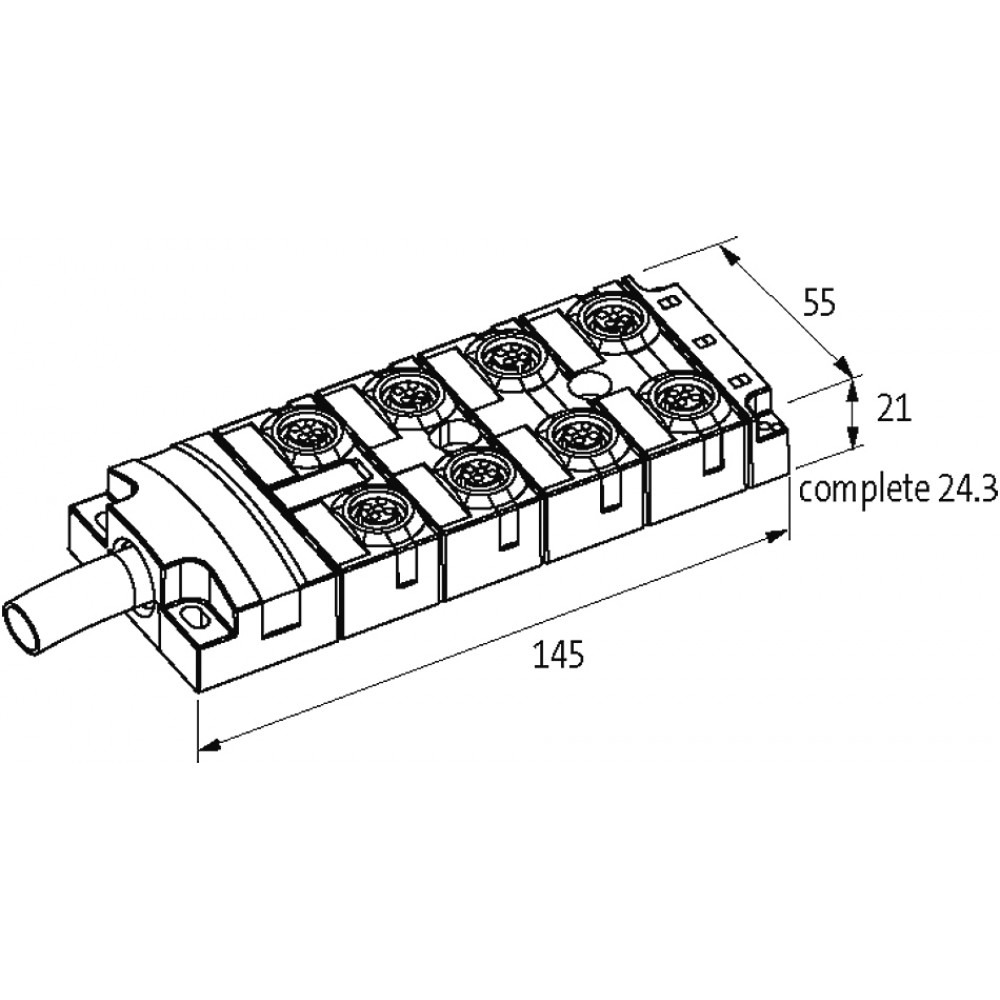

| Dimensions H×W×D | 145×55×21 mm |
| Temperature Range | -20...+60 °C |
