7080-18021-R262000 MSUD valve plug A-18mm with cable
Kód EXIM-TECH 7080-18021-R262000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7080-18021-R262000 MSUD valve plug A-18mm with cable
RADOX EM 104 3x0.75 bk 20m
Kód produktu od výrobcu: 7080-18021-R262000Kód EXIM-TECH 7080-18021-R262000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 193.88€ (238.47€ ) |
| 10+ | 194.96€ (233.95€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
MSUD

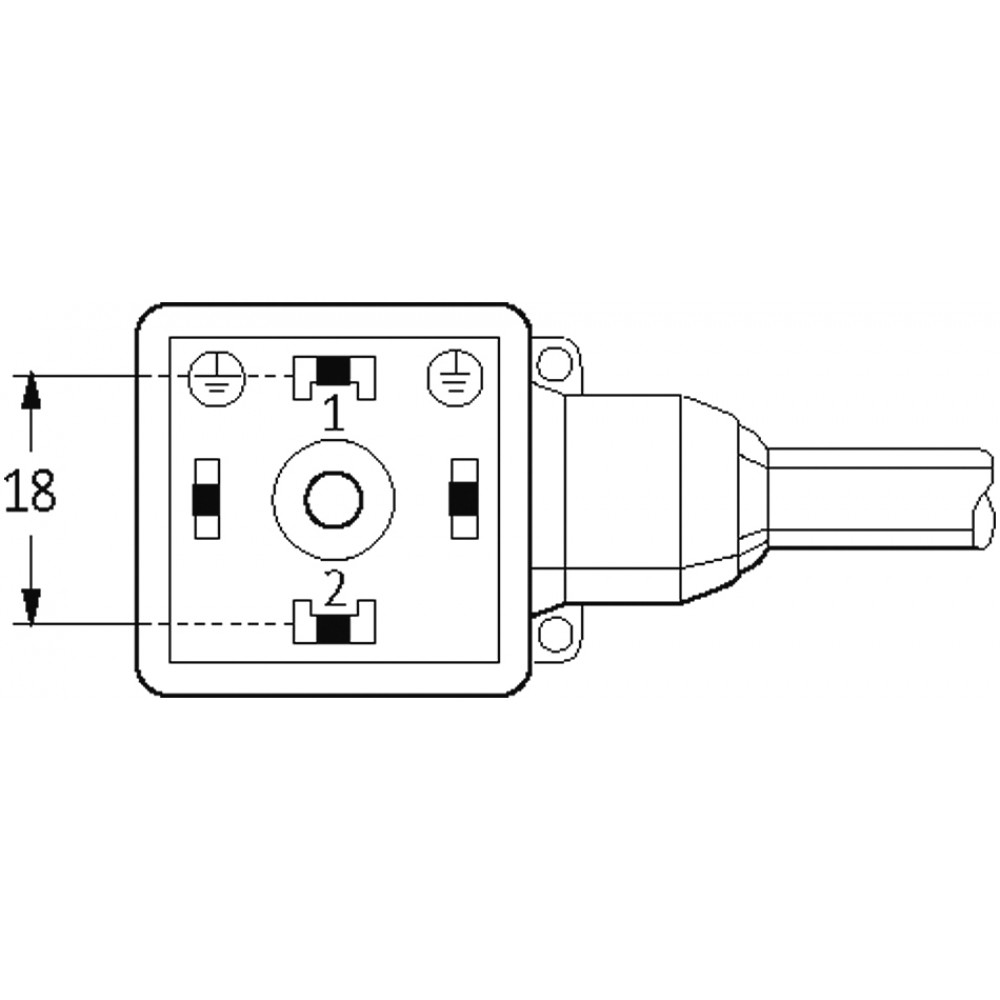

Form A (18 mm)
24 V AC ±20% / DC ±25%

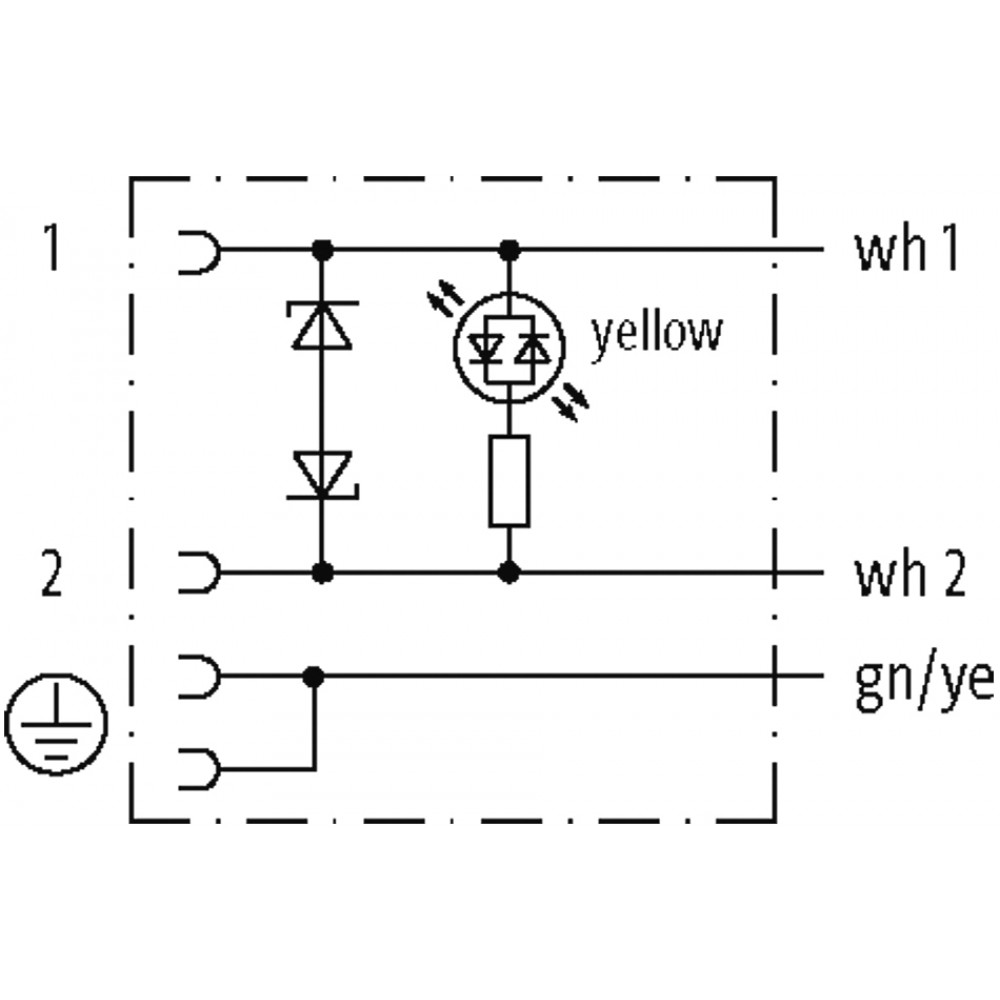

LED and suppression
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Form A (18 mm)
24 V AC ±20% / DC ±25%
LED and suppression
Bridged PE
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| Operating Voltage | 24 V AC ±20% / DC ±25% |
| Material | PBT |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | M3 (recommended torque 0.4 Nm) |
| Housing | Black plastic (gray on request) |
| Current Consumption | max. 15 mA |
| LED Display | yellow |
| Material Group | IEC 60664-1, category I |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Steel (galvanized) |
| Additional Suppressor | Diode/Z-Diode |
| Switch Off Peak | max. 55 V |
| Switch Off Delay Time | max. 20 ms |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879691062 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 3× 0.75 mm² |
| Wire Isolation | Radox EI 303 |
| Outer Ø | 5.15 mm ±5% |
| Cable Identification | R26 |
| Cable Number | R26 |
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable Weight [g/m] | 56,10 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.23 mm |
| Construction (core) | 19× 0.23 mm |
| Diameter (core) | 3× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | Radox EI 303 |
| Wire-Ø Incl. Isolation | 1.62 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Material (jacket) | Radox EM 104 |
| Outer-Ø (jacket) | 5.15 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Nominal Voltage | 600/1000 V AC |
| Test Voltage | 3500 V AC |
| Current Load Capacity | according to DIN VDE 0298-4 |
| Temperature Range (fixed) | -50...+120 °C |
| Temperature Range (mobile) | -25...+90 °C |
| Bend Radius (fixed) | 3× outer-Ø |
| Bend Radius (moving) | 4× outer-Ø |
| Stranding Combination | 3 wires twisted |
| Form | |
| Form | 18021 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Stripping Length (jacket) | 50 mm |
| Material (gasket) | PUR |
