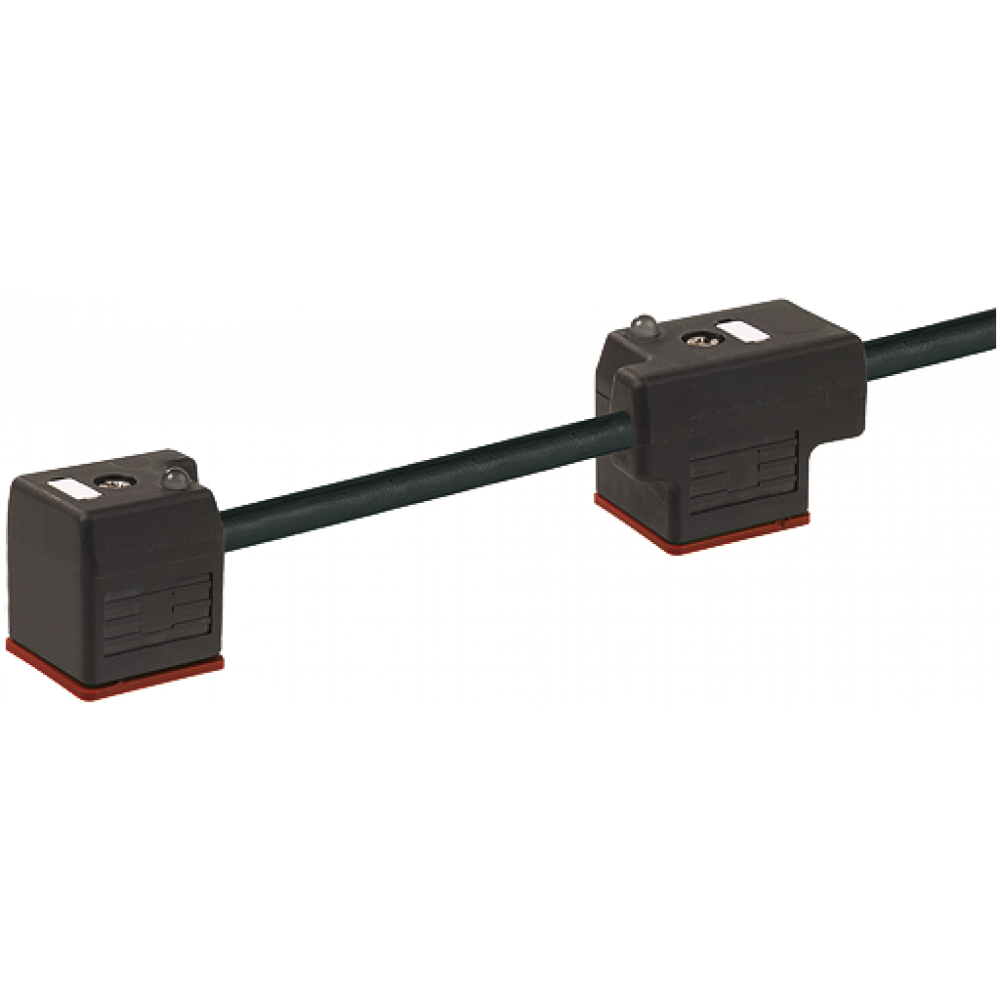

7072-58021-6370500 MSUD Xtreme double valve A-18mm with cable
Kód EXIM-TECH 7072-58021-6370500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7072-58021-6370500 MSUD Xtreme double valve A-18mm with cable
PUR 4x0.75 bk UL/CSA+drag ch. 5m
Kód produktu od výrobcu: 7072-58021-6370500Kód EXIM-TECH 7072-58021-6370500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 47.85€ (58.85€ ) |
| 10+ | 47.77€ (57.32€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Form A (18 mm)
12...24 V AC/DC
LED and suppression
3-pole
Bridged PE
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
12...24 V AC/DC
LED and suppression
3-pole
Bridged PE
without cable sleeves
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| Operating Voltage | 12...24 V AC/DC |
| Material | PBT |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | M3 (recommended torque 0.4 Nm) |
| Protection | IP65, IP66K, IP67, IP68 inserted and tightened (EN 60529) |
| Housing | Black plastic (gray on request) |
| Current Consumption | max. 8 mA |
| LED Display | yellow |
| Material Group | IEC 60664-1, category I |
| Compression Gland | V2A nut/screw |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Suitable For Corrugated Tube (internal Ø) | without |
| Additional Suppressor | Diode/Z-Diode |
| Switch Off Peak | max. 55 V |
| Switch Off Delay Time | max. 20 ms |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879815376 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 4× 0.75 mm² |
| Wire Isolation | PP (bk num, gnye) |
| C-track Properties | 10 Mio. |
| Outer Ø | 6.5 mm ±5% |
| Cable Identification | 637 |
| Cable Type | 3 (PUR) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 69,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 42× 0.15 mm (multi-strand wire class 6) |
| Diameter (core) | 4× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 1.85 mm ±5% |
| Color/numbering Of Wires | bk numbered, gnye longitudinally striped |
| Shield | no |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 4 wires twisted |
| Thermal Resistance | flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2 |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±180°/m |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 58021 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Material (gasket) | Silicon |
