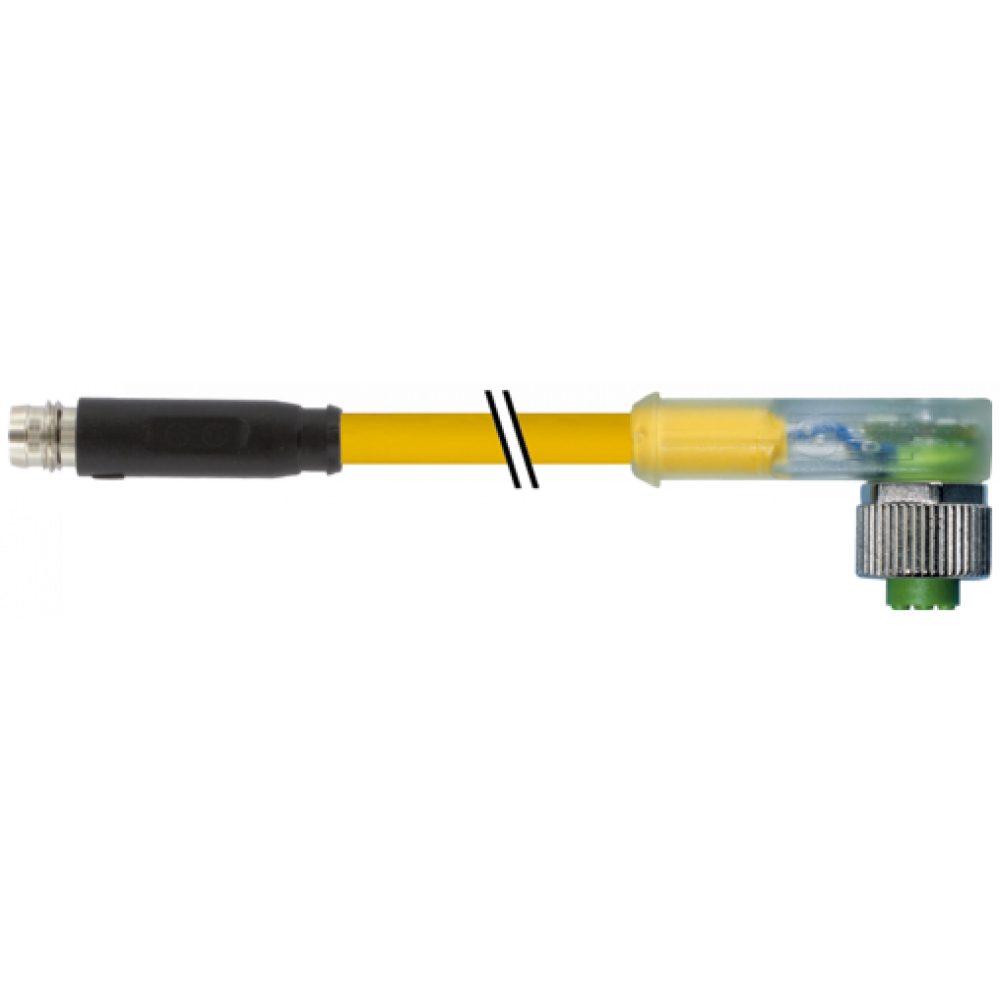

7000-88401-0200100 M8 male 0° snap-in/M12 fem. 90° A-cod.screw-in LED
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-88401-0200100 M8 male 0° snap-in/M12 fem. 90° A-cod.screw-in LED
PUR 3x0.25 ye UL/CSA 1m
Kód produktu od výrobcu: 7000-88401-0200100Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 19.65€ (24.17€ ) |
| 10+ | Na dopyt |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight – female 90°
M8 (Snap In) – M12, 3-pole
2× LED (PNP), (NPN) on request
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
M8 (Snap In) – M12, 3-pole
2× LED (PNP), (NPN) on request
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | 24 V DC ±25% |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing, M8 (Snap In) |
| Protection | IP65, IP66K, IP67 (M12) - IP65 (M8) |
| LED Display | yellow/green |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Zinc die casting, matte nickel plated (M12) |
| Coding | M12, A-coded |
| Suitable For Corrugated Tube (internal Ø) | M12 (10 mm); M8 (6.5 mm) |
| Operating Voltage (only UL Listed) | max. 30 V DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 020 |
| Cable Type | 2 (PUR/PVC) |
| Approval (cable) | UL (AWM-Style 20549/1731), CSA; CE conform |
| Cable Weight [g/m] | 26,62 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 3× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 43 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl |
| Shield | no |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 4.3 mm ±5% |
| Color (jacket) | yellow |
| Cable Labeling | see frame delivery specifications 7000-00000-001 |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | UL 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 10× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Stranding Combination | 3 wires twisted |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Form | |
| Form | 88401 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8) |
