7000-08912-6950150 M8 male 90° with cable, 180°
Kód EXIM-TECH 7000-08912-6950150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

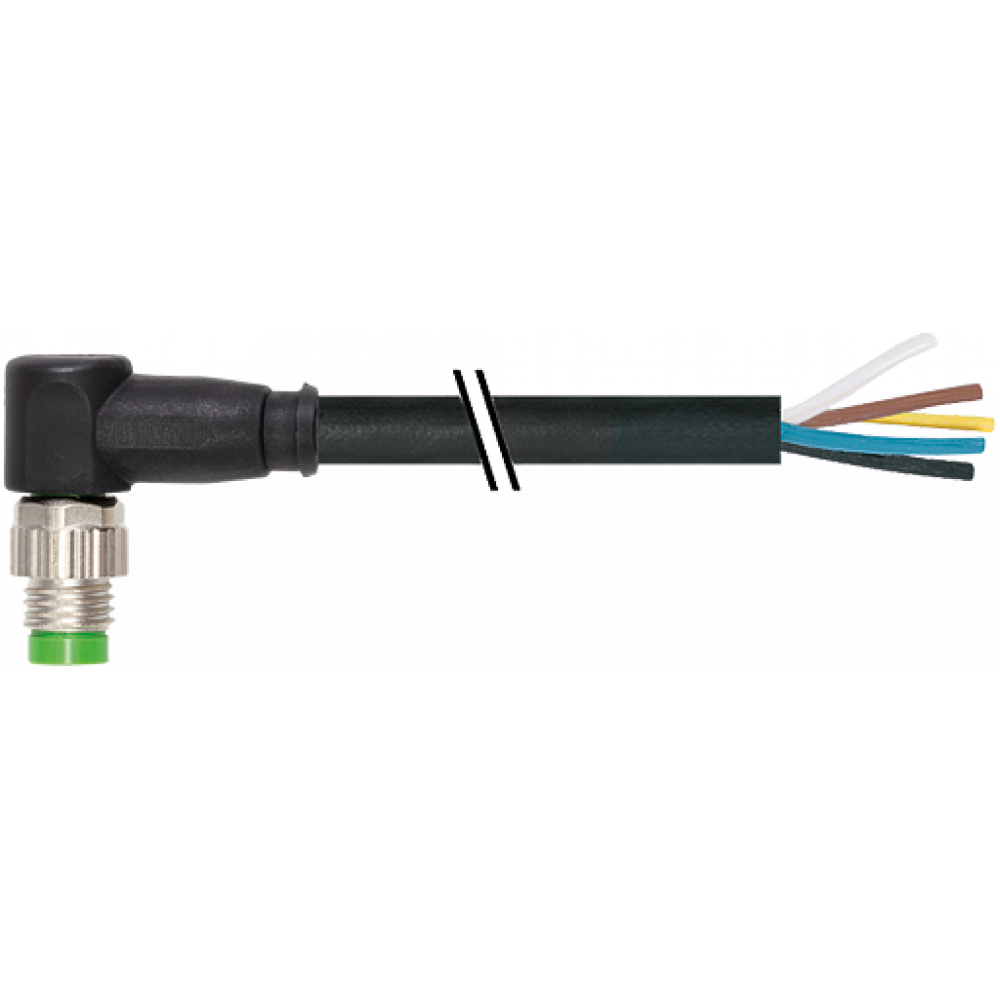

7000-08912-6950150 M8 male 90° with cable, 180°
PUR 5x0.25 bk UL 1,5m
Kód produktu od výrobcu: 7000-08912-6950150Kód EXIM-TECH 7000-08912-6950150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 12.93€ (15.90€ ) |
| 10+ | 13.12€ (15.74€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male 90°
M8, 5-pole
B-coded
with cable sleeves
Attention: Contact carrier turned to 180°!
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M8, 5-pole
B-coded
with cable sleeves
Attention: Contact carrier turned to 180°!
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| No. Of Poles | 5 |
| Operating Voltage | max. 30 V AC/DC |
| Material | TPU |
| Operating Current Per Contact | max. 3 A |
| Locking Of Ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Mating Cycles | ≥ 100 |
| Compression Gland | M8 (SW9) |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | B-coded |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879783316 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| Cable Identification | 695 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 58 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 5× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PP |
| Wire-Ø Incl. Isolation | 1.2 mm ±5% |
| Shield | no |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 4.7 mm ±5% |
| Color (jacket) | black |
| Nominal Voltage | 300 V |
| Test Voltage | 3000 V AC |
| Temperature Range (fixed) | -25...+80 °C |
| Temperature Range (mobile) | -10...+80 °C |
| Bend Radius (moving) | 7.5× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Stranding Combination | 5 wires twisted around central filler |
| Form | |
| Form | 08912 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+80 °C |
| Material (contact) | Copper alloy |
| Pollution Degree | 3/2 |
| Material (contact Surface) | Au |
