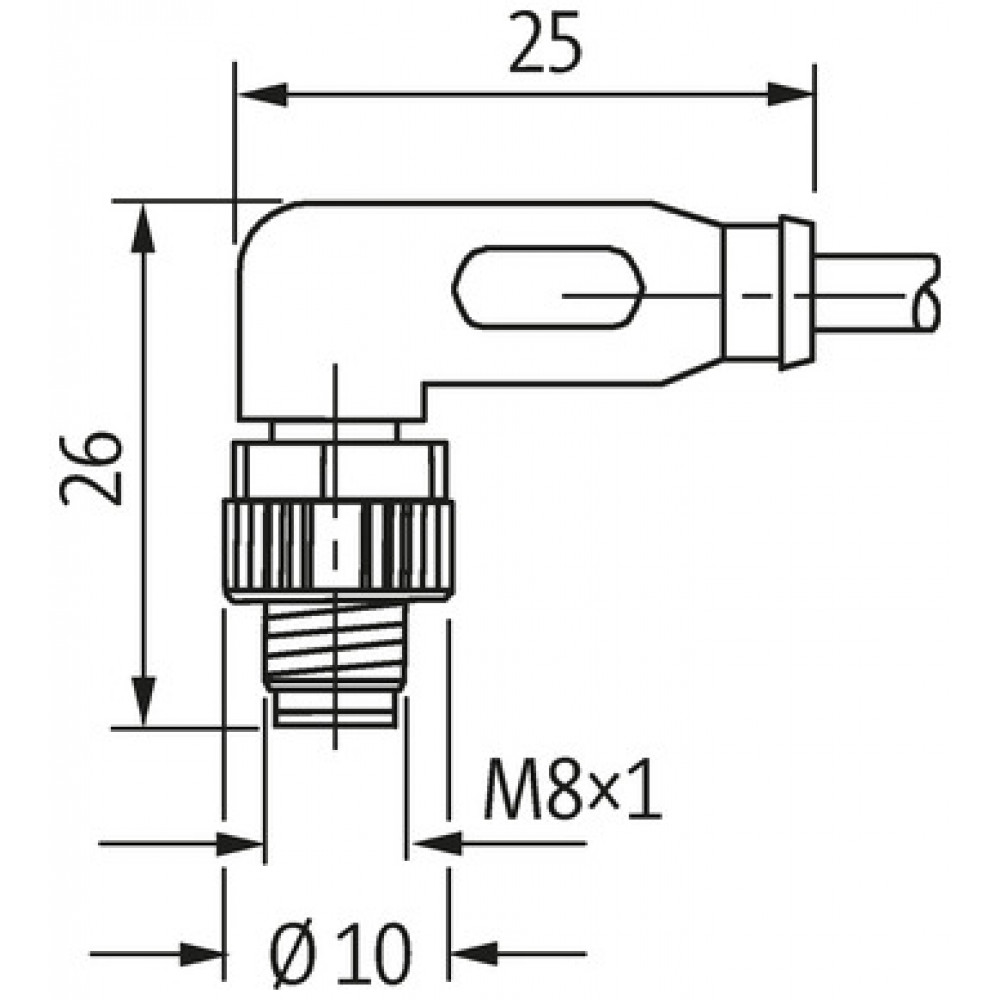

7000-08021-2200200 M8 male 90° A-cod. with cable
Kód EXIM-TECH 7000-08021-2200200
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Male 90°
M8, 3-pole
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
7000-08021-2200200 M8 male 90° A-cod. with cable
PUR 3x0.25 gy UL/CSA 2m
Kód produktu od výrobcu: 7000-08021-2200200Kód EXIM-TECH 7000-08021-2200200
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 10.92€ (13.43€ ) |
| 10+ | 11.07€ (13.28€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male 90°
M8, 3-pole
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 50 V AC/60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M8 (SW9) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Suitable For Corrugated Tube (internal Ø) | 6.5 mm |
| Operating Voltage (only UL Listed) | max. 30 V AC/DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879619233 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 220 |
| Cable Type | 2 (PUR/PVC) |
| Approval (cable) | UL (AWM-Style 20549/1731), CSA; CE conform |
| Cable Weight [g/m] | 26,62 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 3× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 43 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl |
| Shield | no |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 4.3 mm ±5% |
| Color (jacket) | gray |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | UL 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 10× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Stranding Combination | 3 wires twisted |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Form | |
| Form | 08021 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-104 (M8) |
| Stripping Length (jacket) | 20 mm |
