7000-08921-6960150 M8 male 0° with cable
Kód EXIM-TECH 7000-08921-6960150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-08921-6960150 M8 male 0° with cable
PUR 8x0.14 1,5m
Kód produktu od výrobcu: 7000-08921-6960150Kód EXIM-TECH 7000-08921-6960150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 22.73€ (27.95€ ) |
| 10+ | 23.17€ (27.80€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke

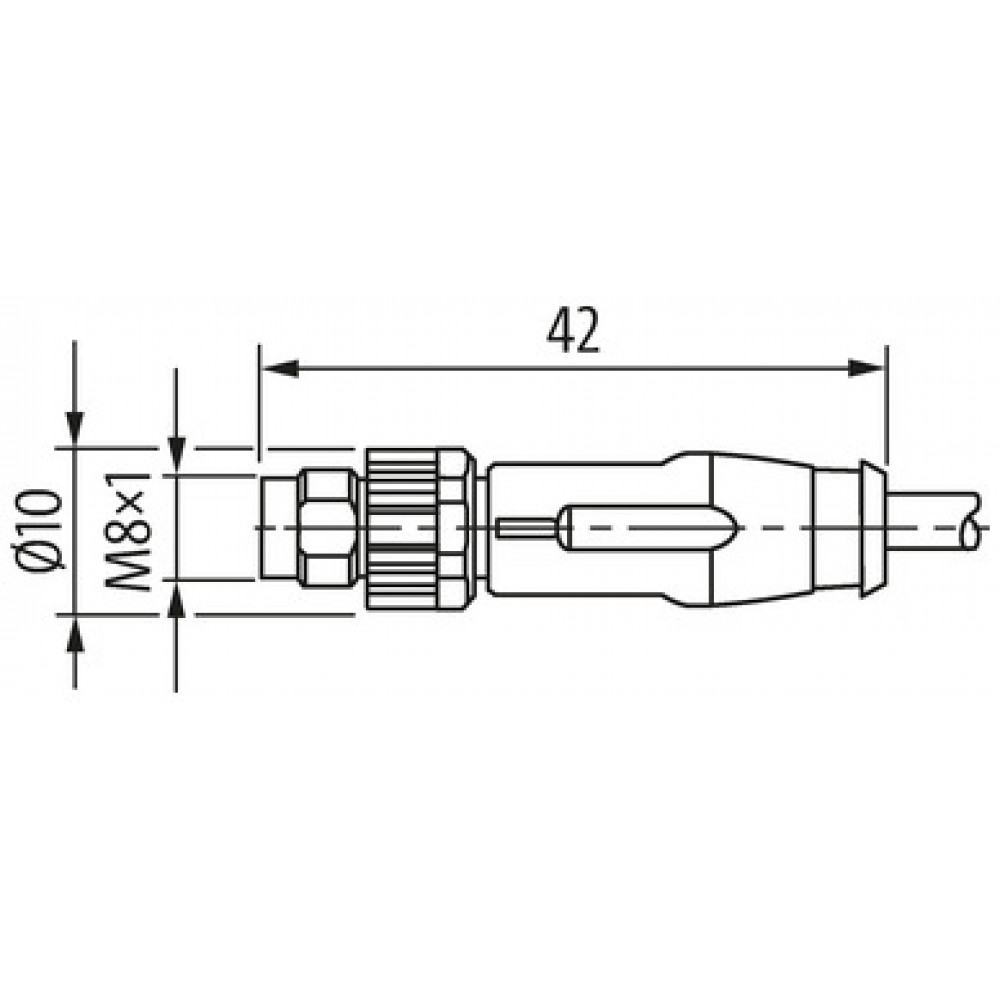

Male straight
M8, 8-pole
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M8, 8-pole
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| No. Of Poles | 8 |
| Operating Voltage | max. 30 V AC/DC |
| Material | TPU |
| Operating Current Per Contact | max. 1.5 A |
| Locking Of Ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Mating Cycles | ≥ 100 |
| Compression Gland | M8 (SW9) |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879745154 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 696 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 78 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 18× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 8× 0.14 mm² |
| AWG | similar to AWG 14 |
| Material (wire Isolation) | PP |
| Wire-Ø Incl. Isolation | 1.07 mm ±5% |
| Shield | no |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 5.5 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Nominal Voltage | 300 V |
| Test Voltage | 3000 V AC |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -15...+80 °C |
| Bend Radius (fixed) | 6× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 5 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | 8 wires twisted around central filler |
| Form | |
| Form | 08921 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -30...+80 °C |
| Material (contact) | Copper alloy |
| Pollution Degree | 3/2 |
| Material (contact Surface) | Au |
