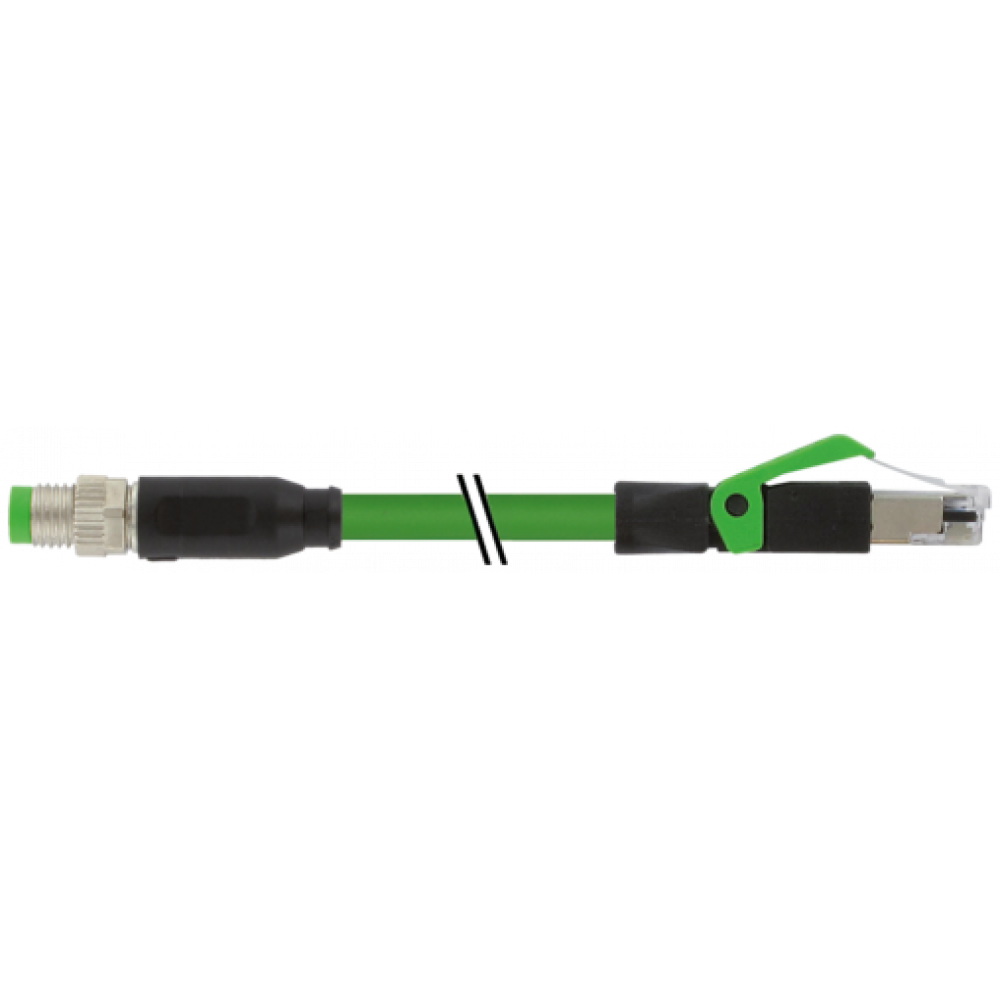

7000-89721-5850150 M8 male 0° A-cod. / RJ45 male 0° shielded
Kód EXIM-TECH 7000-89721-5850150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7000-89721-5850150 M8 male 0° A-cod. / RJ45 male 0° shielded
PUR 1x4xAWG24 shielded gn UL/CSA+drag ch. 1,5m
Kód produktu od výrobcu: 7000-89721-5850150Kód EXIM-TECH 7000-89721-5850150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 34.07€ (41.91€ ) |
| 10+ | 34.54€ (41.45€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT5
Male straight – male straight
M8, 4-pole – RJ45, 8/4-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – male straight
M8, 4-pole – RJ45, 8/4-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 1.5 A (20 °C) |
| Locking Of Ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Protection | IP67 (M8) - IP20 (RJ45) |
| Material Group | IEC 60664-1, category I |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Compression Gland | M8 (SW9) |
| Rated Surge Voltage | 1.0 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Suitable For Corrugated Tube (internal Ø) | 6.5 mm |
| Operating Voltage (only UL Listed) | max. 30 V DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4065909014325 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 585 |
| Approval (cable) | cURus (AWM-Style 20549/11602), CE-conform |
| Cable Weight [g/m] | 68,2 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 85 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.203 mm |
| Construction (core) | 7× 0.203 mm |
| Diameter (core) | 1× 4× AWG24/7 |
| AWG | similar to AWG 24/7 |
| Material (wire Isolation) | PE |
| Wire-Ø Incl. Isolation | 1.2 mm ±5% |
| Color/numbering Of Wires | wh, ye, bl, or |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.0 mm ±5% |
| Color (jacket) | green |
| Nominal Voltage | 300 V |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 12× outer Ø |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Optical Shield Cover | min. 85% |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Form | |
| Form | 89721 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-104 (M8) |
