341946 M12 male / M12 male 90° shielded Cube67
Kód EXIM-TECH 341946
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

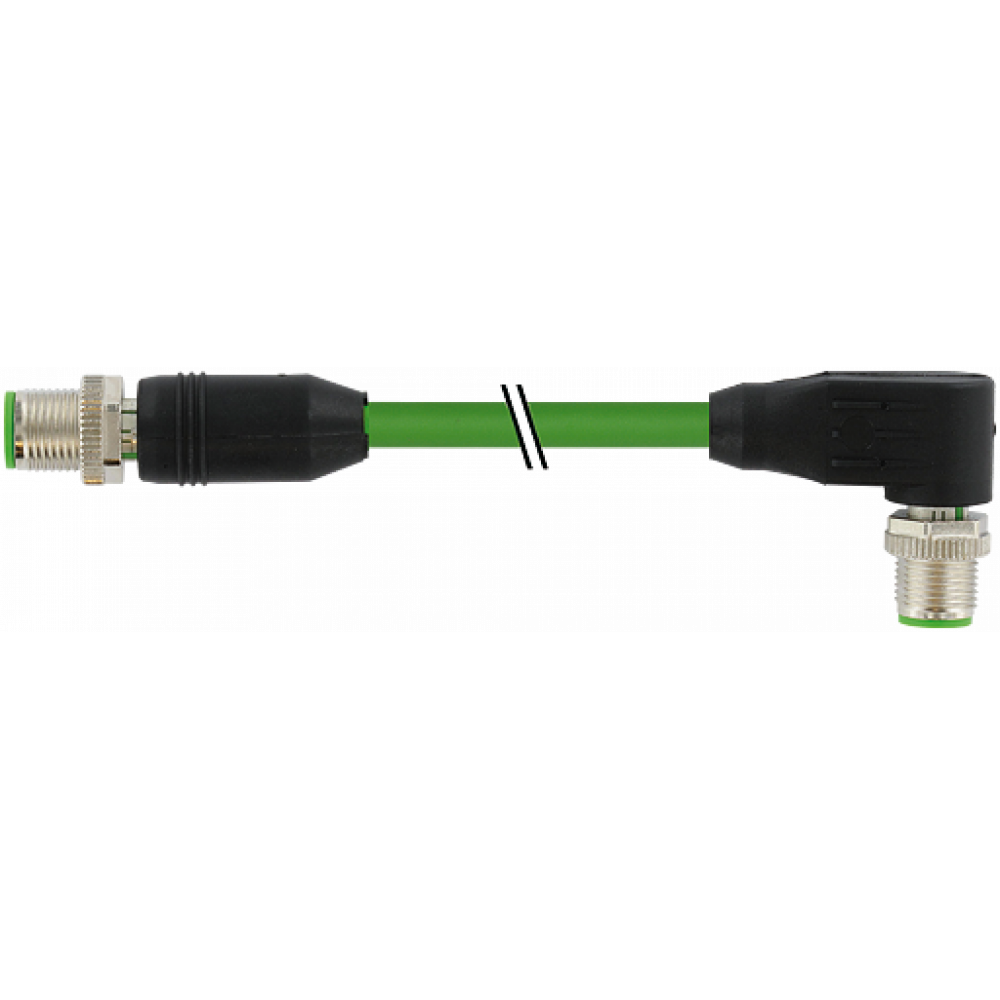

341946 M12 male / M12 male 90° shielded Cube67
PUR 0.5+0.25 shielded gn UL/CSA+drag ch. 0,3m
Kód produktu od výrobcu: 341946Kód EXIM-TECH 341946
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 55.13€ (67.80€ ) |
| 10+ | 56.38€ (67.65€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke

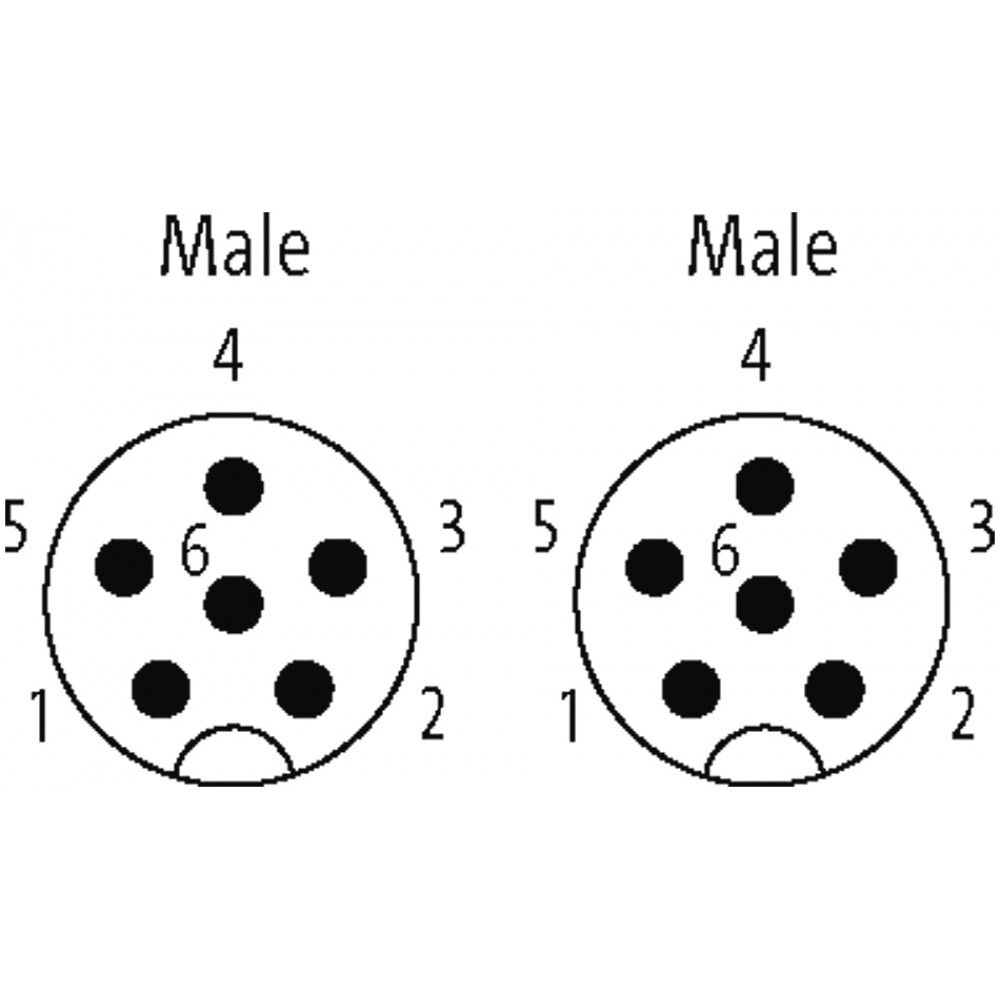

Male 90° – male straight
M12 – M12
6-pole, shielded
Cube67
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12 – M12
6-pole, shielded
Cube67
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | max. 30 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Compression Gland | M12 (SW13) |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879592772 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 4× 0.5 + 2× 0.25 mm² |
| Wire Isolation | TPE (bl, wh, br, bk), (gr, pk) |
| C-track Properties | 5 Mio. |
| Outer Ø | 7.9 mm ±5% |
| Cable Identification | 802 |
| Cable Weight [g/m] | 95,70 |
| Material (wire) | Cu wire, bare |
| Single Wire Ø (core) | 0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²) |
| Construction (core) | 28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6) |
| Diameter (core) | 4× 0.5 + 2× 0.25 mm² |
| AWG | similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²) |
| Material (wire Isolation) | TPE-E |
| Shore Hardness (wire Isolation) | 55 ±5 D |
| Wire-Ø Incl. Isolation | 1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²) |

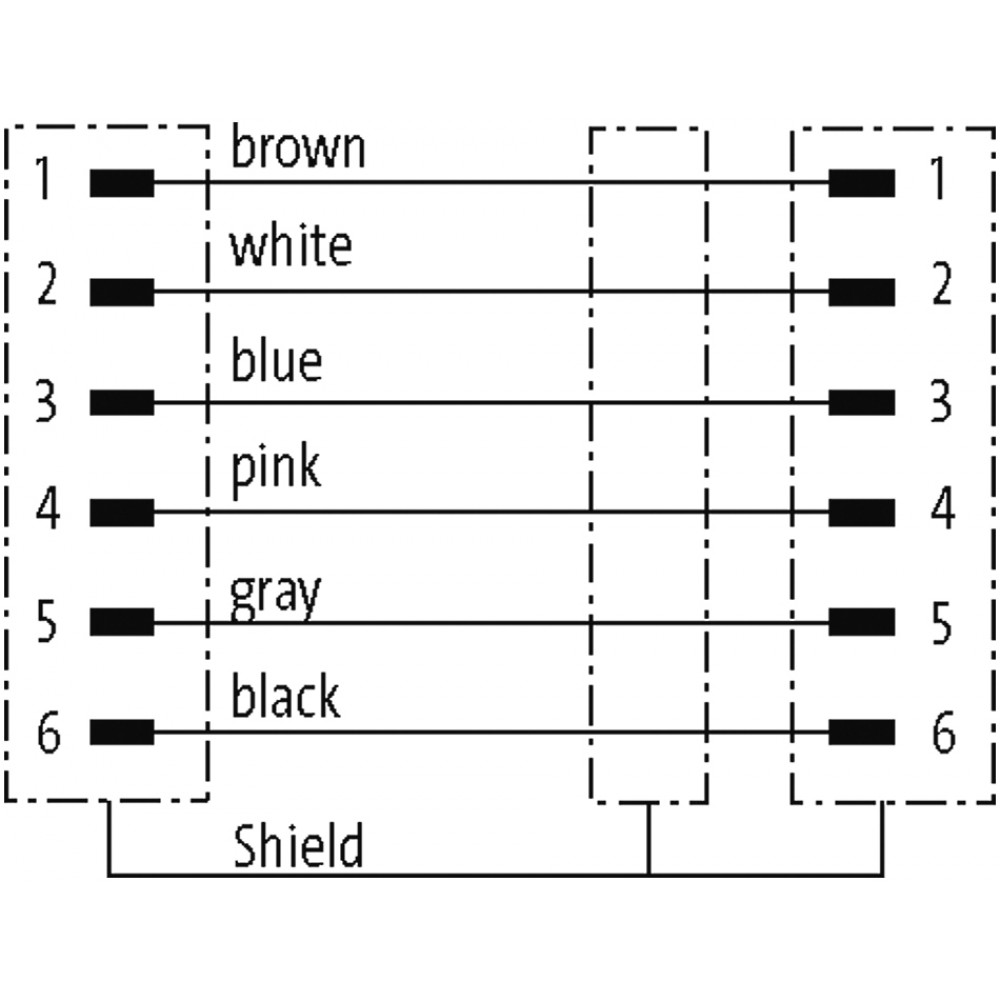

| Color/numbering Of Wires | (bl, wh, br, bk) + (gr, pk) |
| Shield | yes |
| Shore Hardness (jacket) | 89 ±5 A |
| Outer-Ø (jacket) | 7.9 mm ±5% |
| Color (jacket) | green |
| Jacket Color | green |
| Nominal Voltage | 300 V AC |
| Test Voltage | 1500 V (wire/wire); 1200 V (wire/shield) |
| Temperature Range (fixed) | -50...+80 °C |
| Temperature Range (mobile) | -40...+80 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel Speed (C-track) | max. 2 m/s |
| Optical Shield Cover | min. 80% |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Traversing Distance (C-track) | max. 10 m |
| Torsion Stress | ±180°/m |
| Form | |
| Form | 341946 |
| General data | |
| Gasket | FKM |
