7000-14081-8410500 M12 male 90° B-cod. with cable shielded
Kód EXIM-TECH 7000-14081-8410500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

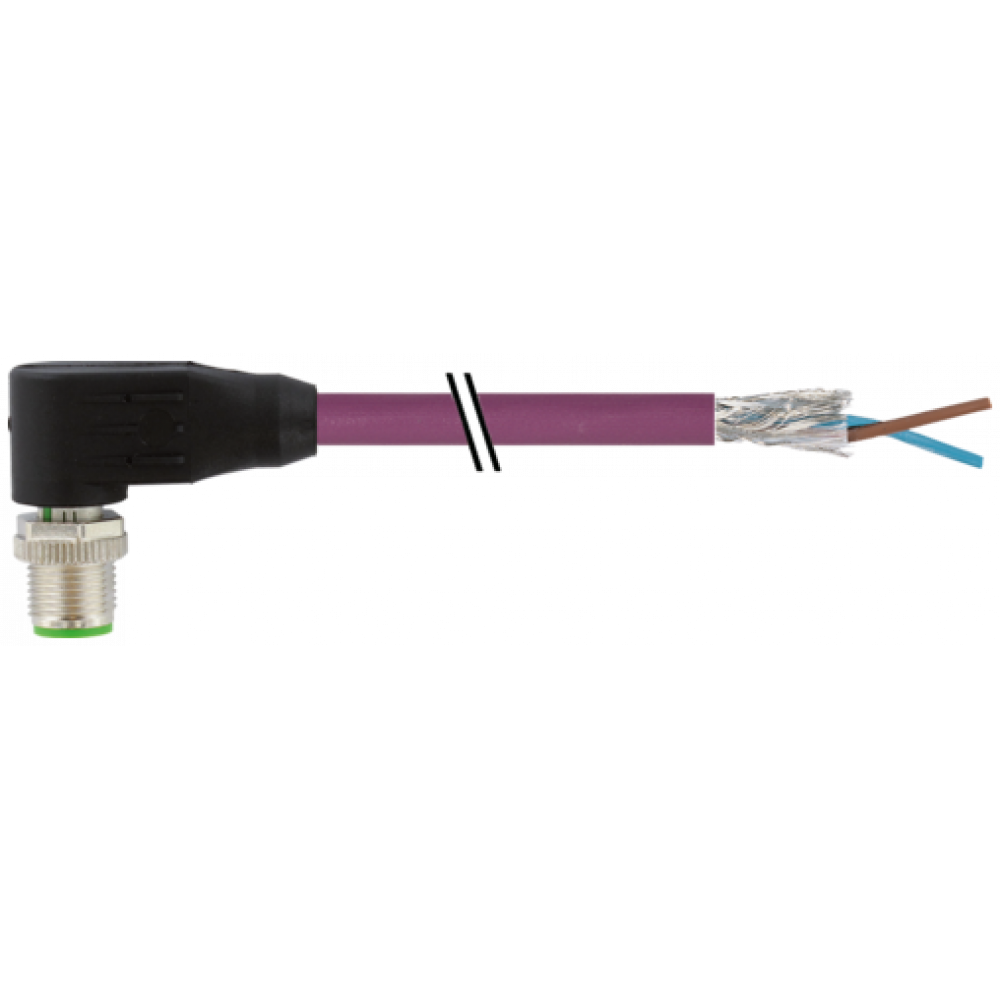

7000-14081-8410500 M12 male 90° B-cod. with cable shielded
PUR 1x2xAWG24 shielded vt UL/CSA+drag ch. 5m
Kód produktu od výrobcu: 7000-14081-8410500Kód EXIM-TECH 7000-14081-8410500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 46.35€ (57.01€ ) |
| 10+ | 46.53€ (55.84€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
PROFIBUS
Male 90°
M12, 2-pole
B-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Male 90°
M12, 2-pole
B-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 60 V AC/DC |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Locking Material | Zinc die casting, matte nickel plated |
| Operating Voltage (only UL Listed) | max. 30 V AC/DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879344357 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 841 |
| Approval (cable) | cURus (AWM-Style 20549/10578), CE-conform |
| Cable Weight [g/m] | 70,4 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 72 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.13 mm |
| Construction (core) | 19× 0.13 mm |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | ZE-PE |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 60 ±3 D |
| Wire-Ø Incl. Isolation | 2.55 mm ±5% |
| Color/numbering Of Wires | rd, gn |
| Shield | yes |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 87 ±3 A |
| Outer-Ø (jacket) | 7.7 mm ±5% |
| Color (jacket) | violet |
| Chemical Resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
| Nominal Voltage | 300 V |
| Test Voltage | 2000 V AC (test duration 1 min) |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -20...+60 °C |
| Bend Radius (fixed) | 7.5× outer Ø |
| Bend Radius (moving) | 12× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Optical Shield Cover | min. 85% |
| Thermal Resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Form | |
| Form | 14081 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
