7060-40245-5880030 M12 male 90° / M12 female 90° A-cod.
Kód EXIM-TECH 7060-40245-5880030
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7060-40245-5880030 M12 male 90° / M12 female 90° A-cod.
PUR 2x1.5 gy UL/CSA+drag ch. 0.3m
Kód produktu od výrobcu: 7060-40245-5880030Kód EXIM-TECH 7060-40245-5880030
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 18.14€ (22.31€ ) |
| 10+ | 18.5€ (22.20€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke

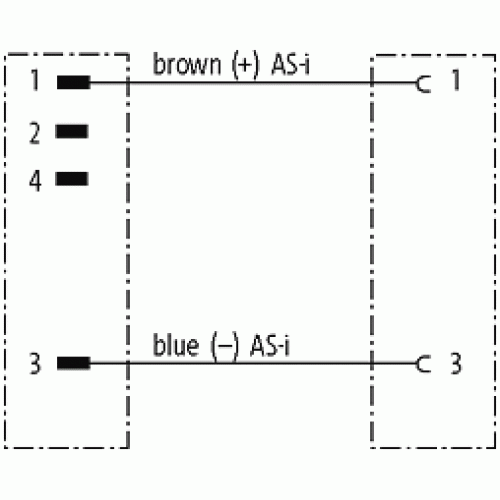

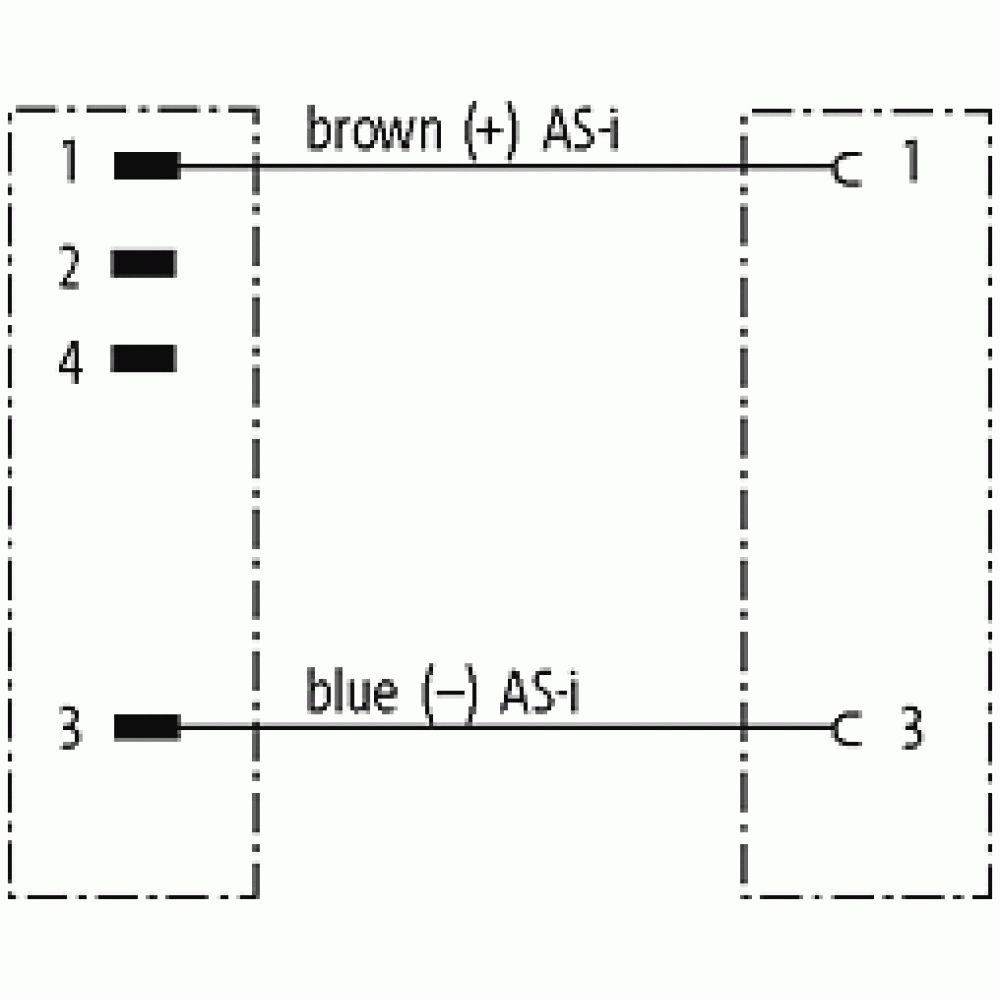

AS-Interface
Male 90° – female 90°
M12 – M12, 2-pole
for MASI68
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Male 90° – female 90°
M12 – M12, 2-pole
for MASI68
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | max. 250 V AC/DC |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Locking Material | Zinc die casting, matte nickel plated |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879286923 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 2× 1.5 mm² |
| Wire Isolation | PP (br, bl) |
| C-track Properties | 5 Mio. |
| Outer Ø | 8.0 mm ±5% |
| Cable Identification | 588 |
| Approval (cable) | UL (AWM-Style 21198/10493), CSA |
| Cable Weight [g/m] | 80,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 13.3 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.25 mm |
| Construction (core) | 30× 0.25 mm (multi-strand wire class 5) |
| Diameter (core) | 2× 1.5 mm² |
| AWG | similar to AWG 16 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 70 ±5 D |
| Wire-Ø Incl. Isolation | 2.95 mm ±5% |
| Color/numbering Of Wires | br, bl |
| Shield | no |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 8.0 mm ±5% |
| Color (jacket) | gray |
| Jacket Color | gray |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -50...+80 °C |
| Bend Radius (fixed) | 10× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 5 Mio. (25 °C) |
| Travel Speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Thermal Resistance | flame retardant UL, CSA FT2 / IEC 60332-2-2 |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Traversing Distance (C-track) | max. 5 m (horizontal) |
| Temperature Range (mobile) | -25...+80 °C |
| Temperature Range (mobile) | -25...+80 °C (+60 °C, C-track) |
| Form | |
| Form | 40245 |
