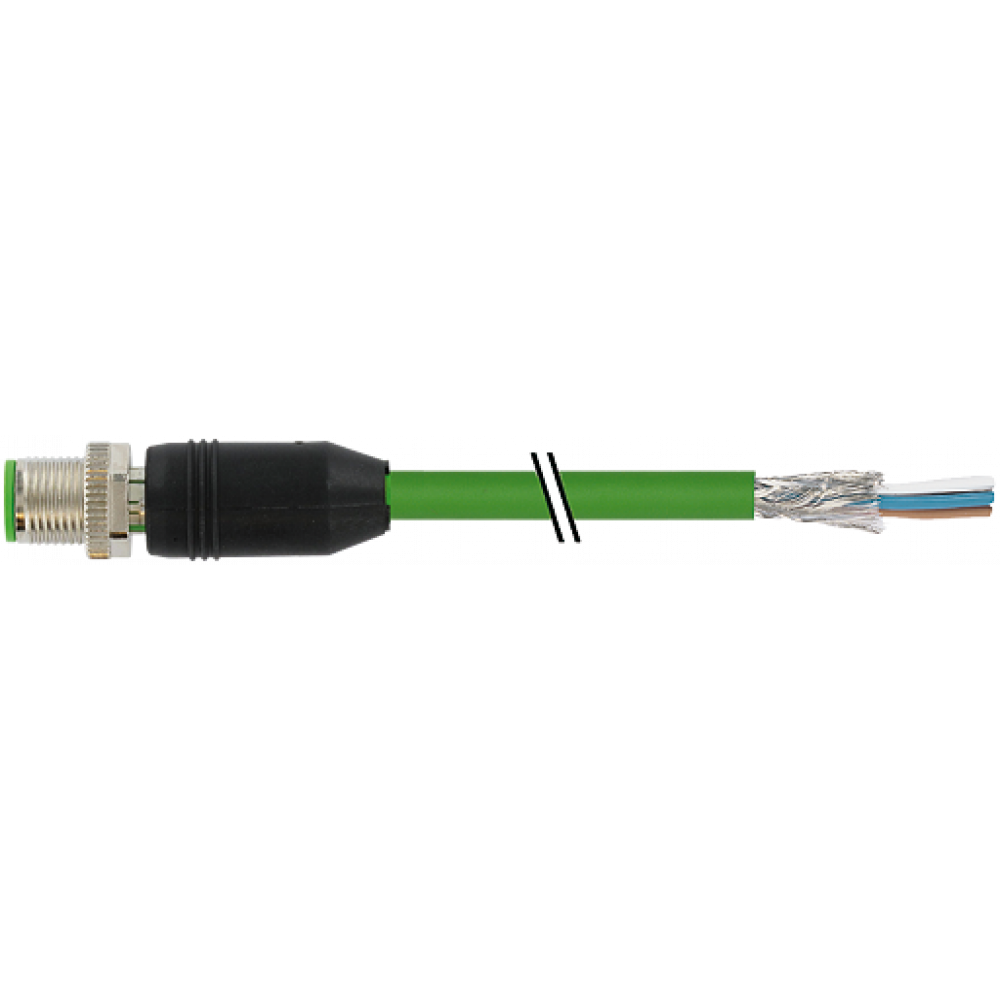

341810 M12 male 0° shielded with cable
Kód EXIM-TECH 341810
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
341810 M12 male 0° shielded with cable
PUR 4x0,22 shielded gn 1,05m
Kód produktu od výrobcu: 341810Kód EXIM-TECH 341810
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 17.53€ (21.56€ ) |
| 10+ | 17.83€ (21.40€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight
M12, 4-pole
A-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Quantity: 100 pcs.
M12, 4-pole
A-coded
shielded
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Quantity: 100 pcs.
| Technical Data | |
| No. Of Poles | 4 |
| Operating Voltage | max. 60 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879574914 |
| EClass | 27279218 |
| Packaging Unit | 50 |
| Cables | |
| Cable Identification | 855 |
| Approval (cable) | UL (AWM-Style 20549/1731), CSA; CE conform |
| Material (wire) | Cu wire, bare |
| Single Wire Ø (core) | 0.2 mm |
| Diameter (core) | 0.22 mm² |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Wire-Ø Incl. Isolation | 0.95 mm ±5% |

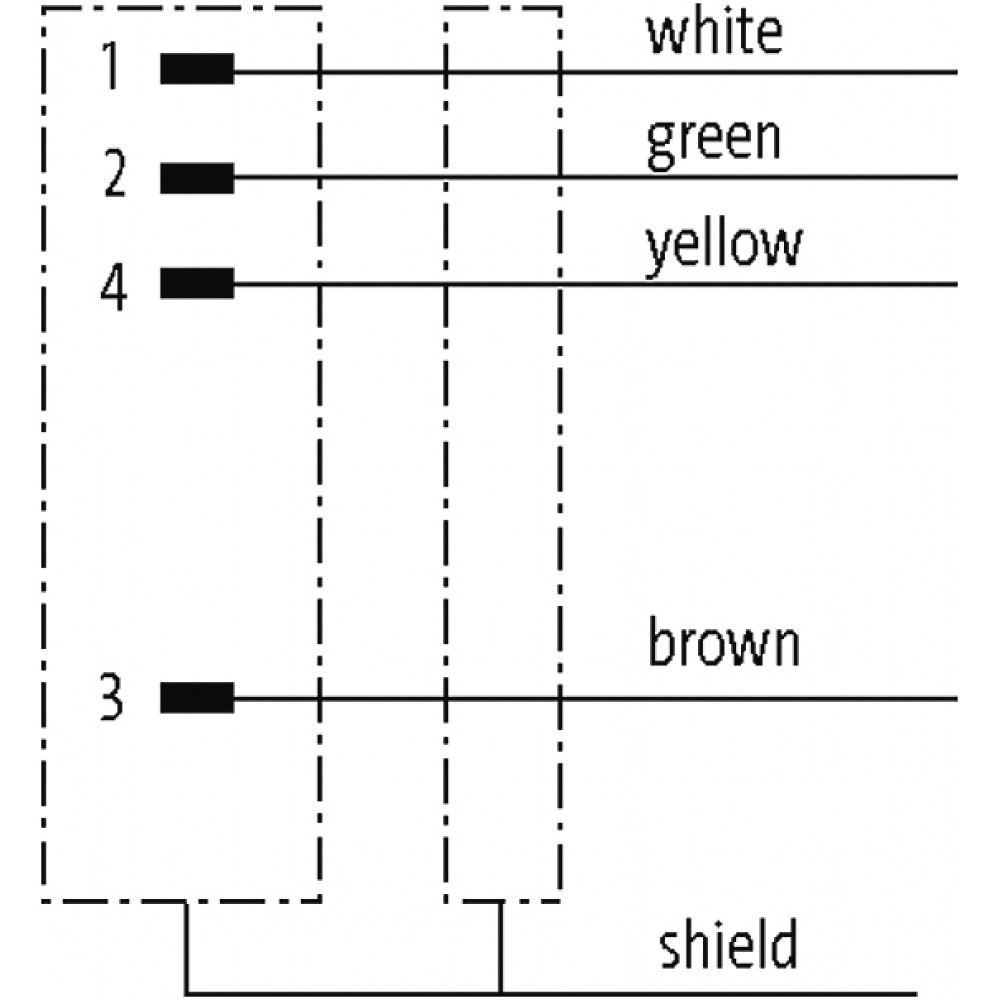

| Color/numbering Of Wires | wh, br, gn, ye |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 3.7 mm ±5% |
| Color (jacket) | green |
| Nominal Voltage | 100 V |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 1 Mio. (25 °C) |
| Travel Speed (C-track) | max. 1 m/s |
| Stranding Combination | 4 wires twisted |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Material (contact Surface) | Au |
| Stripping Length (jacket) | 20 mm |
