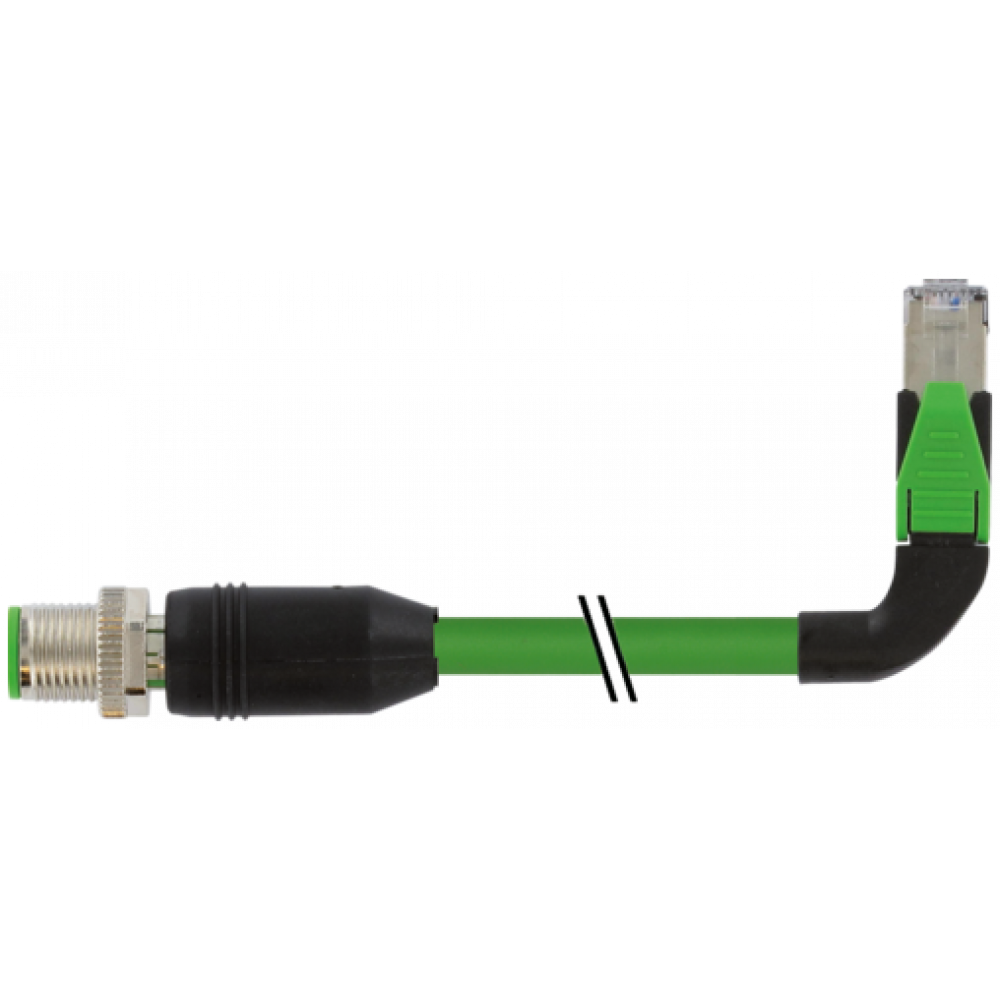

7000-44747-8001500 M12 male 0° D-cod. / RJ45 90° left shielded
Kód EXIM-TECH 7000-44747-8001500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Ethernet CAT5
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – male 90° left
M12 – RJ45, 4-pole
D-coded
shielded
8-pole partly used
Transmission properties with channel transmission up to 100 m
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
7000-44747-8001500 M12 male 0° D-cod. / RJ45 90° left shielded
PVC 1x4xAWG22 shielded gn UL/CSA+drag ch. 15m
Kód produktu od výrobcu: 7000-44747-8001500Kód EXIM-TECH 7000-44747-8001500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 69.22€ (85.15€ ) |
| 10+ | 67.14€ (80.57€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT5
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – male 90° left
M12 – RJ45, 4-pole
D-coded
shielded
8-pole partly used
Transmission properties with channel transmission up to 100 m
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
| Technical Data | |
| Operating Voltage | max. 60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 1.5 A (20 °C) |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP20/IP67 |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | up to 100 Mbit/s full duplex |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.0 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | M12, D-coded |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444210 |
| EAN | 4048879676038 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 800 |
| Approval (cable) | UL (AWM-Style 2571/10578), CSA; CE conform; Profinet Guideline |
| Cable Weight [g/m] | 73,7 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Construction (core) | 7× 0.254 mm |
| Diameter (core) | 1× 4× AWG22/7 |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PE |
| Shore Hardness (wire Isolation) | 55 ±5 D |
| Wire-Ø Incl. Isolation | 1.52 mm ±5% |
| Color/numbering Of Wires | wh, ye, bl, or |
| Shield | yes |
| Material (jacket) | PVC |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 6.5 mm ±5% |
| Color (jacket) | green |
| Chemical Resistance | Oil resistance IEC 60811-2-1, ASTM Öle 1, ICEA S-82-552 Std. |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2000 V AC (test duration 1 min) |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -10...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s |
| Optical Shield Cover | min. 85% |
| Thermal Resistance | flammwidrig nach UL 1581 Section 1060 (FT1), Section 1061 (cable flame), IEC 60332-1-2 |
| Form | |
| Form | 44747 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
