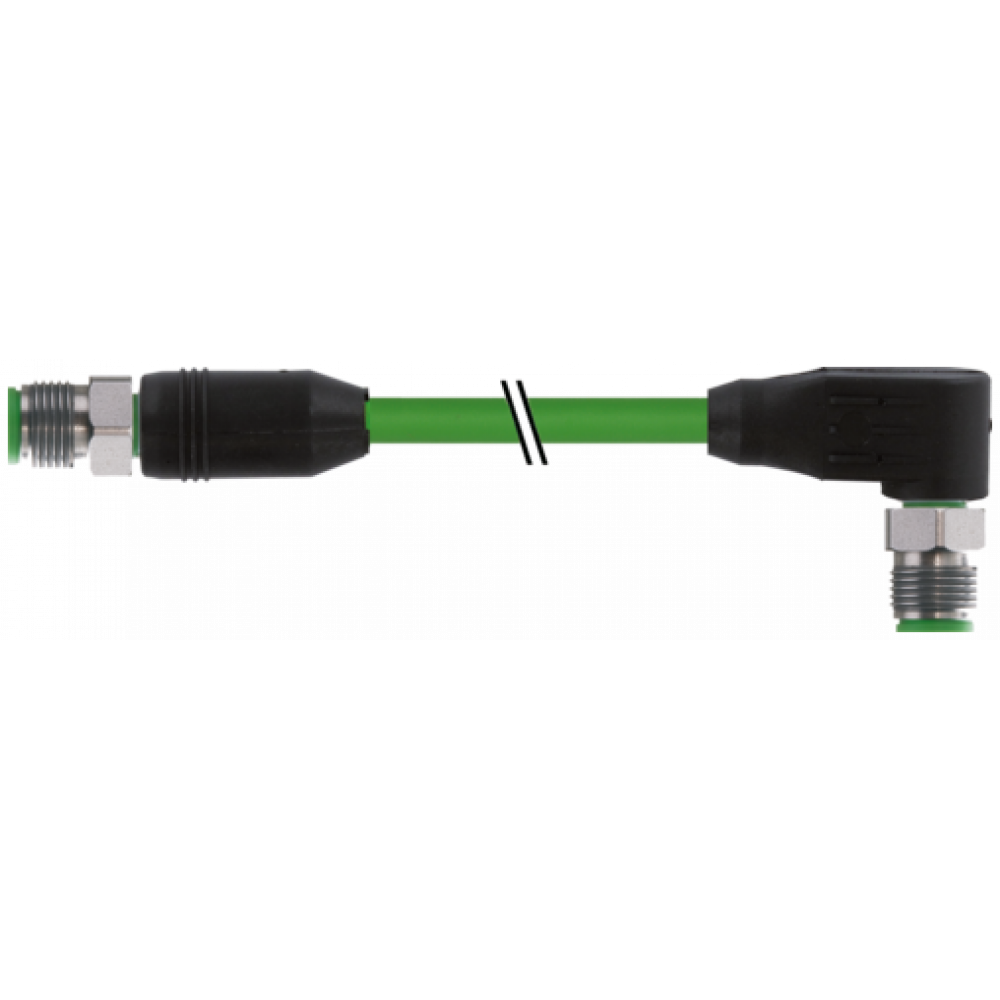

7002-51011-7900200 M12 male 0° / M12 male 90° X-cod. shielded V2A
![7002-51011-7900200 M12 male 0° / M12 male 90° X-cod. shielded V2A]( "7002-51011-7900200 M12 male 0° / M12 male 90° X-cod. shielded V2A")
Kód EXIM-TECH 7002-51011-7900200
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Ethernet CAT6A
Male straight – male 90°
M12 – M12, 8-pole
X-coded
shielded
Transmission properties with channel transmission up to 50 m
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7002-51011-7900200 M12 male 0° / M12 male 90° X-cod. shielded V2A
PUR 4x2xAWG26 shielded gn UL/CSA 2m
Kód produktu od výrobcu: 7002-51011-7900200Kód EXIM-TECH 7002-51011-7900200
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 92.26€ (113.47€ ) |
| 10+ | 94.15€ (112.98€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT6A
Male straight – male 90°
M12 – M12, 8-pole
X-coded
shielded
Transmission properties with channel transmission up to 50 m
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| No. Of Poles | 8 |
| Operating Voltage | max. 50 V AC/60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 0.5 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | 10 Gbit/s |
| Transfer Parameters | CAT6, Class EA (ISO/IEC 11801 |
| Configuration | fully used |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Coding | X-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879667906 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 790 |
| Approval (cable) | cURus (AWM-Style 20549/11635); CE conform |
| Cable Weight [g/m] | 52,8 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 143 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.16 mm |
| Diameter (core) | 4× 2× AWG26/7 |
| Material (wire Isolation) | PE |
| Wire-Ø Incl. Isolation | 1.05 mm ±5% |
| Color/numbering Of Wires | (WH, OR), (WH, BU), (WH, BN), (WH, GN) |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.4 mm ±5% |
| Color (jacket) | green |
| Chemical Resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
| Nominal Voltage | 125 V AC |
| Test Voltage | 1500 V (wire/wire); 1000 V (wire/shield) |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 8× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Optical Shield Cover | approx. 65% |
| Form | |
| Form | 51011 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-109 (M12) |
| Material (contact Surface) | Au |
