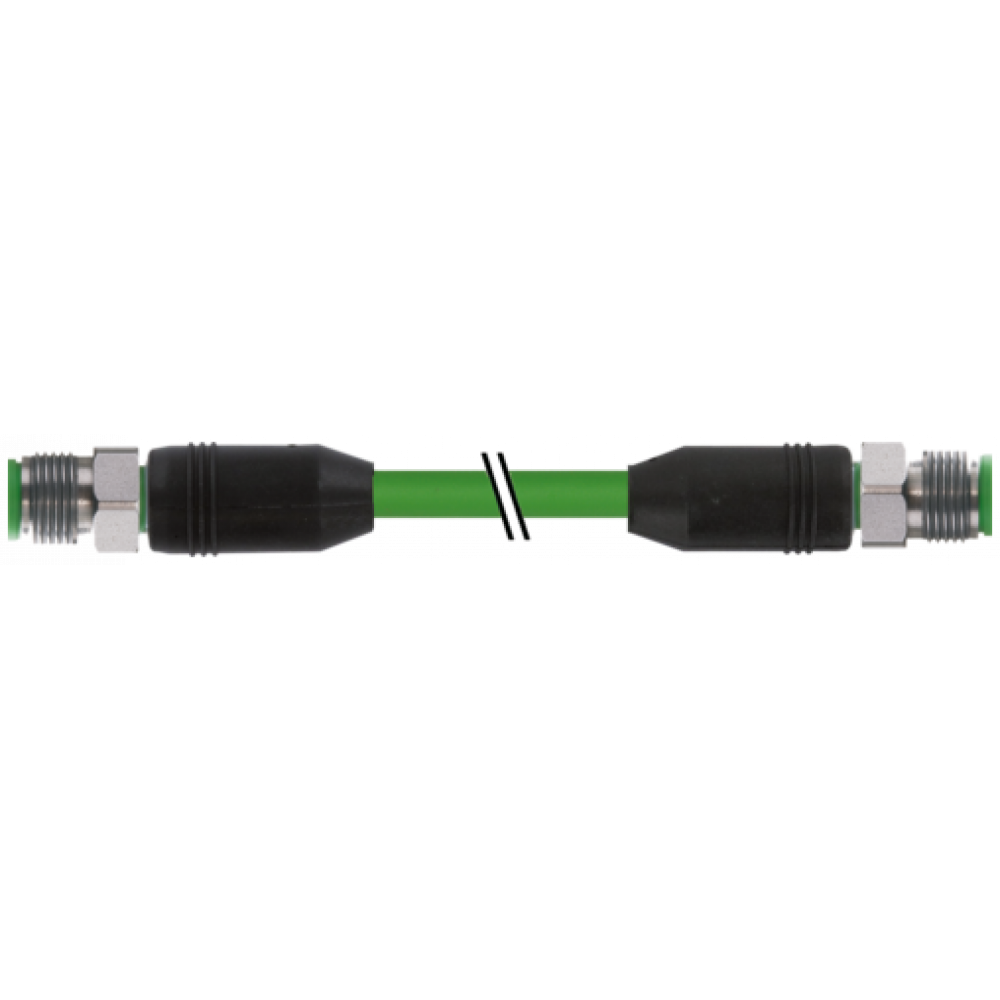

7002-51001-7900100 M12 male 0° / M12 male 0° X-cod. shielded V2A
![7002-51001-7900100 M12 male 0° / M12 male 0° X-cod. shielded V2A]( "7002-51001-7900100 M12 male 0° / M12 male 0° X-cod. shielded V2A")
Kód EXIM-TECH 7002-51001-7900100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Ethernet CAT6A
Further cable lengths on request.
Male straight – male straight
M12 – M12, 8-pole
X-coded
shielded
Stainless steel 1.4305 (V2A)
Transmission properties with channel transmission up to 50 m
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
7002-51001-7900100 M12 male 0° / M12 male 0° X-cod. shielded V2A
PUR 4x2xAWG26 shielded gn UL/CSA 1m
Kód produktu od výrobcu: 7002-51001-7900100Kód EXIM-TECH 7002-51001-7900100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 85.51€ (105.18€ ) |
| 10+ | 87.43€ (104.92€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT6A
Further cable lengths on request.
Male straight – male straight
M12 – M12, 8-pole
X-coded
shielded
Stainless steel 1.4305 (V2A)
Transmission properties with channel transmission up to 50 m
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 8 |
| Operating Voltage | max. 50 V AC/60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 0.5 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | 10 Gbit/s |
| Transfer Parameters | CAT6, Class EA (ISO/IEC 11801 |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Coding | X-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Operating Voltage (only UL Listed) | 30 V AC/DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879667913 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 790 |
| Approval (cable) | cURus (AWM-Style 20549/11635); CE conform |
| Cable Weight [g/m] | 52,8 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 143 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.16 mm |
| Diameter (core) | 4× 2× AWG26/7 |
| Material (wire Isolation) | PE |
| Wire-Ø Incl. Isolation | 1.05 mm ±5% |

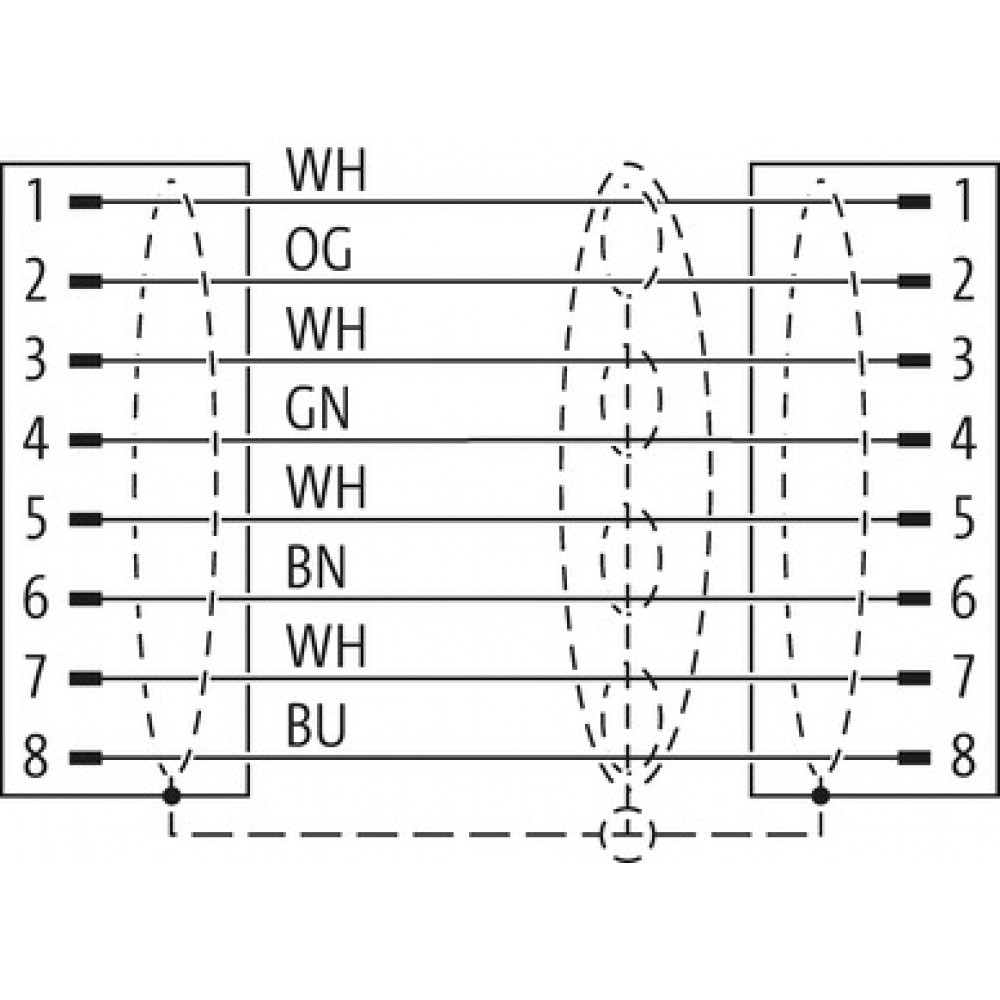

| Color/numbering Of Wires | (WH, OR), (WH, BU), (WH, BN), (WH, GN) |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 6.4 mm ±5% |
| Color (jacket) | green |
| Chemical Resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
| Nominal Voltage | 125 V AC |
| Test Voltage | 1500 V (wire/wire); 1000 V (wire/shield) |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 8× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Optical Shield Cover | approx. 65% |
| Form | |
| Form | 51001 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-109 (M12) |
| Material (contact Surface) | Au |
