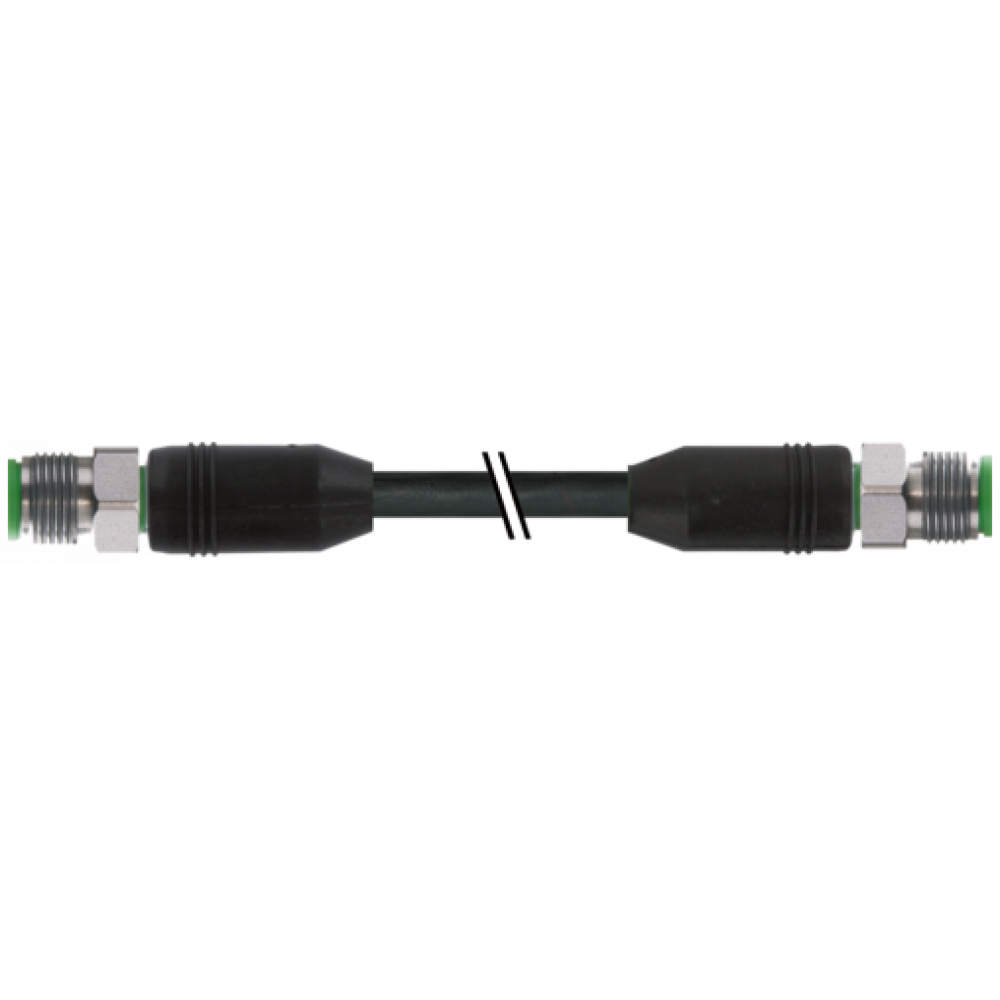

7004-47001-8050100 M12 male 0° / M12 male 0° Y-cod. shielded V4A
Kód EXIM-TECH 7004-47001-8050100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Ethernet CAT5

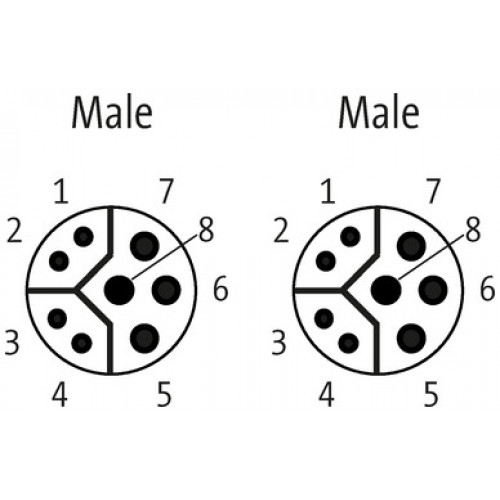

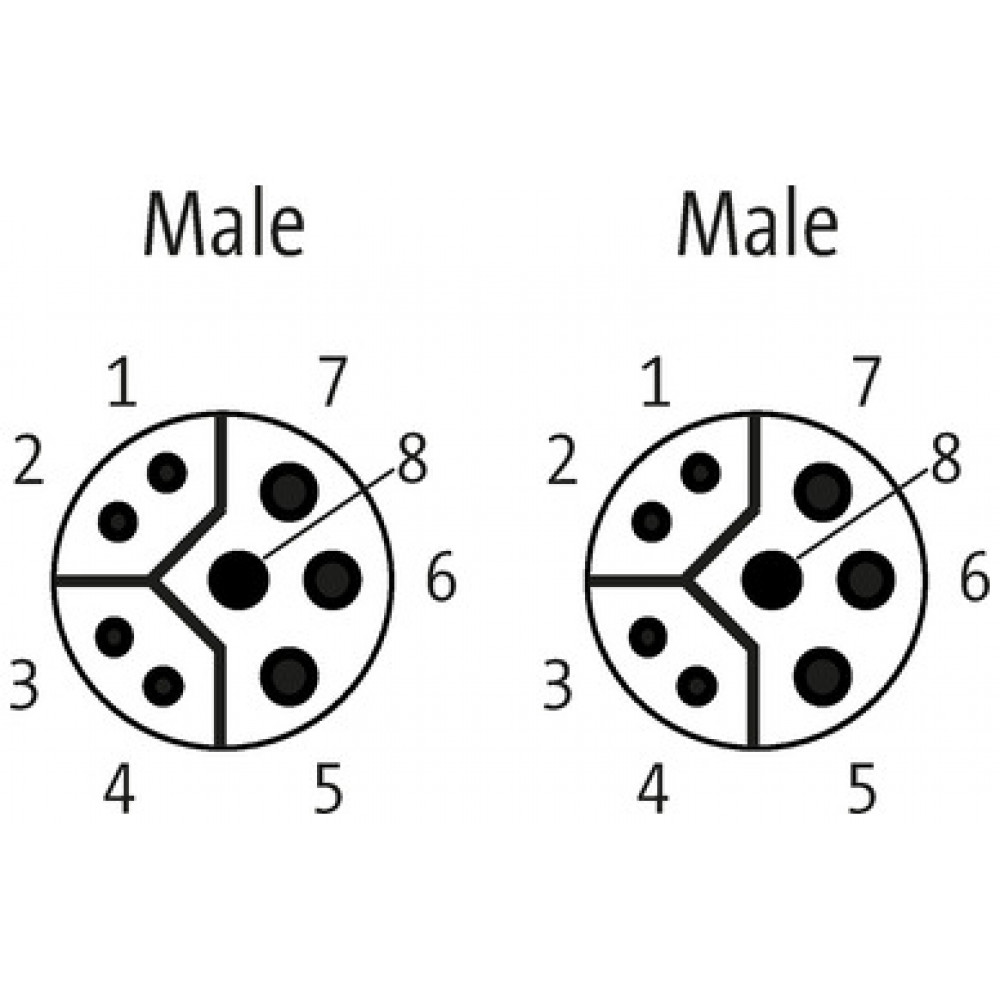

M12 – M12, 8-pole
Male straight – male straight
Y-coded
shielded
Stainless steel 1.4404 (V4A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
7004-47001-8050100 M12 male 0° / M12 male 0° Y-cod. shielded V4A
PUR AWG20/26 shielded bk UL/CSA+drag ch. 1m
Kód produktu od výrobcu: 7004-47001-8050100Kód EXIM-TECH 7004-47001-8050100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 87.92€ (108.14€ ) |
| 10+ | 89.58€ (107.50€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT5
M12 – M12, 8-pole
Male straight – male straight
Y-coded
shielded
Stainless steel 1.4404 (V4A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 8 |
| Operating Voltage | max. 60 V DC |
| Material | PUR |
| Operating Current Per Contact | 0.5 A (Data), 6 A (Power) |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | 100 Mbit/s |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Stainless steel 1.4404 (V4A) |
| Coding | Y-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Operating Voltage (only UL Listed) | 30 V DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879557177 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 805 |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 107,8 g |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 55 ±5 D |

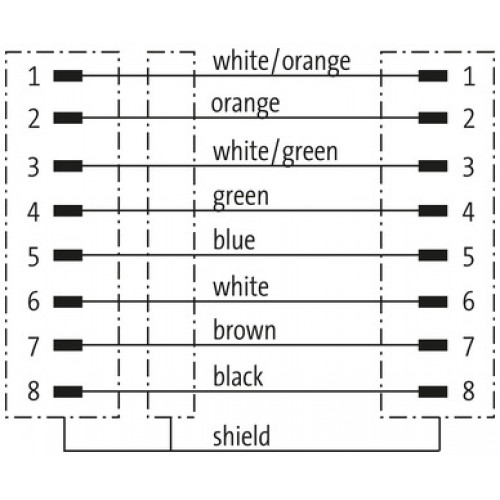

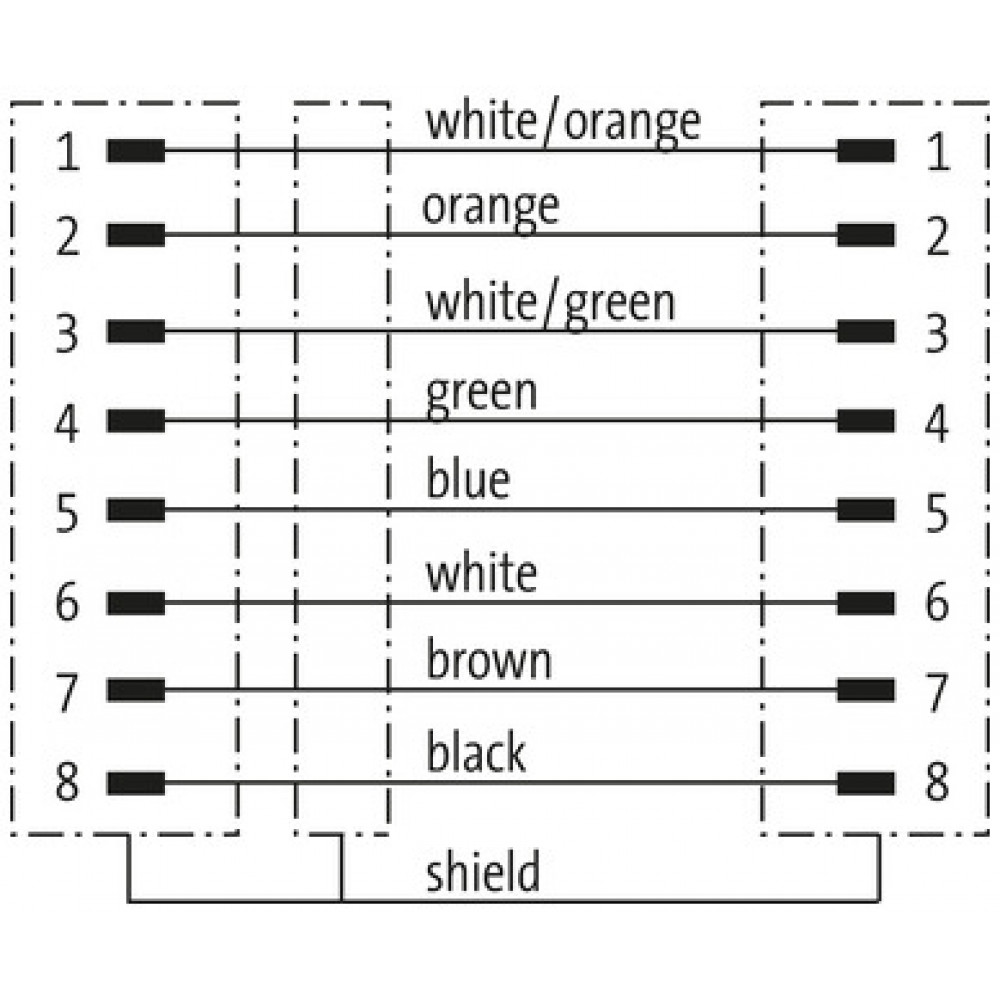

| Color/numbering Of Wires | (bk, br, wh, bl), (whor, or, whgn, gn) |
| Shield | yes |
| Material (jacket) | PUR |
| Shore Hardness (jacket) | 90 ±5 A |
| Outer-Ø (jacket) | 8.1 mm ±5% |
| Color (jacket) | black |
| Chemical Resistance | Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std. |
| Nominal Voltage | 60 V AC |
| Test Voltage | 1000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Optical Shield Cover | min. 85% |
| Thermal Resistance | flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std. |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant |
| Torsion Stress | ±30°/m |
| No. Of Torsion Cycles | max. 2 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 47001 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Material (contact Surface) | Au |
