7000-44511-6592500 M12 male 0° / M12 male 0° D-cod. shielded
Kód EXIM-TECH 7000-44511-6592500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

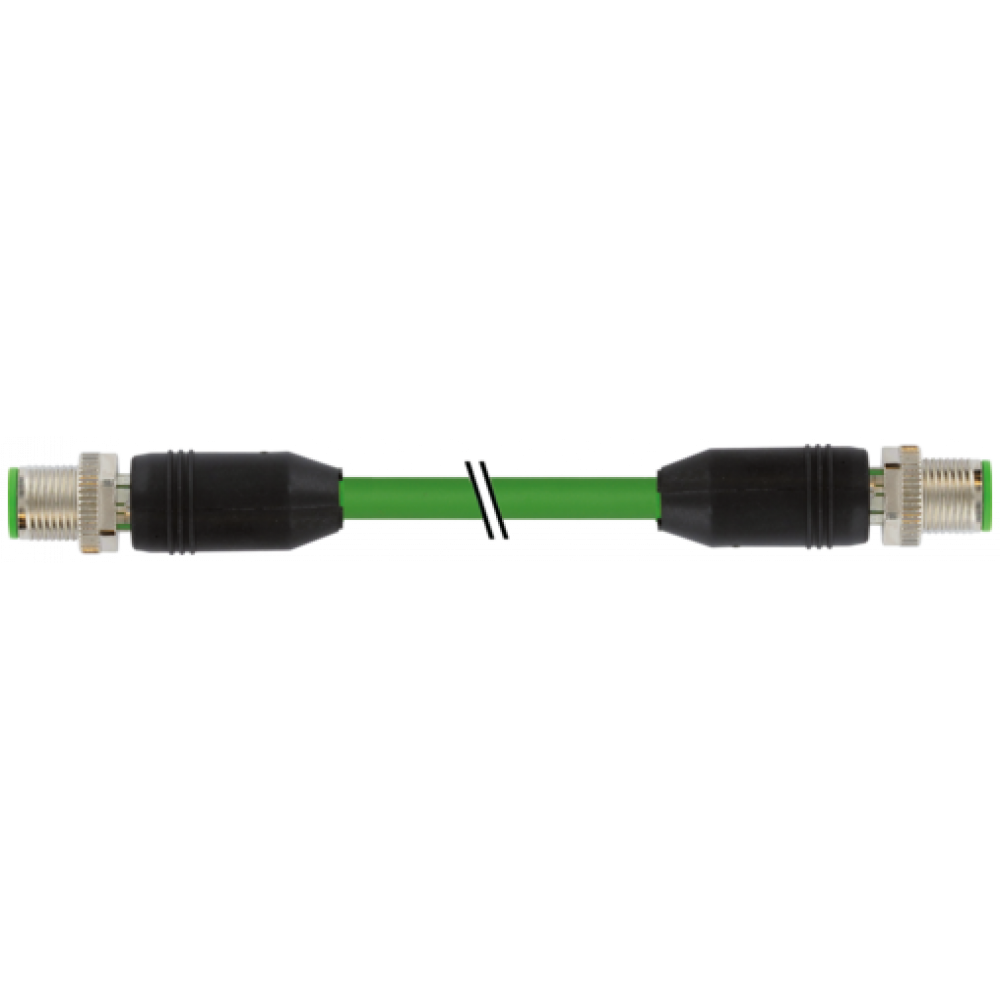

7000-44511-6592500 M12 male 0° / M12 male 0° D-cod. shielded
PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 25m
Kód produktu od výrobcu: 7000-44511-6592500Kód EXIM-TECH 7000-44511-6592500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 210.17€ (258.51€ ) |
| 10+ | 208.69€ (250.43€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Transmission properties with channel transmission up to 100 m
Ethernet CAT5e
Cable is approved for 600 V

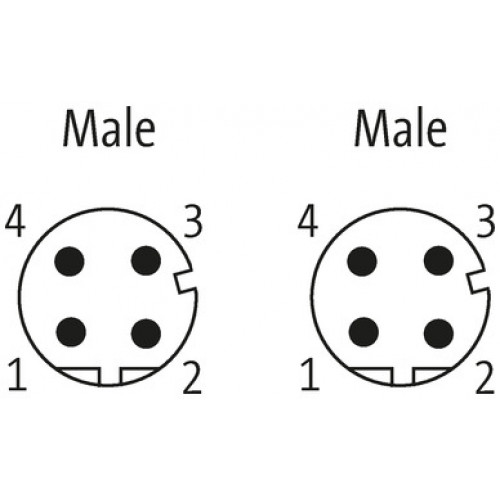

Male straight – male straight
M12 – M12, 4-pole
D-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Ethernet CAT5e
Cable is approved for 600 V
Male straight – male straight
M12 – M12, 4-pole
D-coded
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |

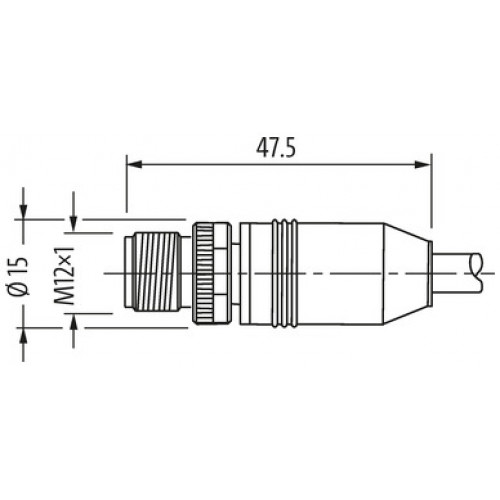

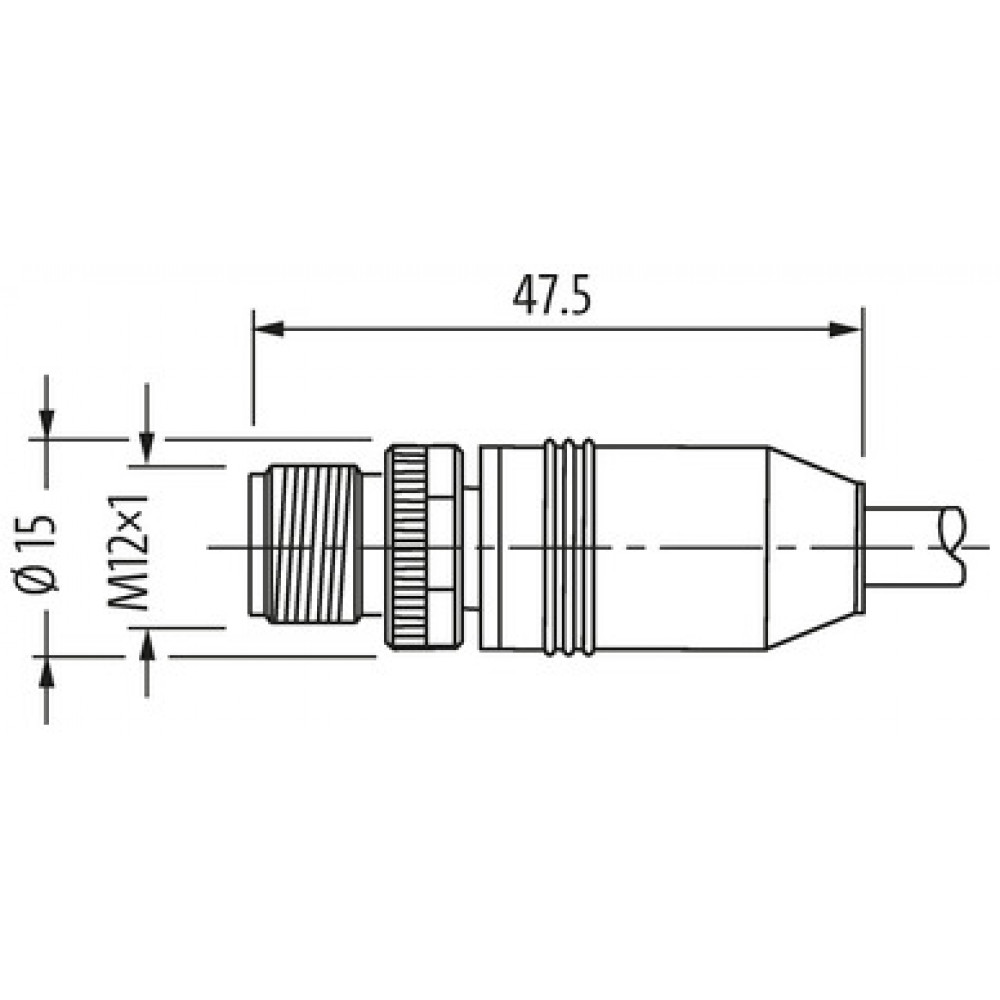

| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | up to 100 Mbit/s full duplex |
| Transfer Parameters | CAT5e, Class D (ISO/IEC 11801 |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | D-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Operating Voltage (only UL Listed) | max. 30 V DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879680868 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 659 |
| Approval (cable) | UL (AWM-Style 20234/10988), CSA; CE |
| Cable Weight [g/m] | 89,1 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 1× 4× AWG22/7 |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PE |
| Wire-Ø Incl. Isolation | 1.4 mm ±5% |

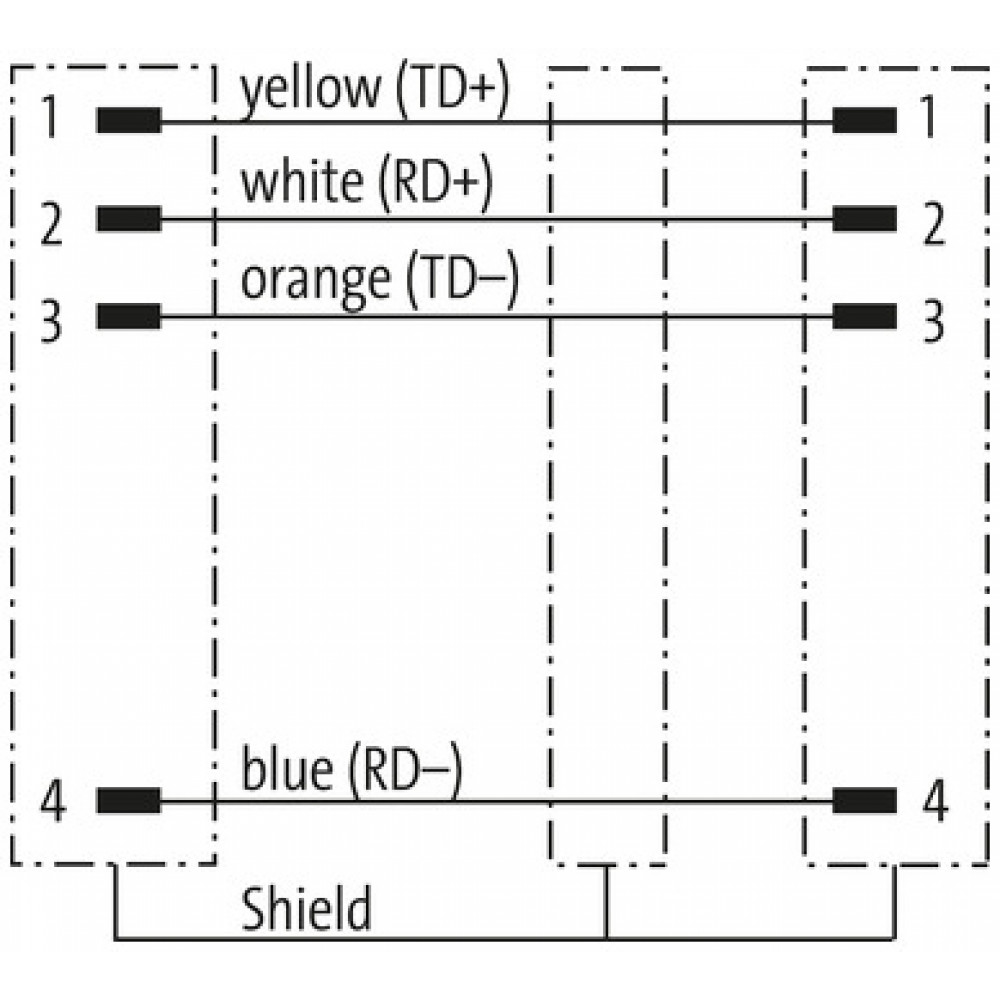

| Color/numbering Of Wires | wh, ye, bl, or |
| Shield | yes |
| Material (jacket) | PUR |
| Outer-Ø (jacket) | 7.4 mm ±5% |
| Color (jacket) | green |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | 600 V |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 12× outer Ø |
| No. Of Bending Cycles (C-track) | max. 2 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| Optical Shield Cover | min. 85% |
| Thermal Resistance | flame retardant |
| Form | |
| Form | 44511 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
