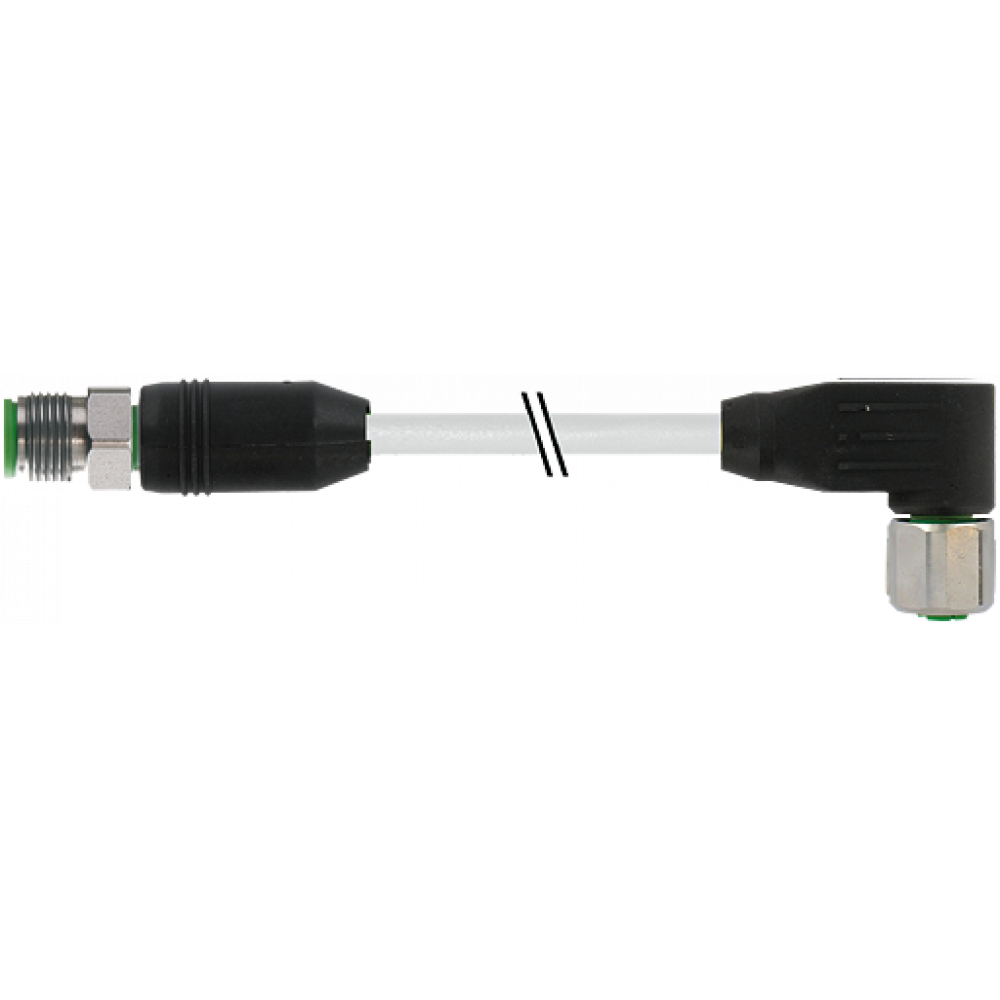

7002-48011-2930060 M12 male 0° / M12 female 90° A-cod. V2A
Kód EXIM-TECH 7002-48011-2930060
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7002-48011-2930060 M12 male 0° / M12 female 90° A-cod. V2A
PVC 8x0.25 gy 0.6m
Kód produktu od výrobcu: 7002-48011-2930060Kód EXIM-TECH 7002-48011-2930060
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 54.97€ (67.61€ ) |
| 10+ | 56.23€ (67.47€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight – female 90°
M12 – M12, 8-pole
Stainless steel 1.4305 (V2A)
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12 – M12, 8-pole
Stainless steel 1.4305 (V2A)
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| No. Of Poles | 8 |
| Operating Voltage | max. 30 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 2 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Coding | A-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Operating Voltage (only UL Listed) | 30 V AC/DC |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879709446 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 8× 0.25 mm² |
| Wire Isolation | PVC (bl, wh, gn, ye, gr, pk, rd, br) |
| Outer Ø | 6.0 mm ±5% |
| Cable Identification | 293 |
| Approval (cable) | CE conform |
| Cable Weight [g/m] | 58,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 78 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 14× 0.15 mm (multi-strand wire class 5) |
| Diameter (core) | 8× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 90 ±3 A |
| Wire-Ø Incl. Isolation | 1.2 mm ±5% |
| Color/numbering Of Wires | br, wh, rd, bl, pk, gr, ye, gn |
| Shield | no |
| Material (jacket) | PVC |
| Shore Hardness (jacket) | 78 ±3 A |
| Outer-Ø (jacket) | 6.0 mm ±5% |
| Color (jacket) | gray |
| Jacket Color | gray |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | 300/300 V AC |
| Test Voltage | 2000 V AC |
| Temperature Range (fixed) | -40...+70 °C |
| Temperature Range (mobile) | -5...+70 °C |
| Bend Radius (moving) | 12× outer Ø |
| Stranding Combination | 8 wires twisted around central filler |
| Thermal Resistance | flame ratardant DIN VDE 0482 Teil 332-1-2 / IEC 60332-1-2 |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant |
| Form | |
| Form | 48011 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Material (contact Surface) | Au |
| Material (gasket) | FKM |
