7002-40001-0131500 M12 male 0° / M12 female 0° A-cod. V2A
Kód EXIM-TECH 7002-40001-0131500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

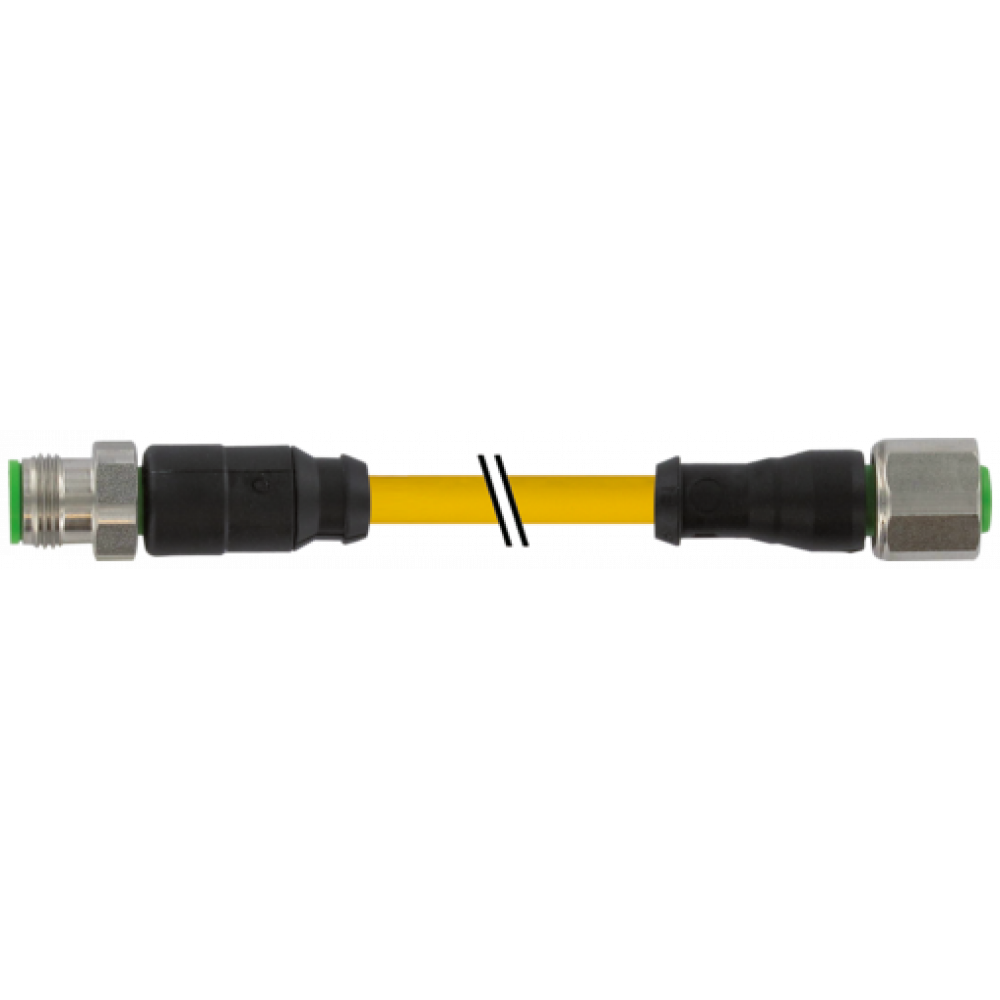

7002-40001-0131500 M12 male 0° / M12 female 0° A-cod. V2A
PVC 3x0.34 ye UL/CSA 15m
Kód produktu od výrobcu: 7002-40001-0131500Kód EXIM-TECH 7002-40001-0131500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 32.24€ (39.66€ ) |
| 10+ | 31.88€ (38.25€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight – female straight
M12 – M12, 3-pole
V2A nut/screw
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12 – M12, 3-pole
V2A nut/screw
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| Operating Voltage | max. 250 V AC/DC |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Operating Voltage (only UL Listed) | max. 30 V AC/DC |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879111898 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| Cable Identification | 013 |
| Cable Type | 1 (PVC) |
| Approval (cable) | cURus (AWM-Style 2464/1731), CE-conform |
| Cable Weight [g/m] | 34,1 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 57 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 19× 0.15 mm (multi-strand wire class 5) |
| Diameter (core) | 3× 0.34 mm² |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 45 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl |
| Shield | no |
| Material (jacket) | PVC |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 4.6 mm ±5% |
| Color (jacket) | yellow |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | UL 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Stranding Combination | 3 wires twisted |
| Thermal Resistance | flammwidrig nach UL 1581 VW1 / CSA FT1 / IEC 60332-1-2 |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Form | |
| Form | 40001 |
