7002-53001-3010600 M12 male 0° / M12 female 0° A-cod. V2A
Kód EXIM-TECH 7002-53001-3010600
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7002-53001-3010600 M12 male 0° / M12 female 0° A-cod. V2A
PUR 12x0.25 gy UL/CSA+drag ch. 6m
Kód produktu od výrobcu: 7002-53001-3010600Kód EXIM-TECH 7002-53001-3010600
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 112.55€ (138.44€ ) |
| 10+ | 113.98€ (136.78€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight – female straight
M12 – M12
12-pole
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Stainless steel 1.4305 (V2A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12 – M12
12-pole
Art-No. 7005 - M12 Lite - (plastic hexagonal screw) on request
Stainless steel 1.4305 (V2A)
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | max. 30 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 1.5 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP66K, IP67 inserted and tightened (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Locking Material | Stainless steel 1.4305 (V2A) |
| Coding | A-coded |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879654029 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 12× 0.25 mm² |

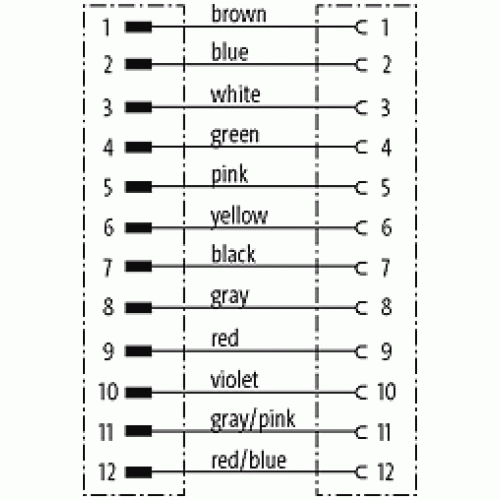

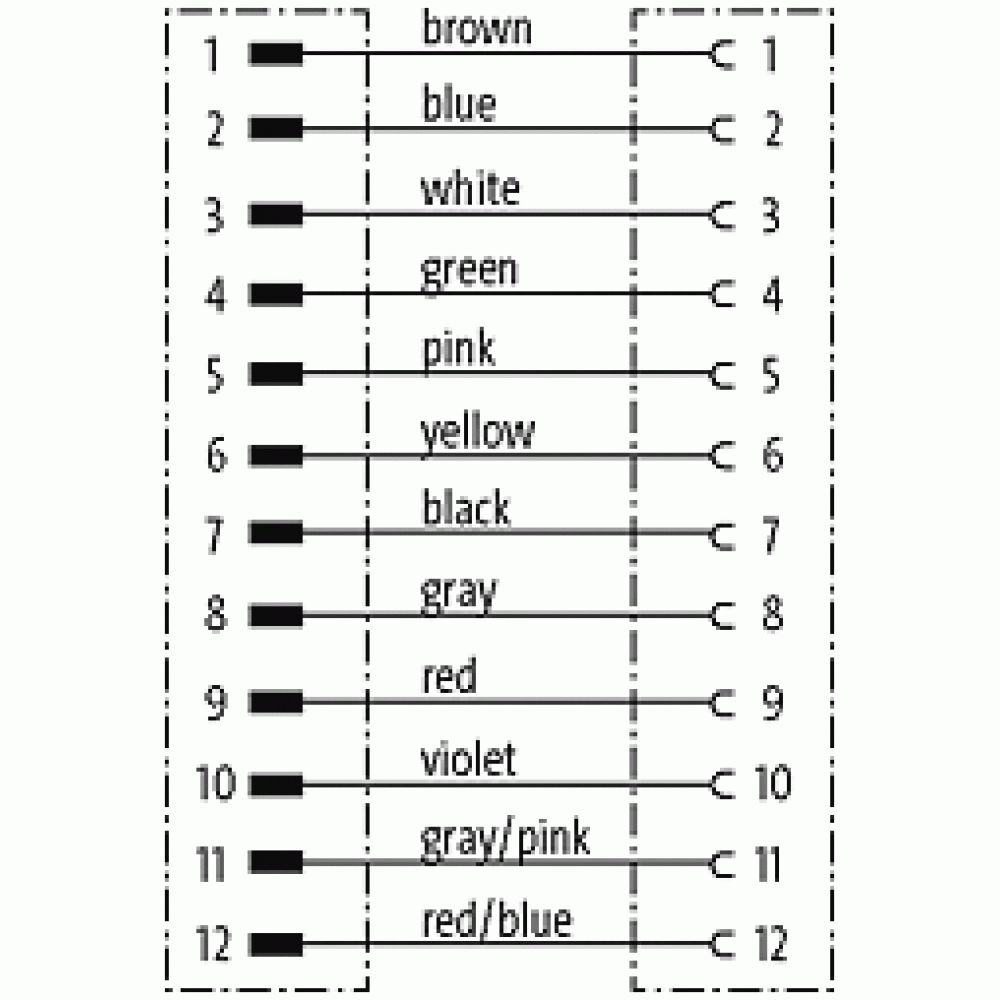

| Wire Isolation | PP (br, bl, wh, gn, pk, ye, bk, gr, rd, vi, grpk, rdbl) |
| C-track Properties | 3 Mio. |
| Outer Ø | 6.9 mm ±5% |
| Cable Identification | 301 |
| Approval (cable) | UL (AWM-Style 20233/10978), CSA approbation; CE |
| Cable Weight [g/m] | 69,30 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 76 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 32× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 12× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 50 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, rd, gr, bk, ye, pk, gn, wh, bl, rdbl, grpk, vi |
| Shield | no |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 6.9 mm ±5% |
| Color (jacket) | gray |
| Jacket Color | gray |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (VDE 0472 Teil 803 Test B) |
| Nominal Voltage | 300 V |
| Test Voltage | 1500 V |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -20...+80 °C |
| Bend Radius (fixed) | 10× outer Ø |
| Bend Radius (moving) | 15× outer Ø |
| No. Of Bending Cycles (C-track) | max. 3 Mio. (25 °C) |
| Travel Speed (C-track) | max. 2 m/s |
| Acceleration (C-track) | max. 10 m/s² |
| Stranding Combination | Twisted wires rdbl, grpk and vi, over it all other wires are twisted |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Traversing Distance (C-track) | max. 5 m (horizontal) |
| Form | |
| Form | 53001 |
| General data | |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
