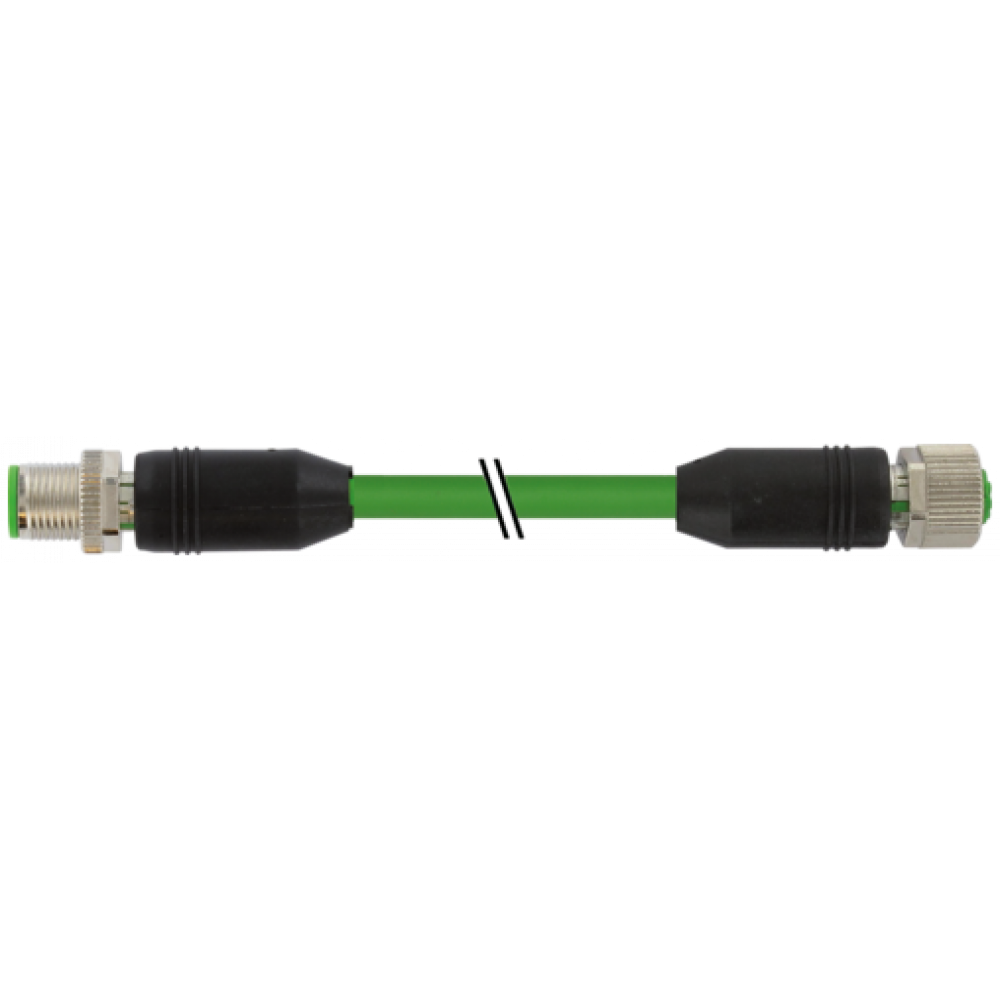

7000-SS611-8810150 M12 male 0° / M12 female 0° Y-cod. shielded
Kód EXIM-TECH 7000-SS611-8810150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Male straight – female straight
M12 – M12, 8-pole
partly used
shielded
without cable sleeves
Ethernet CAT5
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
7000-SS611-8810150 M12 male 0° / M12 female 0° Y-cod. shielded
PVC AWG24+22 shielded gn UL/CSA+drag ch. 1.5m
Kód produktu od výrobcu: 7000-SS611-8810150Kód EXIM-TECH 7000-SS611-8810150
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 116.42€ (143.20€ ) |
| 10+ | 118.85€ (142.62€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight – female straight
M12 – M12, 8-pole
partly used
shielded
without cable sleeves
Ethernet CAT5
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | max. 30 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | 0.5 A (Data), 6 A (Power) |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Transfer Rate | up to 100 Mbit/s full duplex |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | Y-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879558112 |
| EClass | 27061801 |
| Packaging Unit | 1.000 |
| Cables | |
| No./diameter Of Wires | 2× 2× AWG24 + 1× 2× AWG22 |
| Wire Isolation | PE (gnye, pkbl, rdbk) |
| C-track Properties | 0.1 Mio. |
| Outer Ø | 6.9 mm ±5% |
| Cable Number | 881 |
| Shield | yes |
| Material (jacket) | PVC (UL/CSA) |
| Jacket Color | green |
| Temperature Range (fixed) | -20...+70 °C |
| Temperature Range (mobile) | -5...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 20× outer Ø |
| Torsion Stress | ±30°/m |
| Form | |
| Form | SS611 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Material (gasket) | FKM |
