7080-40485-R310100 M12 male 0° / M12 female 0° A-cod. shielded
Kód EXIM-TECH 7080-40485-R310100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7080-40485-R310100 M12 male 0° / M12 female 0° A-cod. shielded
RADOX EM 104 2x0.75 shielded bk 1m
Kód produktu od výrobcu: 7080-40485-R310100Kód EXIM-TECH 7080-40485-R310100
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 34.24€ (42.11€ ) |
| 10+ | 34.8€ (41.76€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
AS-Interface
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Transmission properties with channel transmission up to 100 m

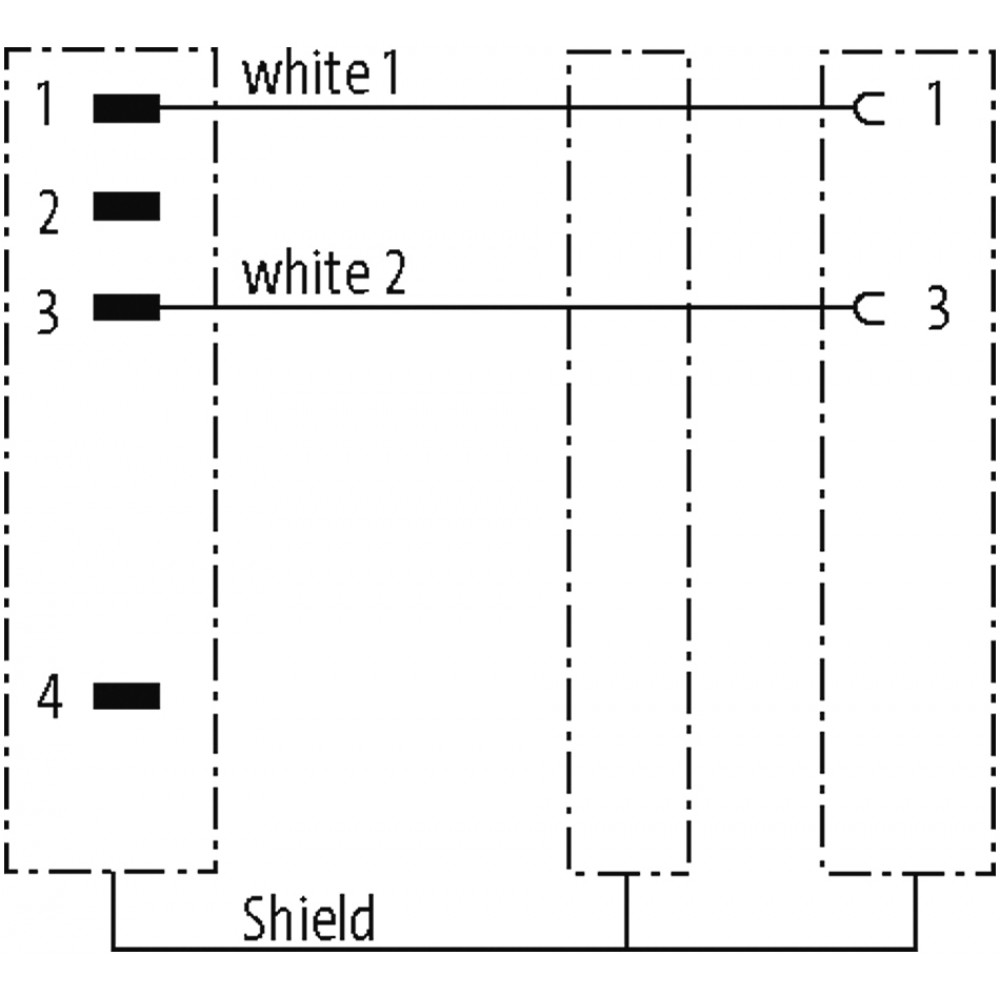

Male straight – female straight
shielded

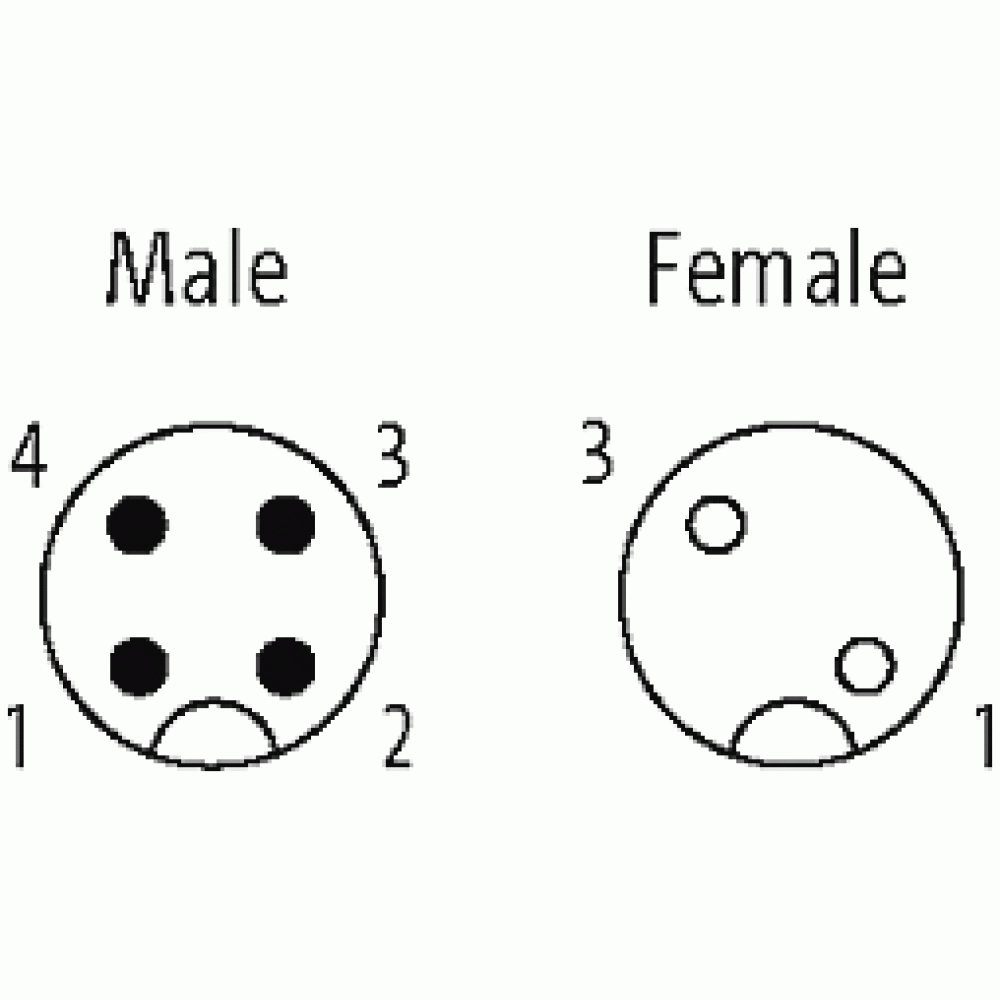

Male M12
4-pole
2-pole used
Female M12
2-pole
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
Transmission properties with channel transmission up to 100 m
Male straight – female straight
shielded
Male M12
4-pole
2-pole used
Female M12
2-pole
Plastic housings with good resistance against chemicals and oils.
| Technical Data | |
| Operating Voltage | max. 60 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 0.8 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879720199 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| Cable Identification | R31 |
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable Weight [g/m] | 55,00 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 26 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.23 mm |
| Construction (core) | 19× 0.23 mm |
| Diameter (core) | 2× 0.75 mm² |
| AWG | similar to AWG 18 |
| Material (wire Isolation) | Radox EI 303 |
| Wire-Ø Incl. Isolation | 1.62 mm ±5% |
| Color/numbering Of Wires | wh (bk num) |
| Shield | yes |
| Material (jacket) | Radox EM 104 |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Nominal Voltage | 600/1000 V AC |
| Test Voltage | 3500 V AC |
| Current Load Capacity | according to DIN VDE 0298-4 |
| Temperature Range (fixed) | -50...+120 °C |
| Temperature Range (mobile) | -25...+90 °C |
| Bend Radius (fixed) | 3× outer-Ø |
| Bend Radius (moving) | 4× outer-Ø |
| Stranding Combination | 2 wires twisted |
| Form | |
| Form | 40485 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
