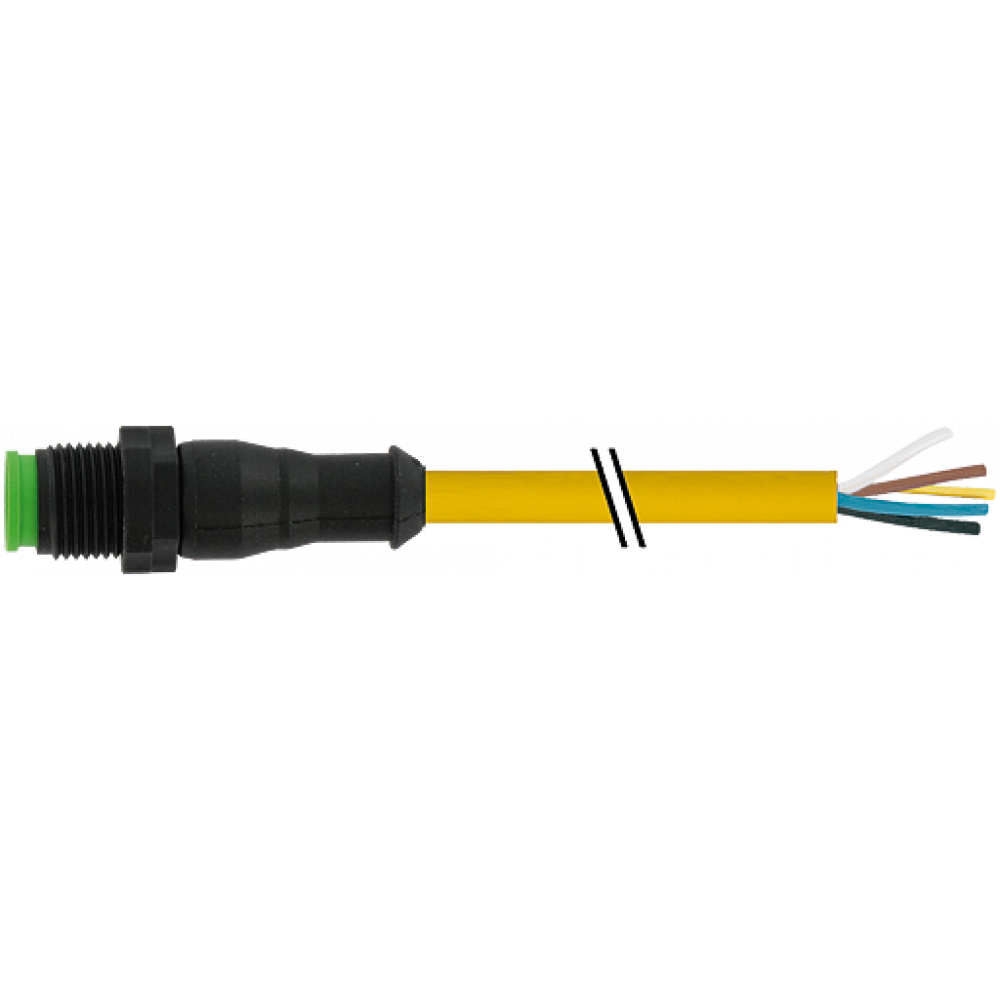

7005-12041-0550400 M12 male 0° A-cod. with cable Lite
Kód EXIM-TECH 7005-12041-0550400
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7005-12041-0550400 M12 male 0° A-cod. with cable Lite
PUR 5x0.34 ye UL/CSA+robot+drag ch. 4m
Kód produktu od výrobcu: 7005-12041-0550400Kód EXIM-TECH 7005-12041-0550400
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 23.42€ (28.80€ ) |
| 10+ | 23.48€ (28.17€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Male straight
M12, 5-pole
7005 - plastic hexagonal screw (M12 Lite)
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12, 5-pole
7005 - plastic hexagonal screw (M12 Lite)
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| No. Of Poles | 5 |
| Operating Voltage | max. 125 V AC/DC |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Polyamide |
| Coding | A-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879365925 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 5× 0.34 mm² |
| Wire Isolation | PP (br, wh, bl, bk, gnye) |
| C-track Properties | 10 Mio. |
| Outer Ø | 5.0 mm ±5% |
| Cable Identification | 055 |
| Cable Type | 5 (PUR schweißfunkenbeständig) |
| Approval (cable) | cURus (AWM-Style 20549/10493); CE conform |
| Cable Weight [g/m] | 41,80 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 60 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.1 mm |
| Construction (core) | 42× 0.1 mm (multi-strand wire class 6) |
| Diameter (core) | 5× 0.34 mm² |
| AWG | similar to AWG 22 |
| Material (wire Isolation) | PP |
| Material Property (wire Isolation) | CFC-, halogen-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 74 ±3 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl, wh, gnye longitudinally striped |
| Shield | no |
| Shore Hardness (jacket) | 58 ±3 D |
| Outer-Ø (jacket) | 5.0 mm ±5% |
| Color (jacket) | yellow |
| Jacket Color | yellow |
| Chemical Resistance | good resistance to oil, gasoline and chemicals (EN 60811-404) |
| Nominal Voltage | 300 V AC |
| Test Voltage | 2500 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| No. Of Bending Cycles (C-track) | max. 10 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 5 m/s² |
| Stranding Combination | 5 wires twisted around central filler |
| Thermal Resistance | flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant |
| Material (jacket) | PUR (UL/CSA), welding spark |
| Material (jacket) | PUR |
| Material Property (jacket) | CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant |
| Traversing Distance (C-track) | max. 5 m (horizontal) |
| Torsion Stress | ±360°/m |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (fixed) | -40...+80 °C, (+90 °C at max. 10 000 operating hours) |
| Temperature Range (mobile) | -25...+80 °C |
| Temperature Range (mobile) | -25...+80 °C, (+90 °C at max. 10 000 operating hours) |
| No. Of Torsion Cycles | max. 1 Mio. (25 °C) |
| Torsion Speed | 35 cycles/min |
| Form | |
| Form | 12041 |
| General data | |
| Mounting Method | inserted, tightened |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Material (contact Surface) | Au |
| Stripping Length (jacket) | 20 mm |
