7080-13181-R121500 M12 female 0° A-cod. with cable shielded
Kód EXIM-TECH 7080-13181-R121500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
7080-13181-R121500 M12 female 0° A-cod. with cable shielded
RADOX EM 104 3x0.5 shielded bk 15m
Kód produktu od výrobcu: 7080-13181-R121500Kód EXIM-TECH 7080-13181-R121500
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 118.68€ (145.97€ ) |
| 10+ | 117.62€ (141.14€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Female straight
M12, 3-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
M12, 3-pole
shielded
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
| Technical Data | |
| Operating Voltage | max. 60 V AC/DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing |
| Protection | IP65 and IP67 when plugged and screwed down (EN 60529) |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M12 (SW13) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Coding | A-coded |
| Suitable For Corrugated Tube (internal Ø) | without |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444290 |
| EAN | 4048879743686 |
| EClass | 27279218 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 3× 0.5 mm² |
| Wire Isolation | Radox EI 303 |
| Outer Ø | 5.3 mm ±5% |
| Cable Identification | R12 |
| Cable Number | R12 |
| Approval (cable) | DIN EN 45545-2, CE conform |
| Cable Weight [g/m] | 49,50 |
| Material (wire) | Cu wire, tin plated |
| Resistor (core) | max. 40.1 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.18 mm |
| Construction (core) | 19× 0.18 mm |
| Diameter (core) | 3× 0.5 mm² |
| AWG | similar to AWG 20 |
| Material (wire Isolation) | Radox EI 303 |
| Wire-Ø Incl. Isolation | 1.42 mm ±5% |

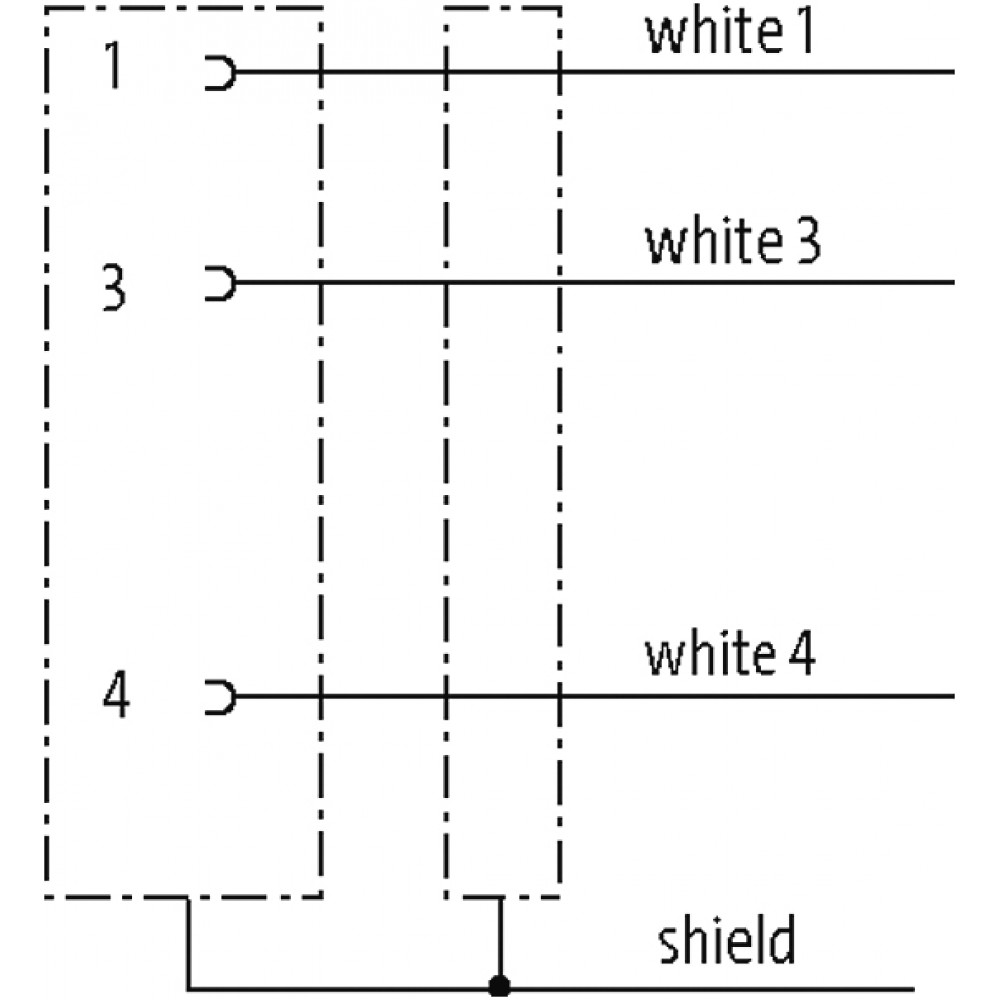

| Color/numbering Of Wires | wh (bk num) |
| Shield | yes |
| Material (jacket) | Radox EM 104 |
| Outer-Ø (jacket) | 5.3 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Nominal Voltage | 600/1000 V AC |
| Test Voltage | 3500 V AC |
| Current Load Capacity | according to DIN VDE 0298-4 |
| Temperature Range (fixed) | -50...+120 °C |
| Temperature Range (mobile) | -25...+90 °C |
| Bend Radius (fixed) | 3× outer-Ø |
| Bend Radius (moving) | 4× outer-Ø |
| Stranding Combination | 3 wires twisted |
| Shield (Type) | Tinned wire mesh |
| Form | |
| Form | 13181 |
| General data | |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-101 (M12) |
| Stripping Length (jacket) | 40 mm |
