7000-99711-7964000 RJ45 0° / RJ45 0° shielded
Kód EXIM-TECH 7000-99711-7964000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF

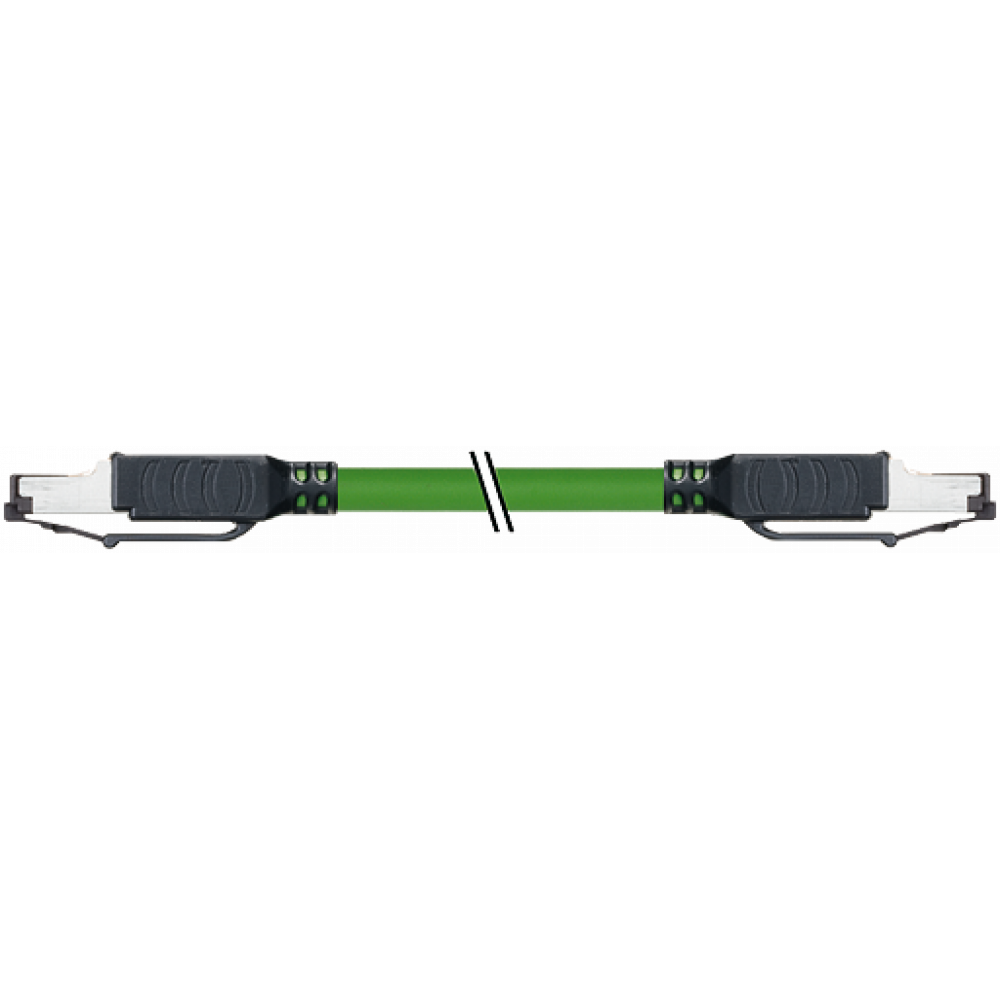

7000-99711-7964000 RJ45 0° / RJ45 0° shielded
PUR 1x4xAWG22 shielded gn UL/CSA+drag ch. 40m
Kód produktu od výrobcu: 7000-99711-7964000Kód EXIM-TECH 7000-99711-7964000
Výrobca: Murrelektronik
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks] | Cena bez DPH (Cena s DPH) |
| 1+ | 284.26€ (349.64€ ) |
| 10+ | 285€ (342.00€ ) |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Ethernet CAT5
Male straight – male straight
RJ45 – RJ45, 8/4-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Male straight – male straight
RJ45 – RJ45, 8/4-pole
shielded
Further cable lengths on request.
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
| Technical Data | |
| Operating Voltage | max. 60 V DC |
| Operating Current Per Contact | max. 2 A |
| Protection | IP20 |
| Transfer Rate | up to 100 Mbit/s full duplex |
| Transfer Parameters | CAT5, Class D (ISO/IEC 11801 |
| Commercial data | |
| Country Of Origin | DE |
| Customs Tariff Number | 85444210 |
| EAN | 4048879388016 |
| EClass | 27061801 |
| Packaging Unit | 1 |
| Cables | |
| No./diameter Of Wires | 2× 2× 0.34 mm² |
| Wire Isolation | PE (wh, ye, bl, or) |
| C-track Properties | 3 Mio. |
| Outer Ø | 6.7 mm ±5% |
| Cable Identification | 796 |
| Approval (cable) | UL (AWM-Style 20233/11602), CSA; CE |
| Cable Weight [g/m] | 69,3 |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 55 Ω/km (20 °C) |
| Diameter (core) | 2× 2× AWG22 |
| Material (wire Isolation) | PE |
| Wire-Ø Incl. Isolation | 1.4 mm ±5% |
| Color/numbering Of Wires | wh, ye, bl, or |
| Shield | yes |
| Outer-Ø (jacket) | 6.7 mm ±5% |
| Color (jacket) | green |
| Jacket Color | green |
| Nominal Voltage | 300 V |
| Temperature Range (fixed) | -40...+80 °C |
| Temperature Range (mobile) | -30...+70 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 12× outer Ø |
| No. Of Bending Cycles (C-track) | max. 3 Mio. (25 °C) |
| Travel Speed (C-track) | max. 3.3 m/s |
| Acceleration (C-track) | max. 2 m/s² |
| Optical Shield Cover | min. 85% |
| Thermal Resistance | flammwidrig nach UL 1581 Section 1060 (FT1), Section 1061 (cable flame), Section 1080 (VW-1) / IEC 60332-1-2 |
| Material (jacket) | PUR (UL/CSA) |
| Material (jacket) | PUR |
| Traversing Distance (C-track) | max. 5 m (horizontal) |
| Form | |
| Form | 99711 |
| General data | |
| Temperature Range | -20...+60 °C, depending on cable quality |
