80892 M8 female 0° A-cod. with cable
Kód EXIM-TECH 80892(7000-08061-6110300)
Výrobca: Fraser Anti-Static Techniques, Ltd.
Dostupnosť: V externom sklade
Dokumentácia: PDF

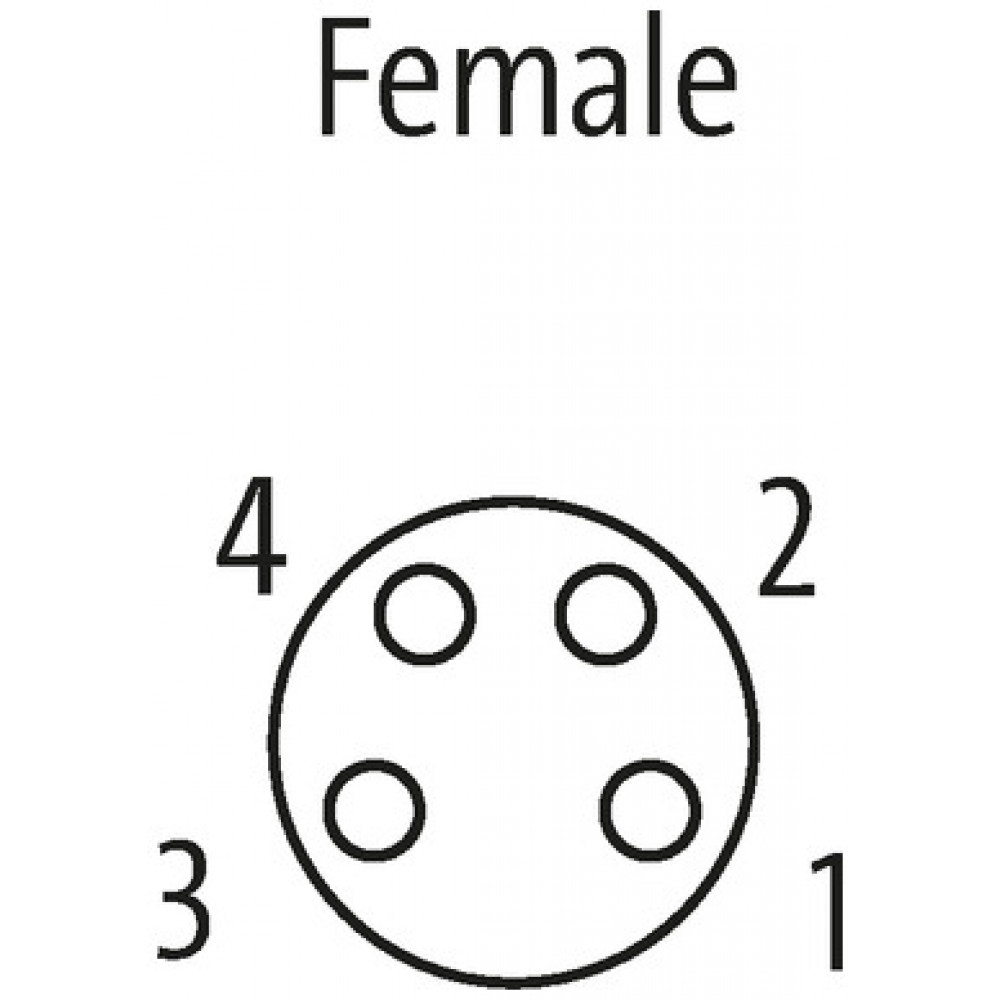

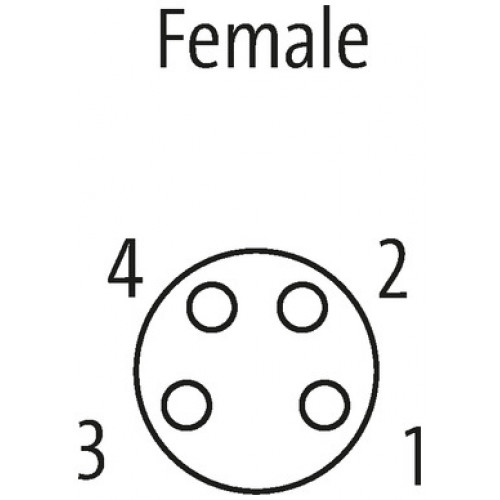

Female straight
M8, 4-pole
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
80892 M8 female 0° A-cod. with cable
PVC 4x0.25 bk UL/CSA 3m
Kód produktu od výrobcu: 80892(7000-08061-6110300)Kód EXIM-TECH 80892(7000-08061-6110300)
Výrobca: Fraser Anti-Static Techniques, Ltd.
Dostupnosť: V externom sklade
Dokumentácia: PDF
Cenové úrovne
| Množstvo[ks]: ] | Cena bez DPH (Cena s DPH) |
| 1+ | Na dopyt |
| 10+ | Na dopyt |
| 20+ | Na dopyt |
* Všetky uvedené ceny sú bez DPH (s DPH) a nie je v nich zahrnutá cena dopravy. Doprava bude pripočítaná k objednávke. Informácie o cene dopravy nájdete v sekcii "Doprava a platba". Podrobné informácie o špeciálnych ponukách sú dostupné v „Akcie“.
Pridaj k objednávke
Female straight
M8, 4-pole
Art-No. 7005 - M8 Lite - (plastic hexagonal screw) on request
with cable sleeves
Plastic housings with good resistance against chemicals and oils.
The resistance to aggressive media should be individually tested for your application. Further details on request.
Further cable lengths on request.
* only for products with UL/CSA approved cable
| Technical Data | |
| No. Of Poles | 4 |
| Operating Voltage | max. 50 V AC/60 V DC |
| Material | PUR |
| Operating Current Per Contact | max. 4 A |
| Locking Of Ports | Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing |
| Protection | IP65, IP66K, IP67 inserted and tightened (EN 60529) |
| LED Display | no |
| Material Group | IEC 60664-1, category I |
| Compression Gland | M8 (SW9) |
| Rated Surge Voltage | 1.5 kV |
| Locking Material | Zinc die casting, matte nickel plated |
| Suitable For Corrugated Tube (internal Ø) | 6.5 mm |
| Operating Voltage (only UL Listed) | 30 V AC/DC |
| Commercial data | |
| Country Of Origin | CZ |
| Customs Tariff Number | 85444290 |
| EAN | 4048879229517 |
| EClass | 27279218 |
| Packaging Unit | 1.000 |
| Cables | |
| No./diameter Of Wires | 4× 0.25 mm² |
| Wire Isolation | PVC (br, wh, bl, bk) |
| Outer Ø | 4.8 mm ±5% |
| Cable Identification | 611 |
| Cable Type | 1 (PVC) |
| Approval (cable) | UL (AWM-Style 2464/1731), CSA |
| Cable Weight [g/m] | 34,76 g |
| Material (wire) | Cu wire, bare |
| Resistor (core) | max. 79 Ω/km (20 °C) |
| Single Wire Ø (core) | 0.15 mm |
| Construction (core) | 14× 0.15 mm (multi-strand wire class 5) |
| Diameter (core) | 4× 0.25 mm² |
| AWG | similar to AWG 24 |
| Material (wire Isolation) | PVC |
| Material Property (wire Isolation) | CFC-, cadmium-, silicone- and lead-free |
| Shore Hardness (wire Isolation) | 45 ±5 D |
| Wire-Ø Incl. Isolation | 1.25 mm ±5% |
| Color/numbering Of Wires | br, bk, bl, wh |
| Shield | no |
| Shore Hardness (jacket) | 85 ±5 A |
| Outer-Ø (jacket) | 4.8 mm ±5% |
| Color (jacket) | black |
| Jacket Color | black |
| Chemical Resistance | good resistance to oil, gasoline and chemicals |
| Nominal Voltage | UL 300 V AC |
| Test Voltage | 2000 V AC |
| Current Load Capacity | to DIN VDE 0298-4 |
| Temperature Range (fixed) | -30...+80 °C |
| Temperature Range (mobile) | -5...+80 °C |
| Bend Radius (fixed) | 5× outer Ø |
| Bend Radius (moving) | 10× outer Ø |
| Stranding Combination | 4 wires twisted |
| Thermal Resistance | flame retardant UL 1581 VW1 / CSA FT1 |
| Material (jacket) | PVC |
| Material (jacket) | PVC (UL/CSA) |
| Material Property (jacket) | CFC-, cadmium-, silicone- and lead-free |
| Form | |
| Form | 08061 |
| General data | |
| Mounting Method | inserted, tightened |
| Temperature Range | -25...+85 °C, depending on cable quality |
| Material (contact) | Copper alloy |
| Pollution Degree | 3 |
| Standards | DIN EN 61076-2-104 (M8) |
| Material (contact Surface) | Au |
| Stripping Length (jacket) | 20 mm |
| Material (gasket) | FKM |
